Tube adapter STL file ⌀ 149.6–99.6 mm (Length: 80 mm) 📦#1095

STL Download STL
Create a new model:
from scratch search for a model
Straight sleeve ⌀149.6 mm to ⌀99.6 mm in STL 3D format. Total length of this coupler is 80 mm. The thickness of the tubes is identical: 4 mm. The larger-diameter tube has a length of 30 mm, the smaller one of 30 mm as well. The two axes of the tubes are offset by 20 mm. The ends have a fillet to ease the connection.
Generation date: 2025-06-16

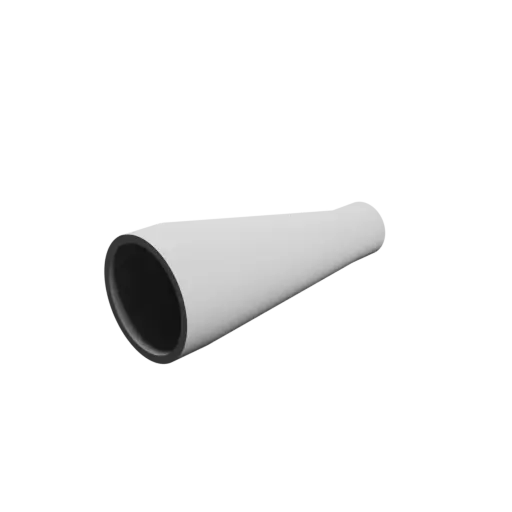

3D Model Tube adapter STL file ⌀ 149.6–99.6 mm (Length: 80 mm)

3D model download

Free
  • inline-tube-adapter-lenA30mm-d_model1095-nb0_dd{id}.stl : 3.4 Mo
STL Mesh quality : not defined
No compliance warranty No compliance warranty
(attribution - commercial use allowed)
Safe download

Values for this model

This model was generated by the Inline tube adapter template, with the following values:
Parameter Value
#1 side A length 30 mm
#2 side A outer diameter 149.6 mm
#3 side A thickness 4 mm
#4 side B length 30 mm
#5 side B outer diameter 99.6 mm
#6 side B thickness 4 mm
#7 transition length 20 mm
#8 axis offset 20 mm
#9 ends fillet fillet on both inside
and outside
Metadata Value
inner diameter (side A) 141.6 mm
inner diameter (side B) 91.6 mm
total length 80 mm
illustration of the parameters
Representation of the parameters

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 side A length lenA
#2 side A outer diameter diA
#3 side A thickness thA
#4 side B length lenB
#5 side B outer diameter diB
#6 side B thickness thB
#7 transition length tra
#8 axis offset ofs
#9 ends fillet fil
