Honeycomb grid / fan guard 3D models
First model: 2025-10-24
Number of 3D models generated: 52
Category: technical parts
Loading...
(model #3022)
Photos of various 3D printed models
This template generates custom honeycomb grille. Beyond choosing the length, width, and mesh size, you can also enable or disable the presence of holes according to a defined center-to-center spacing. In that case, the hole diameter can also be customized.
The dual color option allows you to add an aesthetic touch if desired, with a secondary color band around the perimeter.
The finer the mesh, the higher the protection — but the airflow will be more restricted.

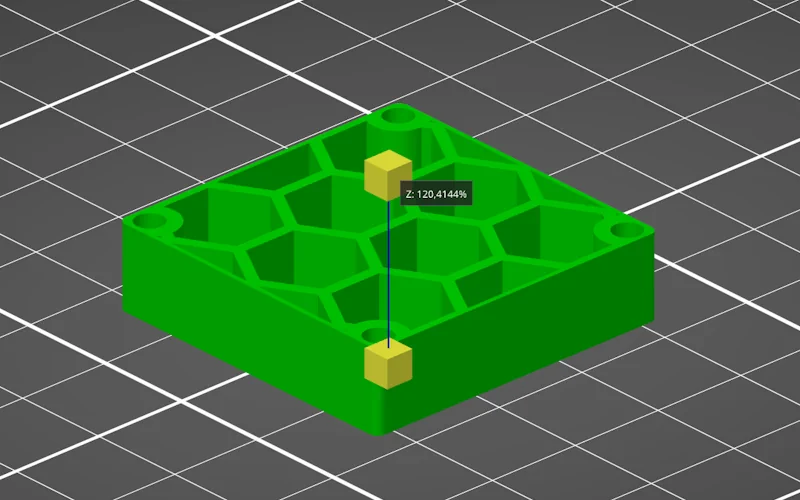

Models are generated with a thickness of 2 mm. You can easily adjust this thickness by scaling the model along the Z axis in your slicer, without altering the part’s design:
If you need to offset the grid from a fan, for example, you can
model a ring.
Keywords: protective grill, fan grill, ventilation grill, air vent, vent plate, fan guard
Search & Generation
Enter at least one field.
If the model doesn’t exist, on-demand generation will be offered to you.
If the model doesn’t exist, on-demand generation will be offered to you.
Additional information
The thickness of the walls forming the honeycomb structure is 1.2 mm.
- When no holes are present, the width of the outer band is 1.5 mm.
- When holes are present, the width of the outer band is equal to half the hole diameter.
When holes are present, the boss (reinforcing collar around the holes) has a diameter equal to twice the hole diameter.
When holes are present, the distance between the center of a hole and the outer edge of the frame is equal to the hole diameter.
The grid thickness is fixed at 2 mm.
The outer rim features a 1 mm rounded edge (fillet) on all four corners.
When the dual color parameter is enabled, the external band has a width equal to 30% of the hole diameter (0.9 mm when no holes are present).

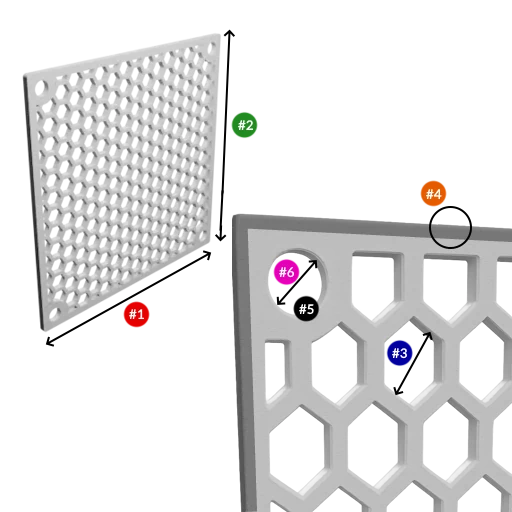

Illustration of the parameters
Categories
Latest models generated
Honeycomb grille STL 3D file, center-to-center: 180x180mm, mesh: 10mm - Ø3mm (📦 #3122)
1 object(s) - format STL
3D square protective honeycomb grid model in STL format. Mounting holes are placed at the four corners (center-to-center 180x180 mm), each with a diameter of Ø3 mm. The overall dimensions reach 186x186 mm, with very open 10 mm cell size for peak ventilation. This grid functions as both a mechanical guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 180 | mm |
| width or center-to-center | 180 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 3 | mm |
Honeycomb grille STL file, center-to-center: 180x180mm, mesh: 8mm - Ø3mm (📦 #3108)
1 object(s) - format STL
Square protective grid model as a STL file. Mounting holes are placed at the four corners (center-to-center 180x180 mm), each with a diameter of Ø3 mm. The overall dimensions reach 186x186 mm, with wide 8 mm cell size to maximize airflow. This grid provides both mechanical protection and airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 180 | mm |
| width or center-to-center | 180 | mm |
| mesh size | 8 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 3 | mm |
Honeycomb grille STL 3D file, center-to-center: 180x180mm, mesh: 4mm - Ø4mm (📦 #3107)
1 object(s) - format STL
3D honeycomb square grid model in STL format. Mounting holes are placed at the four corners (center-to-center 180x180 mm), each with a diameter of Ø4 mm. The overall dimensions reach 188x188 mm, with regular 4 mm cell size for versatile use. This grid provides both mechanical protection and airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 180 | mm |
| width or center-to-center | 180 | mm |
| mesh size | 4 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 4 | mm |
Protective grid STL file, center-to-center: 50x50mm, mesh: 5mm - Ø5mm (📦 #3104)
1 object(s) - format STL
Fan guard model in STL format. Mounting holes are placed at the four corners (center-to-center 50x50 mm), each with a diameter of Ø5 mm. The overall dimensions reach 60x60 mm, with standard 5 mm cell size for balanced airflow and protection. This grid provides both mechanical protection and airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 50 | mm |
| width or center-to-center | 50 | mm |
| mesh size | 5 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 5 | mm |
Honeycomb grid STL 3D file, 100x100mm, mesh: 3mm (📦 #3100)
1 object(s) - format STL
3D square protective honeycomb grid model as a STL file. The overall size is 100x100 mm, with extra fine 3 mm cell size for strong protection. This grid provides both mechanical protection and airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 100 | mm |
| width or center-to-center | 100 | mm |
| mesh size | 3 | mm |
| dual color | no | |
| holes | no |
Honeycomb grille STL 3D file, 210x148mm, mesh: 10mm (📦 #3096)
1 object(s) - format STL
Download this rectangular protective grid file in STL format. The overall size is 210x148 mm, with very large 10 mm cell size for maximum airflow. This grid provides both mechanical protection and airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 210 | mm |
| width or center-to-center | 148 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | no |
Honeycomb grille STL 3D file, center-to-center: 192x81mm, mesh: 8mm - Ø4mm (📦 #3095)
1 object(s) - format STL
3D rectangular protective grid model as a STL file. Mounting holes are placed at the four corners (center-to-center 192x81 mm), each with a diameter of Ø4 mm. The overall dimensions reach 200x89 mm, with large 8 mm cell size for optimal air circulation. This type of grid provides mechanical protection and ventilation.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 192 | mm |
| width or center-to-center | 81 | mm |
| mesh size | 8 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 4 | mm |
Honeycomb grille STL file, center-to-center: 135x135mm, mesh: 5mm - Ø4mm (📦 #3072)
1 object(s) - format STL
Square protective honeycomb grid model in STL format. Mounting holes are placed at the four corners (center-to-center 135x135 mm), each with a diameter of Ø4 mm. The overall dimensions reach 143x143 mm, with standard 5 mm cell size for balanced airflow and protection. This type of grid provides mechanical protection and ventilation.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 135 | mm |
| width or center-to-center | 135 | mm |
| mesh size | 5 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 4 | mm |
Honeycomb grid STL file, 190x170mm, mesh: 10mm (📦 #3055)
1 object(s) - format STL
Download this rectangular honeycomb grid as a STL file. The overall size is 190x170 mm, with very large 10 mm cell size for peak ventilation. This grid provides both mechanical protection and airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 190 | mm |
| width or center-to-center | 170 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | no |
Protective grid STL 3D file, 210x140mm, mesh: 10mm (📦 #3043)
1 object(s) - format STL
3D rectangular protective honeycomb grid model in STL format. The overall size is 210x140 mm, with extra wide 10 mm cell size for maximum airflow. This grid provides both mechanical protection and airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 210 | mm |
| width or center-to-center | 140 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | no |
Honeycomb grille STL file, center-to-center: 105x105mm, mesh: 10mm - Ø4mm (📦 #3041)
1 object(s) - format STL
3D honeycomb square grid model as a STL file. Mounting holes are placed at the four corners (center-to-center 105x105 mm), each with a diameter of Ø4 mm. The overall dimensions reach 113x113 mm, with very open 10 mm cell size for maximum airflow. This grid provides both mechanical protection and airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 105 | mm |
| width or center-to-center | 105 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 4 | mm |
Protective grid STL file, 80x80mm, mesh: 10mm (📦 #3040)
1 object(s) - format STL
Honeycomb protective square grid file in STL format. The overall size is 80x80 mm, with extra wide 10 mm cell size for peak ventilation. This type of grid serves both protection and ventilation roles.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 80 | mm |
| width or center-to-center | 80 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | no |
Honeycomb grid STL 3D file, 160x150mm, mesh: 10mm (📦 #3039)
1 object(s) - format STL
3D rectangular grid model as a STL file. The overall size is 160x150 mm, with very open 10 mm cell size for peak ventilation. This grid functions as both a mechanical guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 160 | mm |
| width or center-to-center | 150 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | no |
Honeycomb grid STL file, center-to-center: 210x140mm, mesh: 3mm - Ø4mm (📦 #3038)
2 object(s) - format STL
Download this honeycomb protective rectangular grid as a STL file. Mounting holes are placed at the four corners (center-to-center 210x140 mm), each with a diameter of Ø4 mm. The overall dimensions reach 218x148 mm, with very fine 3 mm cell size for maximum protection. A secondary color frame emphasizes the border. This grid serves as both a protective guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 210 | mm |
| width or center-to-center | 140 | mm |
| mesh size | 3 | mm |
| dual color | yes | |
| holes | yes | |
| hole diameter | 4 | mm |
Protective grid STL file, 220x220mm, mesh: 3mm (📦 #3037)
2 object(s) - format STL
3D square honeycomb grid model as a STL file. The overall size is 220x220 mm, with fine 3 mm cell size for maximum protection. A secondary color outline accents the contour. This grid acts as a protective guard while allowing airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 220 | mm |
| width or center-to-center | 220 | mm |
| mesh size | 3 | mm |
| dual color | yes | |
| holes | no |
Honeycomb grille STL file, 101x101mm, mesh: 10mm (📦 #3033)
1 object(s) - format STL
Download this square protective grid model in STL format. The overall size is 101x101 mm, with very open 10 mm cell size for maximum airflow. This type of grid serves both protection and ventilation roles.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 101 | mm |
| width or center-to-center | 101 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | no |
Honeycomb grille STL 3D file, center-to-center: 37x37mm, mesh: 5mm - Ø3mm (📦 #3027)
1 object(s) - format STL
Download this 3D honeycomb protective square grid file in STL format. Mounting holes are placed at the four corners (center-to-center 37x37 mm), each with a diameter of Ø3 mm. The overall dimensions reach 43x43 mm, with standard 5 mm cell size for balanced airflow and protection. This grid acts as a protective guard while allowing airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 37 | mm |
| width or center-to-center | 37 | mm |
| mesh size | 5 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 3 | mm |
Honeycomb grid STL file, 200x120mm, mesh: 10mm (📦 #3025)
1 object(s) - format STL
Rectangular grid model as a STL file. The overall size is 200x120 mm, with extra wide 10 mm cell size for peak ventilation. This type of grid provides mechanical protection and ventilation.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 200 | mm |
| width or center-to-center | 120 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | no |
Honeycomb grille STL 3D file, 300x60mm, mesh: 6mm (📦 #3023)
1 object(s) - format STL
Honeycomb rectangular grid model as a STL file. The overall size is 300x60 mm, with open 6 mm cell size for optimal air circulation. This grid serves as both a protective guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 300 | mm |
| width or center-to-center | 60 | mm |
| mesh size | 6 | mm |
| dual color | no | |
| holes | no |
Protective grid STL file, 250x55mm, mesh: 5mm (📦 #3022)
1 object(s) - format STL
Download this 3D rectangular protective grid as a STL file. The overall size is 250x55 mm, with medium 5 mm cell size for versatile use. This grid serves as both a protective guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 250 | mm |
| width or center-to-center | 55 | mm |
| mesh size | 5 | mm |
| dual color | no | |
| holes | no |
Protective grid STL file, center-to-center: 105x105mm, mesh: 4mm - Ø3mm (📦 #3018)
2 object(s) - format STL
Square protective honeycomb grid model in STL format. Mounting holes are placed at the four corners (center-to-center 105x105 mm), each with a diameter of Ø3 mm. The overall dimensions reach 111x111 mm, with regular 4 mm cell size for versatile use. A secondary color frame emphasizes the border. This grid functions as both a mechanical guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 105 | mm |
| width or center-to-center | 105 | mm |
| mesh size | 4 | mm |
| dual color | yes | |
| holes | yes | |
| hole diameter | 3 | mm |
Protective grid STL 3D file, 105x105mm, mesh: 4mm (📦 #3016)
2 object(s) - format STL
Square protective honeycomb grid model in STL format. The overall size is 105x105 mm, with regular 4 mm cell size for versatile use. A secondary color rim highlights the outer edge. This grid acts as a protective guard while allowing airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 105 | mm |
| width or center-to-center | 105 | mm |
| mesh size | 4 | mm |
| dual color | yes | |
| holes | no |
Honeycomb grid STL 3D file, center-to-center: 70x70mm, mesh: 10mm - Ø4mm (📦 #3015)
2 object(s) - format STL
3D square grid model as a STL file. Mounting holes are placed at the four corners (center-to-center 70x70 mm), each with a diameter of Ø4 mm. The overall dimensions reach 78x78 mm, with extra wide 10 mm cell size for maximum airflow. A secondary color frame emphasizes the border. This grid serves as both a protective guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 70 | mm |
| width or center-to-center | 70 | mm |
| mesh size | 10 | mm |
| dual color | yes | |
| holes | yes | |
| hole diameter | 4 | mm |
Honeycomb grille STL file, 220x220mm, mesh: 10mm (📦 #2987)
1 object(s) - format STL
Square grid model as a STL file. The overall size is 220x220 mm, with very open 10 mm cell size for peak ventilation. This grid serves as both a protective guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 220 | mm |
| width or center-to-center | 220 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | no |
Honeycomb grille STL file, center-to-center: 110x110mm, mesh: 5mm - Ø4mm (📦 #2981)
1 object(s) - format STL
Square protective honeycomb grid model in STL format. Mounting holes are placed at the four corners (center-to-center 110x110 mm), each with a diameter of Ø4 mm. The overall dimensions reach 118x118 mm, with medium 5 mm cell size for versatile use. This grid acts as a protective guard while allowing airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 110 | mm |
| width or center-to-center | 110 | mm |
| mesh size | 5 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 4 | mm |
Honeycomb grid STL 3D file, 90x90mm, mesh: 3mm (📦 #2972)
1 object(s) - format STL
3D square honeycomb grid model as a STL file. The overall size is 90x90 mm, with very fine 3 mm cell size for maximum protection. This type of grid provides mechanical protection and ventilation.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 90 | mm |
| width or center-to-center | 90 | mm |
| mesh size | 3 | mm |
| dual color | no | |
| holes | no |
Honeycomb grid STL 3D file, center-to-center: 300x177mm, mesh: 6mm - Ø4mm (📦 #2969)
1 object(s) - format STL
Download this rectangular grid model in STL format. Mounting holes are placed at the four corners (center-to-center 300x177 mm), each with a diameter of Ø4 mm. The overall dimensions reach 308x185 mm, with large 6 mm cell size to enhance ventilation. This type of grid serves both protection and ventilation roles.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 300 | mm |
| width or center-to-center | 177 | mm |
| mesh size | 6 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 4 | mm |
Honeycomb grid STL 3D file, center-to-center: 100x100mm, mesh: 5mm - Ø3mm (📦 #2951)
1 object(s) - format STL
3D square protective honeycomb grid file in STL format. Mounting holes are placed at the four corners (center-to-center 100x100 mm), each with a diameter of Ø3 mm. The overall dimensions reach 106x106 mm, with medium 5 mm cell size for balanced airflow and protection. This type of grid provides mechanical protection and ventilation.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 100 | mm |
| width or center-to-center | 100 | mm |
| mesh size | 5 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 3 | mm |
Honeycomb grille STL 3D file, center-to-center: 200x200mm, mesh: 10mm - Ø5mm (📦 #2938)
1 object(s) - format STL
Square grid file in STL format. Mounting holes are placed at the four corners (center-to-center 200x200 mm), each with a diameter of Ø5 mm. The overall dimensions reach 210x210 mm, with very large 10 mm cell size for maximum airflow. This grid provides both mechanical protection and airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 200 | mm |
| width or center-to-center | 200 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 5 | mm |
Protective grid STL 3D file, center-to-center: 200x110mm, mesh: 6mm - Ø8mm (📦 #2922)
2 object(s) - format STL
Rectangular protective honeycomb grid file in STL format. Mounting holes are placed at the four corners (center-to-center 200x110 mm), each with a diameter of Ø8 mm. The overall dimensions reach 216x126 mm, with open 6 mm cell size to maximize airflow. A secondary color border highlights the perimeter. This grid serves as both a protective guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 200 | mm |
| width or center-to-center | 110 | mm |
| mesh size | 6 | mm |
| dual color | yes | |
| holes | yes | |
| hole diameter | 8 | mm |
Use Cases for Honeycomb Ventilation and Protection Grids
3D-printable honeycomb grids offer both an aesthetic and functional solution for protection, ventilation, and mechanical shielding. Their honeycomb structure provides an excellent balance between rigidity, lightness, and airflow efficiency. Thanks to parametric generation, each grid can be customized with exact dimensions, mesh size, hole diameter, and the option to include or omit a colored border.
A small honeycomb grid with 32 mm spacing is ideal for protecting a compact fan of the same pitch. Larger grids are also possible, such as this large square grid measuring 200 × 200 mm, which offers an optimal open surface to maximize airflow while maintaining excellent structural strength.
For specific projects involving multiple fans arranged in a row for example, a rectangular grid layout can address more complex requirements. These customizable models are suitable not only for fan protection but also for other technical applications, thanks to their stable and reproducible on-demand design.
