U-shaped handle 3D models
First model: 2025-05-06
Number of 3D models generated: 217
Category: accessories
Loading...
(model #868)

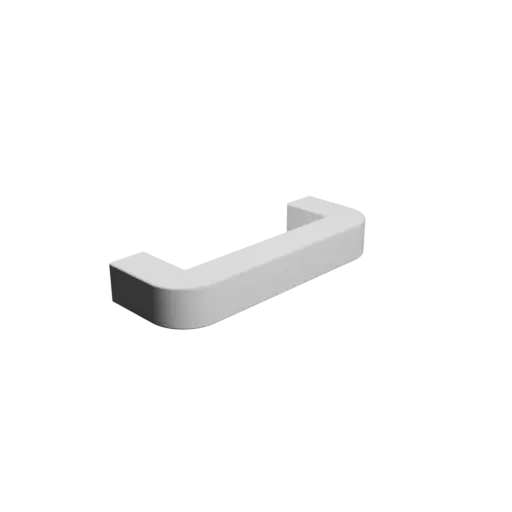

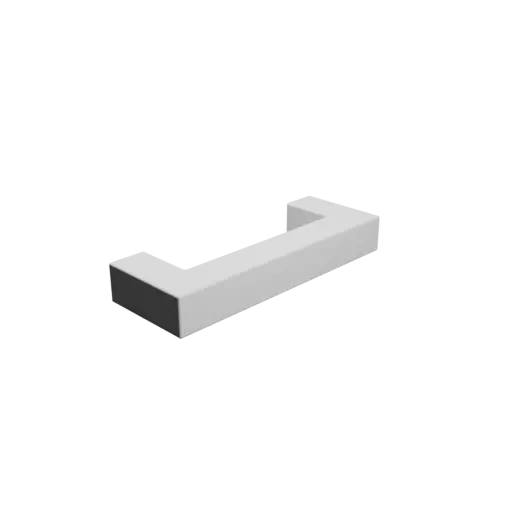

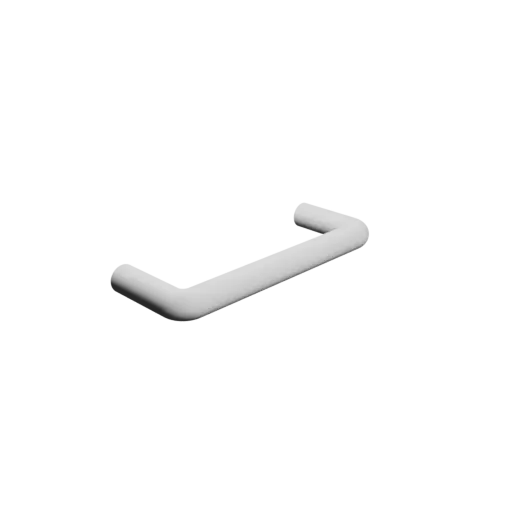

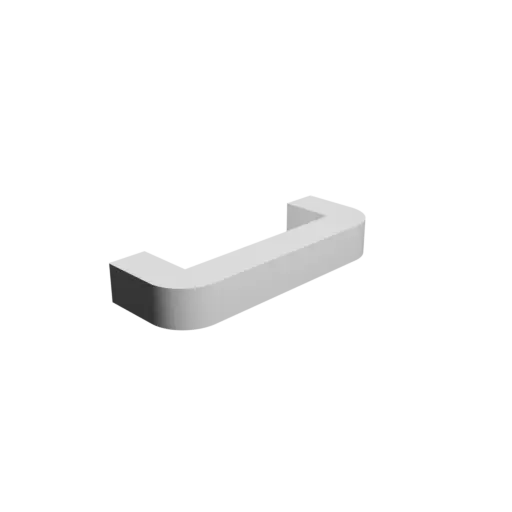

Photos of various 3D printed models
This template produces a simple U-shaped handle.
The parameters vary the length, width, and thickness of the handle, as well as the section shape, transition type, and the diameter of the screw holes.
In the case of a square section, a 1 mm fillet is used to round the corners.
The drilling depth of the holes is fixed: width - thickness.
Keywords: handle, door handle
Search
Additional information
Parameter #4 shape defines the type of section, either square or circular.
Parameter #5 transition determines how the two corners are formed: either perpendicular or rounded.
Parameter #6 fillet, which adds a slight rounding to the edges, is only active if the handle's section is square.
Parameter #7 hole diameter corresponds to the diameter of the holes intended for screwing the handle.
Please note that parameter #2 length does not represent the center-to-center distance of the mounting holes, but rather the total length of the handle. To obtain the center distance, use the formula: length (len) - thickness (thi).
Illustration of the parameters
