Rectangular-to-rectangular duct adapter 3D models

First model: 2025-11-25
Number of 3D models generated: 113
Build this model to your specs

Category: technical parts

gizmo
Example of a 3D model generated using this template
(model #3981)

Photos of various 3D printed models

rectangular-to-rectangular duct adapter
#3876
rectangular-to-rectangular duct adapter
#3644
rectangular-to-rectangular duct adapter
#3872
rectangular-to-rectangular duct adapter
#3738
rectangular-to-rectangular duct adapter
#3870
rectangular-to-rectangular duct adapter
#3771
Keywords: rectangular duct adapter, rectangular sleeve, rectangular duct sleeve, rectangular fitting, rectangular duct fitting

Quick Search & Generation

Enter at least one field.
If the model doesn’t exist, on-demand generation will be offered to you.
name unit Value
#1 side A internal width
20 to 300 – up to 1 decimal place
mm
#2 side A internal height
20 to 300 – up to 1 decimal place
mm
#3 sleeve length on side A
5 to 100 – up to 1 decimal place
mm
#4 side B internal width
20 to 300 – up to 1 decimal place
mm
#5 side B internal height
20 to 300 – up to 1 decimal place
mm
#6 sleeve length on side B
5 to 100 – up to 1 decimal place
mm
#7 thickness
1 to 8 - integer
mm
#8 transition length
20 to 300 – up to 1 decimal place
mm
#9 Y offset
0 to 300 – up to 1 decimal place
mm
#10 Z offset
0 to 300 – up to 1 decimal place
mm
#11 end chamfers - -

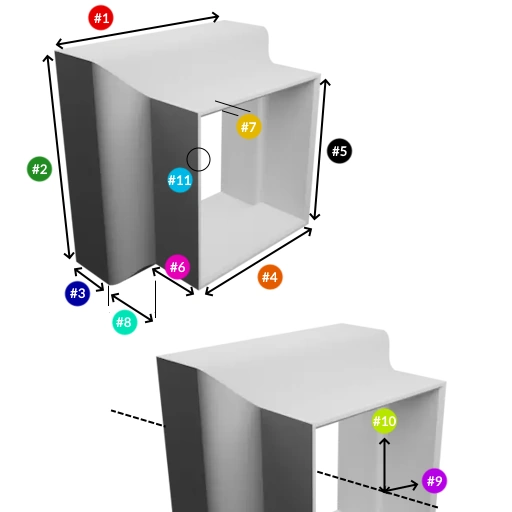

illustration of the parameters rectangular-to-rectangular duct adapter
