Round box with lid

Number of models ready for download: 7

On-demand generation available

Category: accessories

◀ ▶

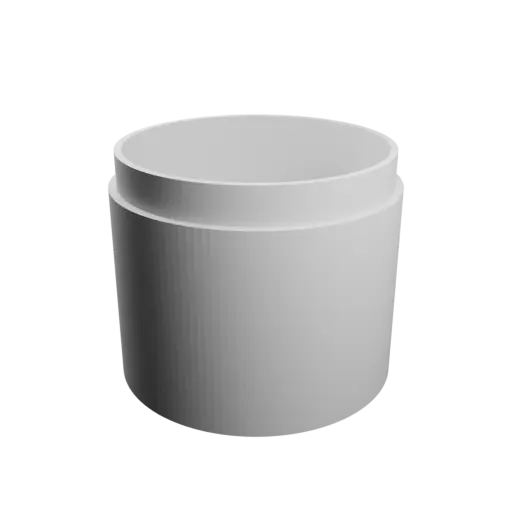

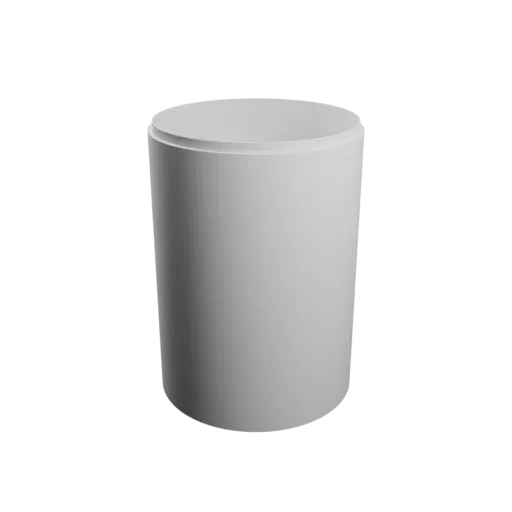

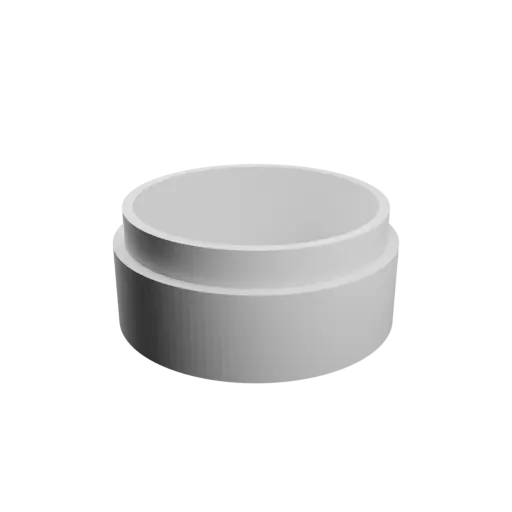

Example of a 3D model generated using this template
(model #1113)

This template generates round boxes with a lid. The total height and diameter of the box are customizable.

An optional fillet at the bottom of the box can be added to make it easier to grab objects.

Finally, an adjustable margin ensures the perfect fit between the box and the lid.

Keywords: round box with lid, cylindrical box with lid, circular box with lid, box with round lid, round storage box, petri dish

Parameters

	name	unit	label
#1	external diameter	mm	dia
#2	total height	mm	hgt
#3	wall thickness	mm	thi
#4	fit clearance	mm	mrg
#5	inner bottom fillet	mm	fil

The wall thickness (parameter #3) concerns the walls, but also the bottom of the box and the lid's plate.

Illustration of the parameters

Model search and on-demand generation

On-demand generation is available for this template. If the model does not exist, on-demand generation will be offered. Feasibility will be assessed on the on-demand generation page.

This form allows you to find existing models based on the parameters of your choice. Some parameters may intentionally not be available for search.

You can leave fields empty; they will be ignored. Also, if the results do not meet your expectations, try another search and leave one or more less important parameter(s) empty.

The results are displayed from the most relevant to the least relevant.

A star indicates that the model exactly matches your search criteria or is very close.

Newest available models for this template

📦 3D model #1116

2 object(s) - format STL

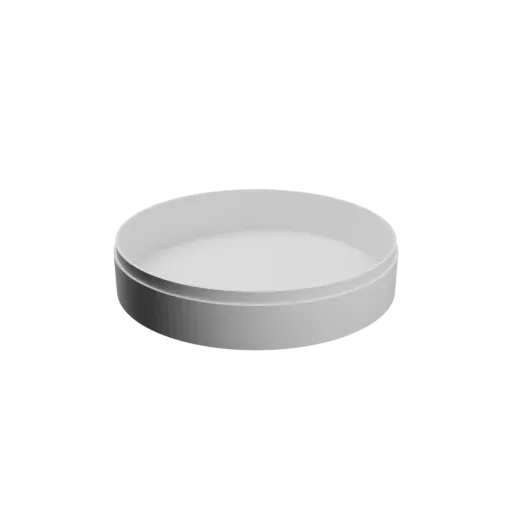

Round box with lid ⌀ 120 mm - Height: 25 mm

Get this round organizing box in STL format. Its diameter is 120 mm and its height is 25 mm. The wall thickness is 2 mm.

Parameter	Value	Unit
external diameter	120	mm
total height	25	mm
wall thickness	2	mm
fit clearance	0.1	mm
inner bottom fillet	0	mm

📦 3D model #1114

2 object(s) - format STL

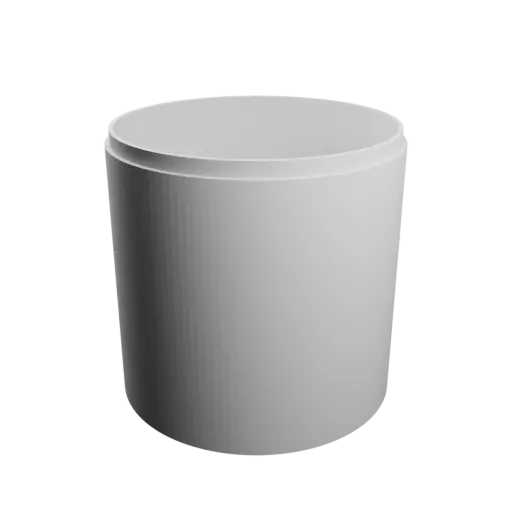

Round box with lid ⌀ 100 mm - Height: 100 mm

Download this cylindrical storage box in 3D STL format. Its diameter is 100 mm and its height is 100 mm. The walls have a thickness of 3 mm. A pronounced fillet located at the bottom of the box makes it easier to grip stored objects inside.

Parameter	Value	Unit
external diameter	100	mm
total height	100	mm
wall thickness	3	mm
fit clearance	0.1	mm
inner bottom fillet	5	mm

📦 3D model #1113

2 object(s) - format STL

Round box with lid ⌀ 40 mm - Height: 35 mm

Download this cylindrical box in STL format. Its diameter is 40 mm and its height is 35 mm. The walls have a thickness of 2 mm.

Parameter	Value	Unit
external diameter	40	mm
total height	35	mm
wall thickness	2	mm
fit clearance	0.1	mm
inner bottom fillet	0	mm

📦 3D model #1112

2 object(s) - format STL

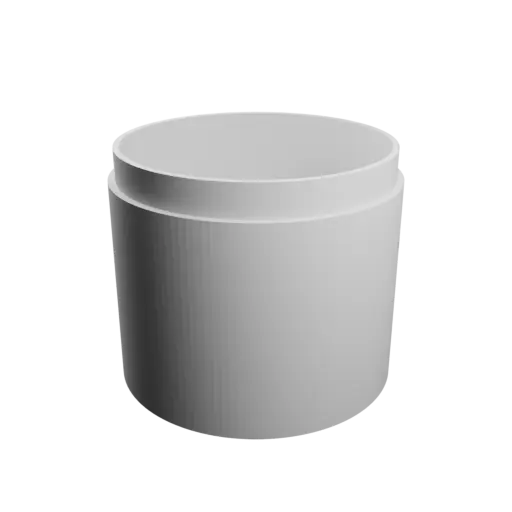

Round box with lid ⌀ 45 mm - Height: 40 mm

Download this cylindrical storage box model in STL format. Its diameter is 45 mm and its height is 40 mm. The wall width is 2 mm.

Parameter	Value	Unit
external diameter	45	mm
total height	40	mm
wall thickness	2	mm
fit clearance	0.1	mm
inner bottom fillet	0	mm

📦 3D model #1111

2 object(s) - format STL

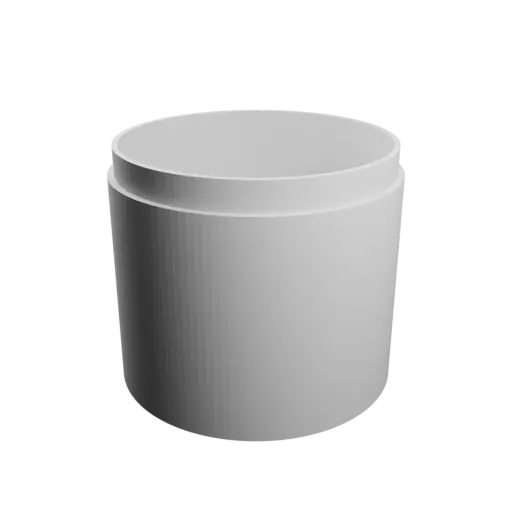

Round box with lid ⌀ 50 mm - Height: 45 mm

Get this cylindrical organizing box in STL format. Its diameter is 50 mm and its total height is 45 mm. The wall thickness is 2 mm.

Parameter	Value	Unit
external diameter	50	mm
total height	45	mm
wall thickness	2	mm
fit clearance	0.1	mm
inner bottom fillet	0	mm

📦 3D model #1110

2 object(s) - format STL

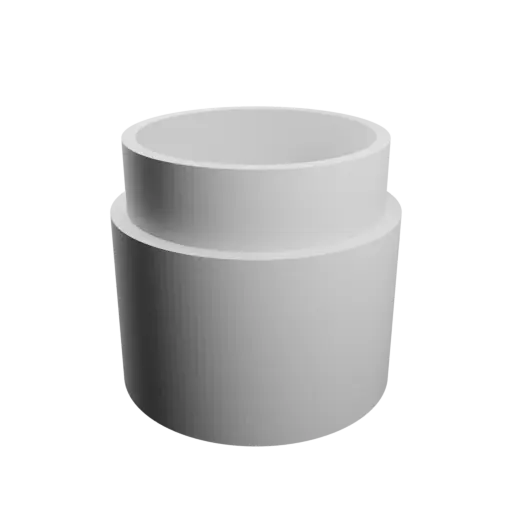

Round box with lid ⌀ 20 mm - Height: 20 mm

Get this round storage box model in STL format. Its diameter is 20 mm and its total height is 20 mm. The wall width is 2 mm. A fillet located at the bottom of the box makes it easier to grip stored objects inside.

Parameter	Value	Unit
external diameter	20	mm
total height	20	mm
wall thickness	2	mm
fit clearance	0.1	mm
inner bottom fillet	1	mm

📦 3D model #1108

2 object(s) - format STL

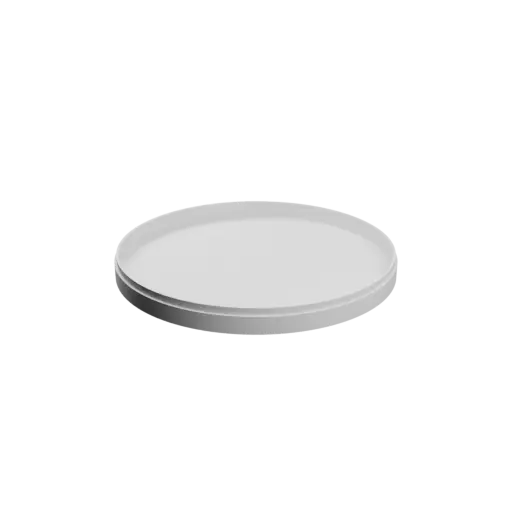

Round box with lid ⌀ 100 mm - Height: 20 mm

Download this cylindrical organizing box model in STL format. Its diameter is 100 mm and its total height is 20 mm. The wall thickness is 3 mm. A pronounced fillet located at the bottom of the box makes it easier to grab objects located inside.

Parameter	Value	Unit
external diameter	100	mm
total height	20	mm
wall thickness	3	mm
fit clearance	0.1	mm
inner bottom fillet	3	mm
