Round box with lid ⌀ 100 mm - Height: 20 mm 📦#1108

2 object(s) STL

Download this cylindrical organizing box model in STL format. Its diameter is 100 mm and its total height is 20 mm. The wall thickness is 3 mm. A pronounced fillet located at the bottom of the box makes it easier to grab objects located inside.

◀ ▶

3D Model Round box with lid ⌀ 100 mm - Height: 20 mm

object #0

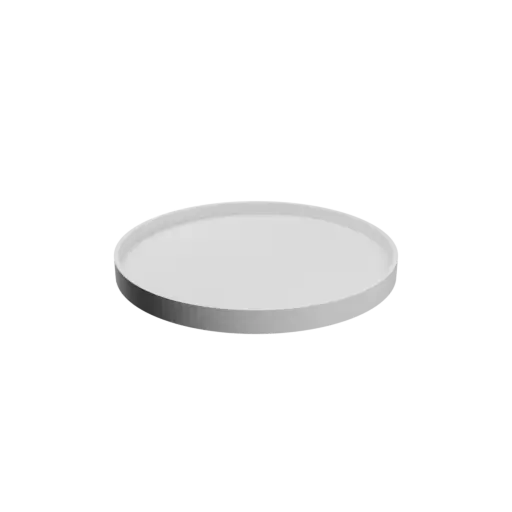

object #1

3D model download

3D file(s) name:

round-box-with-lid-dia100-hgt20-thi3mm-mrg0.1mm-fil3mm_model1108-nb0_dd{id}.stl
round-box-with-lid-dia100-hgt20-thi3mm-mrg0.1mm-fil3mm_model1108-nb1_dd{id}.stl

Download format: zip

License: CC BY - Creative commons

(attribution - commercial use allowed)

Free download

Values for this model

	Parameter	Value	Unit	Label
#1	external diameter	100	mm	dia
#2	total height	20	mm	hgt
#3	wall thickness	3	mm	thi
#4	fit clearance	0.1	mm	mrg
#5	inner bottom fillet	3	mm	fil

Representation of the parameters

Notes:

The wall thickness (parameter #3) concerns the walls, but also the bottom of the box and the lid's plate.
