Oval duct transition fitting / hose-shaped reducer 3D models

First model: 2025-12-03

Number of 3D models generated: 129

Category: technical parts

Loading...

Photos of various 3D printed models

This template generates oval duct adapters, similar to hose-like connectors.

Depending on whether you print the fitting in a rigid material (PLA, PETG, ABS, ASA) or a flexible one (TPU, TPC), you’ll end up with different possible uses.

With more than ten parameters — including offsets along the Y and Z axes — this template can accommodate a wide range of situations. By setting the width just slightly greater than the height (example: width = 90.1, height = 90), you can create a near-circular tube on one side or both sides of the adapter.

You can also add internal or external chamfers to make assembly easier.

Most models print without supports.

Show more Show less

Keywords: oval transition fitting, oval duct fitting, oval adapter, oval duct adapter, oval transition, oval reducer, oval coupling, oval transition coupling, oval joint, oval end fitting, oval connector part, oval hose adapter, oval hose fitting, oval hose piece, ovoid fitting, ovoid adapter

Quick Search & Generation

Enter at least one field.
If the model doesn’t exist, on-demand generation will be offered to you.

	name	unit	Value	Weight
#1	side A internal width 10 to 300 – up to 1 decimal place	mm
#2	side A internal height 10 to 300 – up to 1 decimal place	mm
#3	sleeve length on side A 5 to 100 – up to 1 decimal place	mm
#4	side B internal width 10 to 300 – up to 1 decimal place	mm
#5	side B internal height 10 to 300 – up to 1 decimal place	mm
#6	sleeve length on side B 5 to 100 – up to 1 decimal place	mm
#7	thickness 1 to 8 - integer	mm
#8	transition length 20 to 300 – up to 1 decimal place	mm
#9	Y offset 0 to 300 – up to 1 decimal place	mm
#10	Z offset 0 to 300 – up to 1 decimal place	mm
#11	end chamfers		-	-
			Search

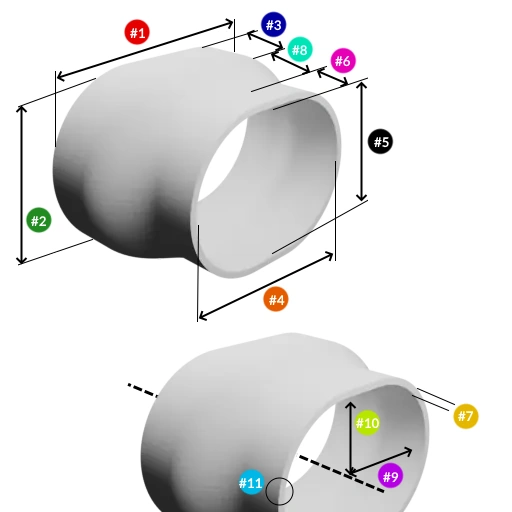

Illustration of the parameters
