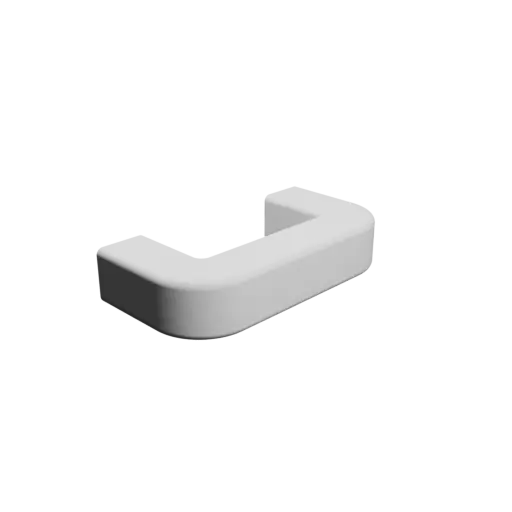

U-shaped handle STL file 20×40×8 mm (Center-to-center 32 mm) 📦#795
Generation date: 2025-05-06
3D model download
Free- u-shaped handle-wid20mm-len40m_model795-nb0_dd{id}.stl : 1 Mo
STL
Mesh quality :
not defined
No compliance warranty
License: CC BY - Creative commons
(attribution - commercial use allowed)
Safe download
Values for this model
This model was generated by the U-shaped handle template, with the following values:
| Parameter | Value | |
|---|---|---|
| #1 | width | 20 mm (≃0.79 in) |
| #2 | length | 40 mm (≃1 9/16 in) |
| #3 | thickness | 8 mm (≃5/16 in) |
| #4 | shape (0:square,1:circle) | 0 |
| #5 | transition (0:right,1:rounded) | 1 |
| #6 | fillet radius | 1 mm (≃0.04 in) |
| #7 | hole diameter | 4 mm (≃0.16 in) |
| Metadata | Value |
|---|---|
| center-to-center | 32 mm (≃1 1/4 in) |
Parameter overview
Labels are used in the naming of the downloaded 3D files.
| Parameter | Label |
|---|---|
| #1 width | wid |
| #2 length | len |
| #3 thickness | thi |
| #4 shape (0:square,1:circle) | sha |
| #5 transition (0:right,1:rounded) | tra |
| #6 fillet radius | fil |
| #7 hole diameter | hod |
