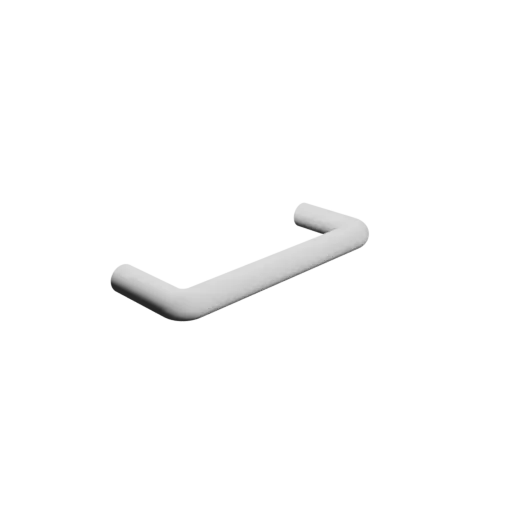

U-shaped handle 50×140×20 mm (Center-to-center 120 mm) 📦#1010
Loading...
◀
▶
3D model download
3D file(s) name:
u-shaped handle-wid50mm-len140mm-thi20mm-sha1-tra1-fil0mm-hod5mm_model1010-nb0_dd{id}.stl
Download format: zip
Values for this model
| Parameter | Value | Unit | Label | |
|---|---|---|---|---|
| #1 | width | 50 | mm | wid |
| #2 | length | 140 | mm | len |
| #3 | thickness | 20 | mm | thi |
| #4 | shape (0:square,1:circle) | 1 | sha | |
| #5 | transition (0:right,1:rounded) | 1 | tra | |
| #6 | fillet radius | 0 | mm | fil |
| #7 | hole diameter | 5 | mm | hod |
Representation of the parameters
Notes:
Parameter #4 shape defines the type of section, either square or circular.
Parameter #5 transition determines how the two corners are formed: either perpendicular or rounded.
Parameter #6 fillet, which adds a slight rounding to the edges, is only active if the handle's section is square.
Parameter #7 hole diameter corresponds to the diameter of the holes intended for screwing the handle.
Please note that parameter #2 length does not represent the center-to-center distance of the mounting holes, but rather the total length of the handle. To obtain the center distance, use the formula: length (len) - thickness (thi).

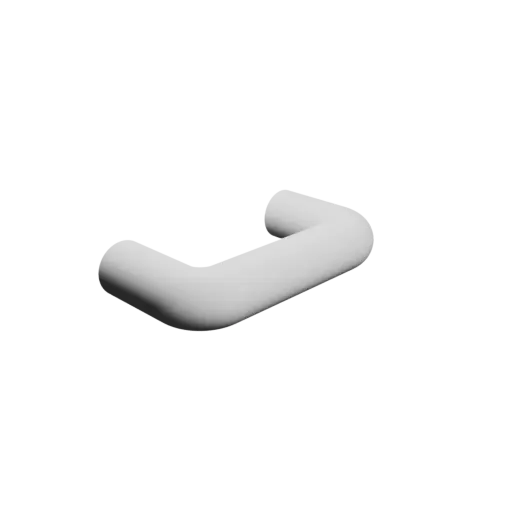

Related 3D models
