Custom Honeycomb grid STL file, center-to-center: 300x300mm, mesh: 10mm - Ø5mm 📦#3574
Generation date: 2025-11-23
3D model download
Free- object #0 honeycomb-grid-loc300mm-woc300_model3574-nb0_dd{id}.stl : 1.4 Mo
- object #1 honeycomb-grid-loc300mm-woc300_model3574-nb1_dd{id}.stl : 51.6 Ko
STL
Mesh quality :
0.001
0.1
No compliance warranty
License: ITE IPU v1.0 - Iteration3d
(Internal and private use, non-commercial – no distribution – no derivatives)
Safe download
Values for this model
This model was generated by the Honeycomb grid / fan guard template, with the following values:
| Parameter | Value | |
|---|---|---|
| #1 | length or center-to-center | 300 mm (≃11 13/16 in) |
| #2 | width or center-to-center | 300 mm (≃11 13/16 in) |
| #3 | mesh size | 10 mm (≃0.39 in) |
| #4 | dual color | yes |
| #5 | holes | yes |
| #6 | hole diameter | 5 mm (≃3/16 in) |
| Metadata | Value |
|---|---|
| total length | 310 mm (≃12.20 in) |
| total width | 310 mm (≃12.20 in) |
| thickness | 2 mm (≃0.08 in) |
Parameter overview
The thickness of the walls forming the honeycomb structure is 1.2 mm.
- When no holes are present, the width of the outer band is 1.5 mm.
- When holes are present, the width of the outer band is equal to half the hole diameter.
When holes are present, the boss (reinforcing collar around the holes) has a diameter equal to twice the hole diameter.
When holes are present, the distance between the center of a hole and the outer edge of the frame is equal to the hole diameter.
The grid thickness is fixed at 2 mm.
The outer rim features a 1 mm rounded edge (fillet) on all four corners.
When the dual color parameter is enabled, the external band has a width equal to 30% of the hole diameter (0.9 mm when no holes are present).
Labels are used in the naming of the downloaded 3D files.
| Parameter | Label |
|---|---|
| #1 length or center-to-center | loc |
| #2 width or center-to-center | woc |
| #3 mesh size | mes |
| #4 dual color | duaC |
| #5 holes | hol |
| #6 hole diameter | hod |
Related 3D models
To search for a model based on your own parameters, go to the template page Honeycomb grid / fan guard
Honeycomb grille STL file, center-to-center: 200x200mm, mesh: 10mm - Ø8mm (📦 #2890)
2 object(s) - format STL
Square protective grid file in STL format. Mounting holes are placed at the four corners (center-to-center 200x200 mm), each with a diameter of Ø8 mm. The overall dimensions reach 216x216 mm, with very open 10 mm cell size for peak ventilation. A secondary color border highlights the perimeter. This grid serves as both a protective guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 200 | mm |
| width or center-to-center | 200 | mm |
| mesh size | 10 | mm |
| dual color | yes | |
| holes | yes | |
| hole diameter | 8 | mm |
Honeycomb grille STL file, center-to-center: 300x240mm, mesh: 4mm - Ø8mm (📦 #3507)
2 object(s) - format STL
Download this 3D rectangular honeycomb grid file in STL format. Mounting holes are placed at the four corners (center-to-center 300x240 mm), each with a diameter of Ø8 mm. The overall dimensions reach 316x256 mm, with medium 4 mm cell size for versatile use. A secondary color rim highlights the outer edge. This grid serves as both a protective guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 300 | mm |
| width or center-to-center | 240 | mm |
| mesh size | 4 | mm |
| dual color | yes | |
| holes | yes | |
| hole diameter | 8 | mm |
Honeycomb grille STL file, center-to-center: 300x300mm, mesh: 3mm - Ø8mm (📦 #2762)
2 object(s) - format STL
Download this 3D square grid model in STL format. Mounting holes are placed at the four corners (center-to-center 300x300 mm), each with a diameter of Ø8 mm. The overall dimensions reach 316x316 mm, with extra fine 3 mm cell size for strong protection. A secondary color rim highlights the outer edge. This grid provides both mechanical protection and airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 300 | mm |
| width or center-to-center | 300 | mm |
| mesh size | 3 | mm |
| dual color | yes | |
| holes | yes | |
| hole diameter | 8 | mm |
Honeycomb grid STL 3D file, center-to-center: 250x250mm, mesh: 10mm - Ø5mm (📦 #3216)
1 object(s) - format STL
Download this fan guard file in STL format. Mounting holes are placed at the four corners (center-to-center 250x250 mm), each with a diameter of Ø5 mm. The overall dimensions reach 260x260 mm, with very large 10 mm cell size for peak ventilation. This grid serves as both a protective guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 250 | mm |
| width or center-to-center | 250 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 5 | mm |
Protective grid STL 3D file, center-to-center: 250x250mm, mesh: 10mm - Ø6mm (📦 #3509)
1 object(s) - format STL
Download this 3D square grid model in STL format. Mounting holes are placed at the four corners (center-to-center 250x250 mm), each with a diameter of Ø6 mm. The overall dimensions reach 262x262 mm, with very large 10 mm cell size for peak ventilation. This grid serves as both a protective guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 250 | mm |
| width or center-to-center | 250 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 6 | mm |
Honeycomb grille STL 3D file, center-to-center: 300x300mm, mesh: 10mm - Ø8mm (📦 #3360)
1 object(s) - format STL
3D square protective grid file in STL format. Mounting holes are placed at the four corners (center-to-center 300x300 mm), each with a diameter of Ø8 mm. The overall dimensions reach 316x316 mm, with very open 10 mm cell size for maximum airflow. This type of grid serves both protection and ventilation roles.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 300 | mm |
| width or center-to-center | 300 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 8 | mm |
Protective grid STL 3D file, center-to-center: 240x240mm, mesh: 10mm - Ø5mm (📦 #3217)
1 object(s) - format STL
Square honeycomb grid model as a STL file. Mounting holes are placed at the four corners (center-to-center 240x240 mm), each with a diameter of Ø5 mm. The overall dimensions reach 250x250 mm, with very open 10 mm cell size for peak ventilation. This grid acts as a protective guard while allowing airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 240 | mm |
| width or center-to-center | 240 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 5 | mm |

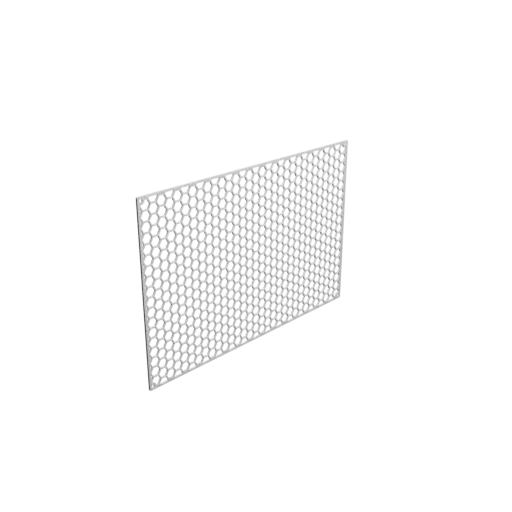

Honeycomb grid STL 3D file, center-to-center: 300x200mm, mesh: 10mm - Ø4mm (📦 #3642)
