Tube adapter STL file ⌀ 81–61 mm (Length: 115 mm) 📦#2666

STL Download STL
Create a new model:
from scratch search for a model
Inline tube coupler ⌀81 mm to ⌀61 mm in STL 3D format. Final length of this coupler is 115 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a sleeve length of 15 mm, the smaller one of 15 mm as well. The ends have no fillet.
Generation date: 2025-10-22

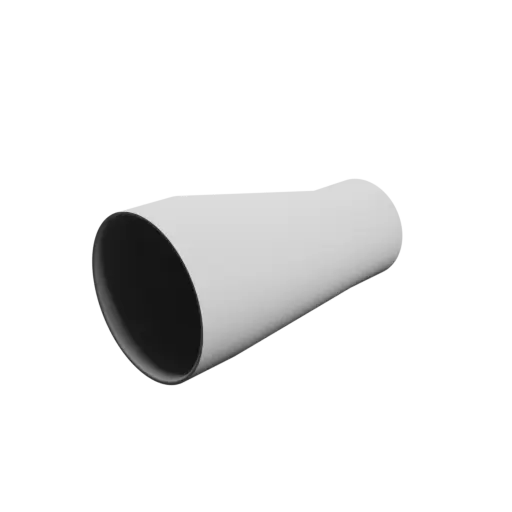

3D Model Tube adapter STL file ⌀ 81–61 mm (Length: 115 mm)

3D model download

Free
  • inline-tube-adapter-lenA15mm-d_model2666-nb0_dd{id}.stl : 885.8 Ko
STL Mesh quality : Linear deflection 0.05 Angular deflection 0.05
No compliance warranty No compliance warranty
(attribution - commercial use allowed)
Safe download

Values for this model

This model was generated by the Inline tube adapter template, with the following values:
Parameter Value
#1 side A length 15 mm
#2 side A outer diameter 81 mm
#3 side A thickness 2 mm
#4 side B length 15 mm
#5 side B outer diameter 61 mm
#6 side B thickness 2 mm
#7 transition length 85 mm
#8 axis offset 0 mm
#9 ends fillet no fillet
illustration of the parameters
Representation of the parameters

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 side A length lenA
#2 side A outer diameter diA
#3 side A thickness thA
#4 side B length lenB
#5 side B outer diameter diB
#6 side B thickness thB
#7 transition length tra
#8 axis offset ofs
#9 ends fillet fil
