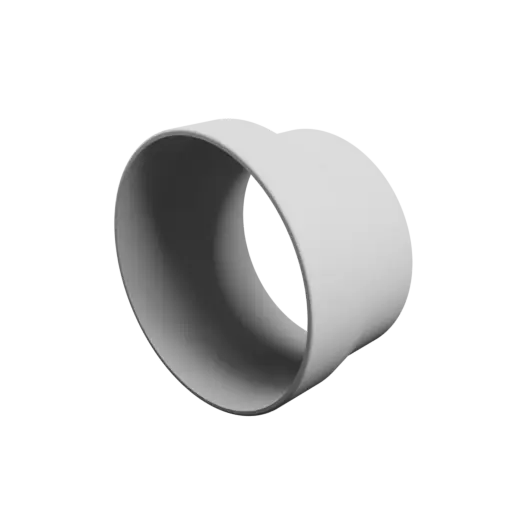

Inline tube adapter ⌀60 mm to ⌀15 mm in STL format. Total length of this adapter is 75 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a length of 25 mm, the smaller one of 30 mm. The axes of the tubes are offset by 20 mm. The ends feature an external fillet to ease the connection.
Generation date: 2025-10-12
3D Model Tube adapter STL 3D file ⌀ 60–15 mm (Length: 75 mm)

3D model download

Free
  • inline-tube-adapter-lenA25mm-d_model2407-nb0_dd{id}.stl : 9.1 Mo
STL Mesh quality : Linear deflection 0.05 Angular deflection 0.05
No compliance warranty No compliance warranty
(attribution - commercial use allowed)
Safe download
Instant .zip download — no email, no account

Values for this model

This model was generated by the Inline tube adapter template, with the following values:
Parameter Value
#1 side A length 25 mm (≃0.98 in)
#2 side A outer diameter 60 mm (≃2 3/8 in)
#3 side A thickness 2 mm (≃0.08 in)
#4 side B length 30 mm (≃1 3/16 in)
#5 side B outer diameter 15 mm (≃0.59 in)
#6 side B thickness 2 mm (≃0.08 in)
#7 transition length 20 mm (≃0.79 in)
#8 axis offset 20 mm (≃0.79 in)
#9 ends fillet fillet on the outside
Metadata Value
inner diameter (side A) 56 mm (≃2.20 in)
inner diameter (side B) 11 mm (≃7/16 in)
total length 75 mm (≃2 15/16 in)
illustration of the parameters
Parameter overview

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 side A length lenA
#2 side A outer diameter diA
#3 side A thickness thA
#4 side B length lenB
#5 side B outer diameter diB
#6 side B thickness thB
#7 transition length tra
#8 axis offset ofs
#9 ends fillet fil
