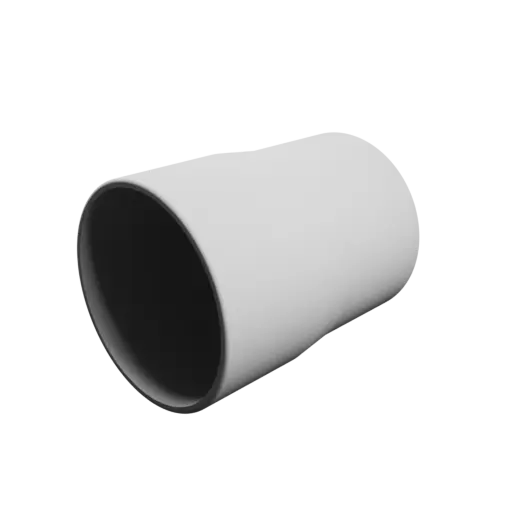

Tube adapter STL 3D file ⌀ 140–120 mm (Length: 60 mm) 📦#1207
Generation date: 2025-07-16
3D model download
Free- inline-tube-adapter-lenA20mm-d_model1207-nb0_dd{id}.stl : 4.2 Mo
STL
Mesh quality :
not defined
No compliance warranty
License: CC BY - Creative commons
(attribution - commercial use allowed)
Safe download
Values for this model
This model was generated by the Inline tube adapter template, with the following values:
| Parameter | Value | |
|---|---|---|
| #1 | side A length | 20 mm |
| #2 | side A outer diameter | 140 mm |
| #3 | side A thickness | 4 mm |
| #4 | side B length | 20 mm |
| #5 | side B outer diameter | 120 mm |
| #6 | side B thickness | 4 mm |
| #7 | transition length | 20 mm |
| #8 | axis offset | 0 mm |
| #9 | ends fillet | no fillet |
Representation of the parameters
Labels are used in the naming of the downloaded 3D files.
| Parameter | Label |
|---|---|
| #1 side A length | lenA |
| #2 side A outer diameter | diA |
| #3 side A thickness | thA |
| #4 side B length | lenB |
| #5 side B outer diameter | diB |
| #6 side B thickness | thB |
| #7 transition length | tra |
| #8 axis offset | ofs |
| #9 ends fillet | fil |
