Custom Tube adapter STL 3D file ⌀ 115–114 mm (Length: 70 mm) 📦#12441

STL Download STL 1
Create a new model expert
from scratch search for a model
Straight tubing adapter ⌀115 mm to ⌀114 mm in STL 3D format. Total length of this sleeve is 70 mm. The thickness of the tubes is identical: 4 mm. The larger-diameter tube has a sleeve length of 20 mm, the smaller one of 20 mm as well. The ends are raw.
Generation date: 2026-10-09
3D Model Tube adapter STL 3D file ⌀ 115–114 mm (Length: 70 mm)

3D model download

Free
  • inline-tube-adapter-lenA20mm-d_model12441-nb0_dd{id}.stl : 320 Ko
STL Mesh quality : Linear deflection 0.05 Angular deflection 0.05
No compliance warranty No compliance warranty
(attribution - commercial use allowed)
Safe download
Instant .zip download — no email, no account

Values for this model

This model was generated by the Inline tube adapter template, with the following values:
Parameter Value
#1 side A length 20 mm (≃0.79 in)
#2 side A outer diameter 115 mm (≃4.53 in)
#3 side A thickness 4 mm (≃0.16 in)
#4 side B length 20 mm (≃0.79 in)
#5 side B outer diameter 114 mm (≃4 1/2 in)
#6 side B thickness 4 mm (≃0.16 in)
#7 transition length 30 mm (≃1 3/16 in)
#8 axis offset 0 mm (0 in)
#9 ends fillet no fillet
Metadata Value
inner diameter (side A) 107 mm (≃4.21 in)
inner diameter (side B) 106 mm (≃4 3/16 in)
total length 70 mm (≃2 3/4 in)
illustration of the parameters
Parameter overview

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 side A length lenA
#2 side A outer diameter diA
#3 side A thickness thA
#4 side B length lenB
#5 side B outer diameter diB
#6 side B thickness thB
#7 transition length tra
#8 axis offset ofs
#9 ends fillet fil

Related 3D models

To search for a model based on your own parameters, go to the template page Inline tube adapter

Tube adapter STL 3D file ⌀ 140–120 mm (Length: 60 mm) (📦 #1207)

1 object(s) - format STL
Tube adapter STL 3D file ⌀ 140–120 mm (Length: 60 mm)
Tube fitting ⌀140 mm to ⌀120 mm in STL 3D format. Final length of this sleeve is 60 mm. The thickness of the tubes is identical: 4 mm. The larger-diameter tube has a length of 20 mm, the smaller one of 20 mm as well. The ends are not rounded.
Parameter Value Unit
side A length 20 mm
side A outer diameter 140 mm
side A thickness 4 mm
side B length 20 mm
side B outer diameter 120 mm
side B thickness 4 mm
transition length 20 mm
axis offset 0 mm
ends fillet no fillet

Tubing adapter STL file ⌀ 104–90 mm (Length: 80 mm) (📦 #3258)

1 object(s) - format STL
Tubing adapter STL file ⌀ 104–90 mm (Length: 80 mm)
Tube junction ⌀104 mm to ⌀90 mm in STL 3D format. Final length of this reducer is 80 mm. The thickness of the tubes is identical: 4 mm. The larger-diameter tube has a sleeve length of 25 mm, the smaller one of 30 mm. The ends are not rounded.
Parameter Value Unit
side A length 25 mm
side A outer diameter 104 mm
side A thickness 4 mm
side B length 30 mm
side B outer diameter 90 mm
side B thickness 4 mm
transition length 25 mm
axis offset 0 mm
ends fillet no fillet

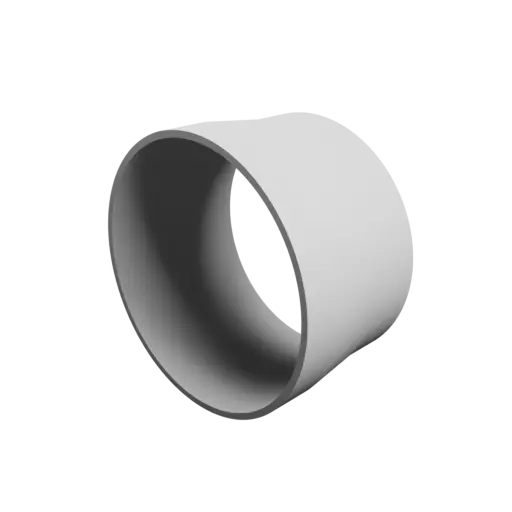

Tube adapter STL 3D file ⌀ 121–114 mm (Length: 70 mm) (📦 #12248)
