Custom Tube adapter STL file ⌀ 80–50 mm (Length: 700 mm) 📦#3992

STL Download STL 1
Create a new model expert
from scratch search for a model
Inline fitting ⌀80 mm to ⌀50 mm in STL format. Length of this coupler is 700 mm. The thickness of the tubes is identical: 3 mm. The larger-diameter tube has a length of 300 mm, the smaller one of 300 mm as well. The ends are raw.
Generation date: 2025-11-28
3D Model Tube adapter STL file ⌀ 80–50 mm (Length: 700 mm)

3D model download

Free
  • inline-tube-adapter-lenA300mm-_model3992-nb0_dd{id}.stl : 867.9 Ko
STL Mesh quality : Linear deflection 0.05 Angular deflection 0.05
No compliance warranty No compliance warranty
(attribution - commercial use allowed)
Safe download
Instant .zip download — no email, no account

Values for this model

This model was generated by the Inline tube adapter template, with the following values:
Parameter Value
#1 side A length 300 mm (≃11 13/16 in)
#2 side A outer diameter 80 mm (≃3.15 in)
#3 side A thickness 3 mm (≃1/8 in)
#4 side B length 300 mm (≃11 13/16 in)
#5 side B outer diameter 50 mm (≃1.97 in)
#6 side B thickness 3 mm (≃1/8 in)
#7 transition length 100 mm (≃3 15/16 in)
#8 axis offset 0 mm (0 in)
#9 ends fillet no fillet
Metadata Value
inner diameter (side A) 74 mm (≃2.91 in)
inner diameter (side B) 44 mm (≃1.73 in)
total length 700 mm (≃27 9/16 in)
illustration of the parameters
Parameter overview

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 side A length lenA
#2 side A outer diameter diA
#3 side A thickness thA
#4 side B length lenB
#5 side B outer diameter diB
#6 side B thickness thB
#7 transition length tra
#8 axis offset ofs
#9 ends fillet fil

Related 3D models

To search for a model based on your own parameters, go to the template page Inline tube adapter

Tubing adapter STL file ⌀ 80–58 mm (Length: 420 mm) (📦 #8289)

1 object(s) - format STL
Tubing adapter STL file ⌀ 80–58 mm (Length: 420 mm)
Tube reducer ⌀80 mm to ⌀58 mm in STL format. Final length of this fitting is 420 mm. The thickness of the tubes is identical: 5 mm. The larger-diameter tube has a length of 200 mm, the smaller one of 200 mm as well. The ends are not rounded.
Parameter Value Unit
side A length 200 mm
side A outer diameter 80 mm
side A thickness 5 mm
side B length 200 mm
side B outer diameter 58 mm
side B thickness 5 mm
transition length 20 mm
axis offset 0 mm
ends fillet no fillet

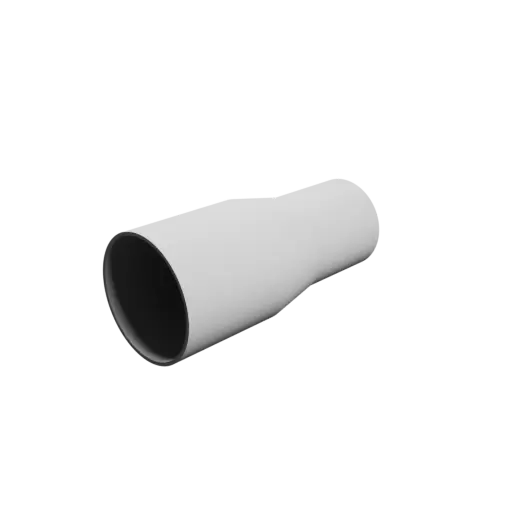

Tube adapter STL 3D file ⌀ 200–160 mm (Length: 450 mm) (📦 #3839)
