Custom Tube adapter STL file ⌀ 27–21 mm (Length: 395 mm) 📦#3675

STL Download STL
Create a new model:
from scratch search for a model
Straight tube coupler ⌀27 mm to ⌀21 mm in STL 3D format. Total length of this sleeve is 395 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a sleeve length of 60 mm, the smaller one of 300 mm. The ends have no fillet.
Generation date: 2025-11-25
3D Model Tube adapter STL file ⌀ 27–21 mm (Length: 395 mm)

3D model download

Free
  • inline-tube-adapter-lenA60mm-d_model3675-nb0_dd{id}.stl : 590.7 Ko
STL Mesh quality : Linear deflection 0.05 Angular deflection 0.05
No compliance warranty No compliance warranty
(attribution - commercial use allowed)
Safe download

Values for this model

This model was generated by the Inline tube adapter template, with the following values:
Parameter Value
#1 side A length 60 mm (≃2 3/8 in)
#2 side A outer diameter 27 mm (≃1 1/16 in)
#3 side A thickness 2 mm (≃0.08 in)
#4 side B length 300 mm (≃11 13/16 in)
#5 side B outer diameter 21 mm (≃13/16 in)
#6 side B thickness 2 mm (≃0.08 in)
#7 transition length 35 mm (≃1 3/8 in)
#8 axis offset 0 mm (0 in)
#9 ends fillet no fillet
Metadata Value
inner diameter (side A) 23 mm (≃0.91 in)
inner diameter (side B) 17 mm (≃0.67 in)
total length 395 mm (≃15 9/16 in)
illustration of the parameters
Parameter overview

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 side A length lenA
#2 side A outer diameter diA
#3 side A thickness thA
#4 side B length lenB
#5 side B outer diameter diB
#6 side B thickness thB
#7 transition length tra
#8 axis offset ofs
#9 ends fillet fil

Related 3D models

To search for a model based on your own parameters, go to the template page Inline tube adapter

Tube adapter STL 3D file ⌀ 50–39 mm (Length: 390 mm) (📦 #1461)

1 object(s) - format STL
Tube adapter STL 3D file ⌀ 50–39 mm (Length: 390 mm)
Tube connector ⌀50 mm to ⌀39 mm in STL 3D format. Total length of this fitting is 390 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a length of 60 mm, the smaller one of 300 mm. The two axes of the tubes are off-center by 5 mm. The ends have a fillet on the outside.
Parameter Value Unit
side A length 60 mm
side A outer diameter 50 mm
side A thickness 2 mm
side B length 300 mm
side B outer diameter 39 mm
side B thickness 2 mm
transition length 30 mm
axis offset 5 mm
ends fillet fillet on th...

Tube adapter STL 3D file ⌀ 33–10 mm (Length: 260 mm) (📦 #1524)

1 object(s) - format STL
Tube adapter STL 3D file ⌀ 33–10 mm (Length: 260 mm)
Inline fitting ⌀33 mm to ⌀10 mm in STL format. Final length of this reducer is 260 mm. The larger-diameter tube has a thickness of 2.9 mm and a length of 15 mm. The smaller-diameter tube has a thickness of 2 mm and a length of 230 mm. The ends are not rounded.
Parameter Value Unit
side A length 15 mm
side A outer diameter 33 mm
side A thickness 2.9 mm
side B length 230 mm
side B outer diameter 10 mm
side B thickness 2 mm
transition length 15 mm
axis offset 0 mm
ends fillet no fillet

Tube adapter STL file ⌀ 33–10 mm (Length: 250 mm) (📦 #1523)

1 object(s) - format STL
Tube adapter STL file ⌀ 33–10 mm (Length: 250 mm)
Tube junction ⌀33 mm to ⌀10 mm in STL 3D format. Final length of this fitting is 250 mm. The larger-diameter tube has a thickness of 2.9 mm and a length of 15 mm. The smaller-diameter tube has a thickness of 2 mm and a length of 230 mm. The ends have no fillet.
Parameter Value Unit
side A length 15 mm
side A outer diameter 33 mm
side A thickness 2.9 mm
side B length 230 mm
side B outer diameter 10 mm
side B thickness 2 mm
transition length 5 mm
axis offset 0 mm
ends fillet no fillet

Tube adapter STL file ⌀ 150–90 mm (Length: 200 mm) (📦 #1372)

1 object(s) - format STL
Tube adapter STL file ⌀ 150–90 mm (Length: 200 mm)
Straight tube connector ⌀150 mm to ⌀90 mm in STL format. Final length of this junction is 200 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a sleeve length of 50 mm, the smaller one of 100 mm. The ends feature an external fillet to facilitate the connection of the two tubes.
Parameter Value Unit
side A length 50 mm
side A outer diameter 150 mm
side A thickness 2 mm
side B length 100 mm
side B outer diameter 90 mm
side B thickness 2 mm
transition length 50 mm
axis offset 0 mm
ends fillet fillet on th...

Tube adapter STL 3D file ⌀ 149–100 mm (Length: 200 mm) (📦 #1288)

1 object(s) - format STL (5.0/5) 2 vote(s)
Tube adapter STL 3D file ⌀ 149–100 mm (Length: 200 mm)
Diameter adapter ⌀149 mm to ⌀100 mm in STL format. Final length of this fitting is 200 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a length of 50 mm, the smaller one of 100 mm. The ends have a fillet on the outside.
Parameter Value Unit
side A length 50 mm
side A outer diameter 149 mm
side A thickness 2 mm
side B length 100 mm
side B outer diameter 100 mm
side B thickness 2 mm
transition length 50 mm
axis offset 0 mm
ends fillet fillet on th...

Tube adapter STL file ⌀ 50–49 mm (Length: 200 mm) (📦 #2325)

1 object(s) - format STL
Tube adapter STL file ⌀ 50–49 mm (Length: 200 mm)
Inline tube adapter ⌀50 mm to ⌀49 mm in STL 3D format. Length of this fitting is 200 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a length of 100 mm, the smaller one of 90 mm. The ends have a fillet on the inside.
Parameter Value Unit
side A length 100 mm
side A outer diameter 50 mm
side A thickness 2 mm
side B length 90 mm
side B outer diameter 49 mm
side B thickness 2 mm
transition length 10 mm
axis offset 0 mm
ends fillet fillet on th...

Tube adapter STL file ⌀ 60–35 mm (Length: 240 mm) (📦 #2996)

1 object(s) - format STL
Tube adapter STL file ⌀ 60–35 mm (Length: 240 mm)
Straight tube fitting ⌀60 mm to ⌀35 mm in STL 3D format. Length of this adapter is 240 mm. The thickness of the tubes is identical: 3 mm. The larger-diameter tube has a sleeve length of 80 mm, the smaller one of 80 mm as well. The ends are raw.
Parameter Value Unit
side A length 80 mm
side A outer diameter 60 mm
side A thickness 3 mm
side B length 80 mm
side B outer diameter 35 mm
side B thickness 3 mm
transition length 80 mm
axis offset 0 mm
ends fillet no fillet

Tube adapter STL file ⌀ 27–23 mm (Length: 192 mm) (📦 #3896)

1 object(s) - format STL
Tube adapter STL file ⌀ 27–23 mm (Length: 192 mm)
Tube junction ⌀27 mm to ⌀23 mm in STL format. Length of this fitting is 192 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a length of 61 mm, the smaller one of 71 mm. The ends are raw.
Parameter Value Unit
side A length 61 mm
side A outer diameter 27 mm
side A thickness 2 mm
side B length 71 mm
side B outer diameter 23 mm
side B thickness 2 mm
transition length 60 mm
axis offset 0 mm
ends fillet no fillet

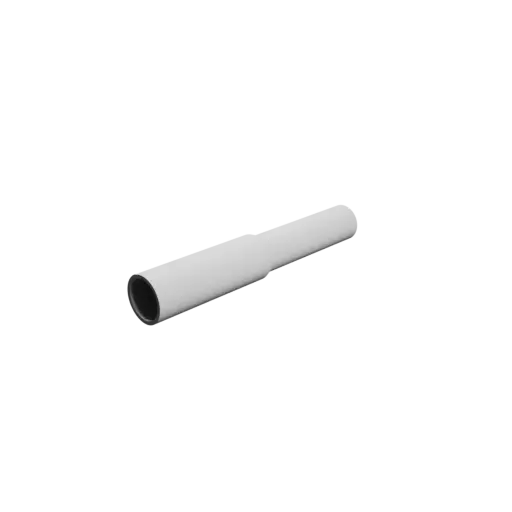

Tube adapter STL 3D file ⌀ 25–21 mm (Length: 148 mm) (📦 #3662)
