Custom Tube adapter STL 3D file ⌀ 25–21 mm (Length: 148 mm) 📦#3662

STL Download STL 1
Create a new model:
from scratch search for a model
Tube junction ⌀25 mm to ⌀21 mm in STL format. Total length of this junction is 148 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a length of 72 mm, the smaller one of 71 mm. The ends have no fillet.
Generation date: 2025-11-25
3D Model Tube adapter STL 3D file ⌀ 25–21 mm (Length: 148 mm)

3D model download

Free
  • inline-tube-adapter-lenA72mm-d_model3662-nb0_dd{id}.stl : 951.7 Ko
STL Mesh quality : Linear deflection 0.05 Angular deflection 0.05
No compliance warranty No compliance warranty
(attribution - commercial use allowed)
Safe download

Values for this model

This model was generated by the Inline tube adapter template, with the following values:
Parameter Value
#1 side A length 72 mm (≃2.83 in)
#2 side A outer diameter 25 mm (≃0.98 in)
#3 side A thickness 2 mm (≃0.08 in)
#4 side B length 71 mm (≃2.80 in)
#5 side B outer diameter 21 mm (≃13/16 in)
#6 side B thickness 2 mm (≃0.08 in)
#7 transition length 5 mm (≃3/16 in)
#8 axis offset 0 mm (0 in)
#9 ends fillet no fillet
Metadata Value
inner diameter (side A) 21 mm (≃13/16 in)
inner diameter (side B) 17 mm (≃0.67 in)
total length 148 mm (≃5 13/16 in)
illustration of the parameters
Parameter overview

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 side A length lenA
#2 side A outer diameter diA
#3 side A thickness thA
#4 side B length lenB
#5 side B outer diameter diB
#6 side B thickness thB
#7 transition length tra
#8 axis offset ofs
#9 ends fillet fil

Related 3D models

To search for a model based on your own parameters, go to the template page Inline tube adapter

Tube adapter STL file ⌀ 43–31 mm (Length: 120 mm) (📦 #2849)

1 object(s) - format STL
Tube adapter STL file ⌀ 43–31 mm (Length: 120 mm)
Tube adapter ⌀43 mm to ⌀31 mm in STL format. Final length of this coupler is 120 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a length of 50 mm, the smaller one of 50 mm as well. The ends are not rounded.
Parameter Value Unit
side A length 50 mm
side A outer diameter 43 mm
side A thickness 2 mm
side B length 50 mm
side B outer diameter 31 mm
side B thickness 2 mm
transition length 20 mm
axis offset 0 mm
ends fillet no fillet

Tube adapter STL file ⌀ 64–32 mm (Length: 166 mm) (📦 #2979)

1 object(s) - format STL
Tube adapter STL file ⌀ 64–32 mm (Length: 166 mm)
Inline tubing adapter ⌀64 mm to ⌀32 mm in STL 3D format. Total length of this junction is 166 mm. The thickness of the tubes is identical: 3 mm. The larger-diameter tube has a length of 80 mm, the smaller one of 60 mm. The ends are raw.
Parameter Value Unit
side A length 80 mm
side A outer diameter 64 mm
side A thickness 3 mm
side B length 60 mm
side B outer diameter 32 mm
side B thickness 3 mm
transition length 26 mm
axis offset 0 mm
ends fillet no fillet

Tube adapter STL 3D file ⌀ 56–50 mm (Length: 120 mm) (📦 #1493)

1 object(s) - format STL (5.0/5) 1 vote(s)
Tube adapter STL 3D file ⌀ 56–50 mm (Length: 120 mm)
Inline fitting ⌀56 mm to ⌀50 mm in STL format. Length of this adapter is 120 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a length of 50 mm, the smaller one of 50 mm as well. The ends have no fillet.
Parameter Value Unit
side A length 50 mm
side A outer diameter 56 mm
side A thickness 2 mm
side B length 50 mm
side B outer diameter 50 mm
side B thickness 2 mm
transition length 20 mm
axis offset 0 mm
ends fillet no fillet

Tubing adapter STL 3D file ⌀ 40–20 mm (Length: 110 mm) (📦 #3010)

1 object(s) - format STL
Tubing adapter STL 3D file ⌀ 40–20 mm (Length: 110 mm)
Inline fitting ⌀40 mm to ⌀20 mm in STL format. Final length of this reducer is 110 mm. The larger-diameter tube has a thickness of 2 mm and a length of 40 mm. The smaller-diameter tube has a thickness of 2.2 mm and a length of 40 mm as well. The ends are not rounded.
Parameter Value Unit
side A length 40 mm
side A outer diameter 40 mm
side A thickness 2 mm
side B length 40 mm
side B outer diameter 20 mm
side B thickness 2.2 mm
transition length 30 mm
axis offset 0 mm
ends fillet no fillet

Tubing adapter STL file ⌀ 40–24 mm (Length: 110 mm) (📦 #3009)

1 object(s) - format STL
Tubing adapter STL file ⌀ 40–24 mm (Length: 110 mm)
Straight tube adapter ⌀40 mm to ⌀24 mm in STL 3D format. Total length of this adapter is 110 mm. The thickness of the tubes is identical: 2.1 mm. The larger-diameter tube has a sleeve length of 40 mm, the smaller one of 40 mm as well. The ends have no fillet.
Parameter Value Unit
side A length 40 mm
side A outer diameter 40 mm
side A thickness 2.1 mm
side B length 40 mm
side B outer diameter 24 mm
side B thickness 2.1 mm
transition length 30 mm
axis offset 0 mm
ends fillet no fillet

Tube adapter STL file ⌀ 77–57 mm (Length: 125 mm) (📦 #2313)

1 object(s) - format STL
Tube adapter STL file ⌀ 77–57 mm (Length: 125 mm)
Inline tube junction ⌀77 mm to ⌀57 mm in STL format. Length of this fitting is 125 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a sleeve length of 50 mm, the smaller one of 50 mm as well. The ends have no fillet.
Parameter Value Unit
side A length 50 mm
side A outer diameter 77 mm
side A thickness 2 mm
side B length 50 mm
side B outer diameter 57 mm
side B thickness 2 mm
transition length 25 mm
axis offset 0 mm
ends fillet no fillet

Tubing adapter STL file ⌀ 44–24 mm (Length: 110 mm) (📦 #3008)

1 object(s) - format STL
Tubing adapter STL file ⌀ 44–24 mm (Length: 110 mm)
Inline tube coupler ⌀44 mm to ⌀24 mm in STL 3D format. Total length of this fitting is 110 mm. The thickness of the tubes is identical: 2.1 mm. The larger-diameter tube has a length of 40 mm, the smaller one of 40 mm as well. The ends are not rounded.
Parameter Value Unit
side A length 40 mm
side A outer diameter 44 mm
side A thickness 2.1 mm
side B length 40 mm
side B outer diameter 24 mm
side B thickness 2.1 mm
transition length 30 mm
axis offset 0 mm
ends fillet no fillet

Tube adapter STL 3D file ⌀ 25–21 mm (Length: 137 mm) (📦 #3668)

1 object(s) - format STL
Tube adapter STL 3D file ⌀ 25–21 mm (Length: 137 mm)
Diameter adapter ⌀25 mm to ⌀21 mm in STL 3D format. Total length of this adapter is 137 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a length of 31 mm, the smaller one of 71 mm. The ends have no fillet.
Parameter Value Unit
side A length 31 mm
side A outer diameter 25 mm
side A thickness 2 mm
side B length 71 mm
side B outer diameter 21 mm
side B thickness 2 mm
transition length 35 mm
axis offset 0 mm
ends fillet no fillet

Tubing adapter STL 3D file ⌀ 27–21 mm (Length: 137 mm) (📦 #3671)

1 object(s) - format STL
Tubing adapter STL 3D file ⌀ 27–21 mm (Length: 137 mm)
Straight tube adapter ⌀27 mm to ⌀21 mm in STL 3D format. Length of this fitting is 137 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a length of 31 mm, the smaller one of 71 mm. The ends have no fillet.
Parameter Value Unit
side A length 31 mm
side A outer diameter 27 mm
side A thickness 2 mm
side B length 71 mm
side B outer diameter 21 mm
side B thickness 2 mm
transition length 35 mm
axis offset 0 mm
ends fillet no fillet

Tube adapter STL file ⌀ 27–23 mm (Length: 192 mm) (📦 #3896)

1 object(s) - format STL
Tube adapter STL file ⌀ 27–23 mm (Length: 192 mm)
Tube junction ⌀27 mm to ⌀23 mm in STL format. Length of this fitting is 192 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a length of 61 mm, the smaller one of 71 mm. The ends are raw.
Parameter Value Unit
side A length 61 mm
side A outer diameter 27 mm
side A thickness 2 mm
side B length 71 mm
side B outer diameter 23 mm
side B thickness 2 mm
transition length 60 mm
axis offset 0 mm
ends fillet no fillet

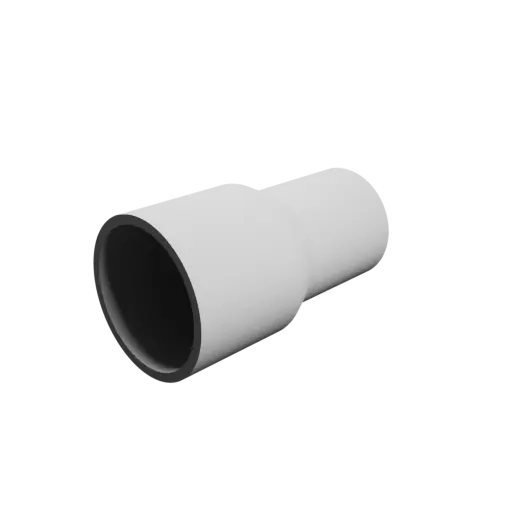

Tube adapter STL file ⌀ 50–40 mm (Length: 90 mm) (📦 #3871)
