Custom Honeycomb grille STL 3D file, center-to-center: 192x81mm, mesh: 8mm - Ø4mm 📦#3095
Generation date: 2025-11-06
3D model download
Free- honeycomb-grid-loc192mm-woc81m_model3095-nb0_dd{id}.stl : 494 Ko
STL
Mesh quality :
0.001
0.1
No compliance warranty
License: ITE IPU v1.0 - Iteration3d
(Internal and private use, non-commercial – no distribution – no derivatives)
Safe download
Values for this model
This model was generated by the Honeycomb grid / fan guard template, with the following values:
| Parameter | Value | |
|---|---|---|
| #1 | length or center-to-center | 192 mm (≃7 9/16 in) |
| #2 | width or center-to-center | 81 mm (≃3 3/16 in) |
| #3 | mesh size | 8 mm (≃5/16 in) |
| #4 | dual color | no |
| #5 | holes | yes |
| #6 | hole diameter | 4 mm (≃0.16 in) |
| Metadata | Value |
|---|---|
| total length | 200 mm (≃7 7/8 in) |
| total width | 89 mm (≃3 1/2 in) |
| thickness | 2 mm (≃0.08 in) |
Parameter overview
The thickness of the walls forming the honeycomb structure is 1.2 mm.
- When no holes are present, the width of the outer band is 1.5 mm.
- When holes are present, the width of the outer band is equal to half the hole diameter.
When holes are present, the boss (reinforcing collar around the holes) has a diameter equal to twice the hole diameter.
When holes are present, the distance between the center of a hole and the outer edge of the frame is equal to the hole diameter.
The grid thickness is fixed at 2 mm.
The outer rim features a 1 mm rounded edge (fillet) on all four corners.
When the dual color parameter is enabled, the external band has a width equal to 30% of the hole diameter (0.9 mm when no holes are present).
Labels are used in the naming of the downloaded 3D files.
| Parameter | Label |
|---|---|
| #1 length or center-to-center | loc |
| #2 width or center-to-center | woc |
| #3 mesh size | mes |
| #4 dual color | duaC |
| #5 holes | hol |
| #6 hole diameter | hod |
Related 3D models
To search for a model based on your own parameters, go to the template page Honeycomb grid / fan guard

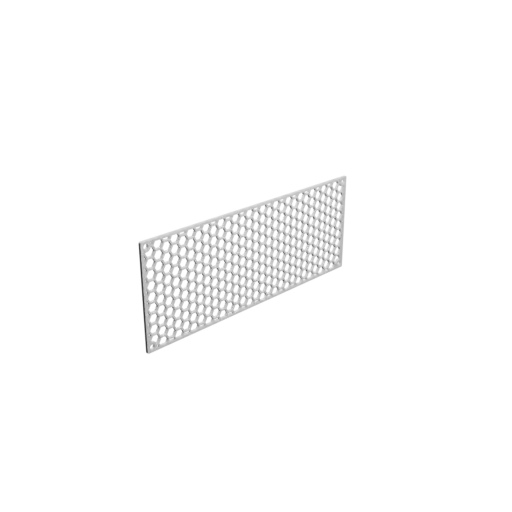

Honeycomb grid STL file, center-to-center: 205x75mm, mesh: 7mm - Ø4mm (📦 #6069)
1 object(s) - format STL
Honeycomb rectangular grid file in STL format. Mounting holes are placed at the four corners (center-to-center 205x75 mm), each with a diameter of Ø4 mm. The overall dimensions reach 213x83 mm, with open 7 mm cell size to enhance ventilation. This type of grid serves both protection and ventilation roles.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 205 | mm |
| width or center-to-center | 75 | mm |
| mesh size | 7 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 4 | mm |

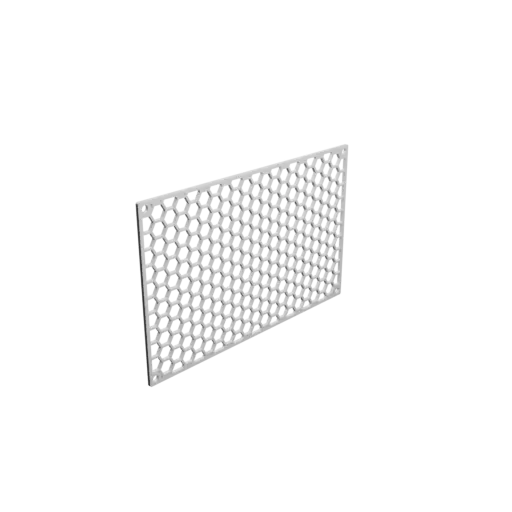

Honeycomb grille STL 3D file, center-to-center: 160x100mm, mesh: 8mm - Ø4mm (📦 #8709)
1 object(s) - format STL
3D honeycomb protective rectangular grid model as a STL file. Mounting holes are placed at the four corners (center-to-center 160x100 mm), each with a diameter of Ø4 mm. The overall dimensions reach 168x108 mm, with wide 8 mm cell size to maximize airflow. This type of grid provides mechanical protection and ventilation.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 160 | mm |
| width or center-to-center | 100 | mm |
| mesh size | 8 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 4 | mm |

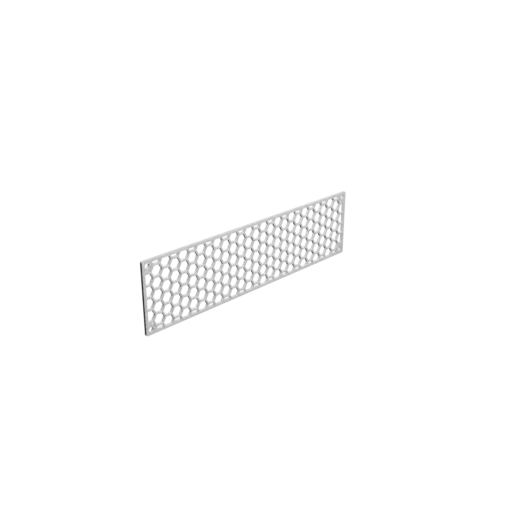

Honeycomb grille STL 3D file, center-to-center: 207x48mm, mesh: 8mm - Ø4mm (📦 #5422)
1 object(s) - format STL
Honeycomb protective rectangular grid model as a STL file. Mounting holes are placed at the four corners (center-to-center 207x48 mm), each with a diameter of Ø4 mm. The overall dimensions reach 215x56 mm, with large 8 mm cell size to enhance ventilation. This grid serves as both a protective guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 207 | mm |
| width or center-to-center | 48 | mm |
| mesh size | 8 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 4 | mm |

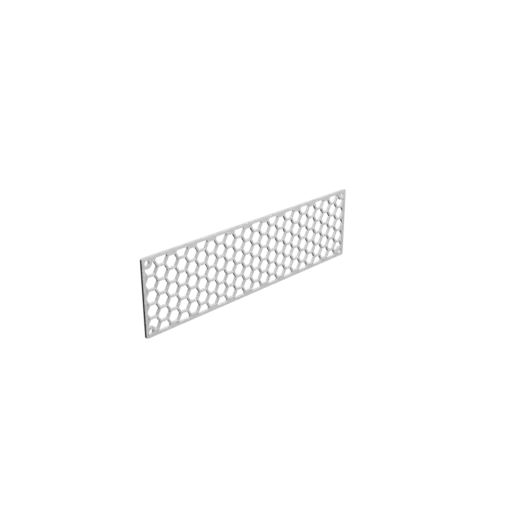

Honeycomb grid STL file, center-to-center: 200x50mm, mesh: 9mm - Ø4mm (📦 #7101)
1 object(s) - format STL
3D rectangular grid model as a STL file. Mounting holes are placed at the four corners (center-to-center 200x50 mm), each with a diameter of Ø4 mm. The overall dimensions reach 208x58 mm, with extra wide 9 mm cell size for peak ventilation. This grid acts as a protective guard while allowing airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 200 | mm |
| width or center-to-center | 50 | mm |
| mesh size | 9 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 4 | mm |

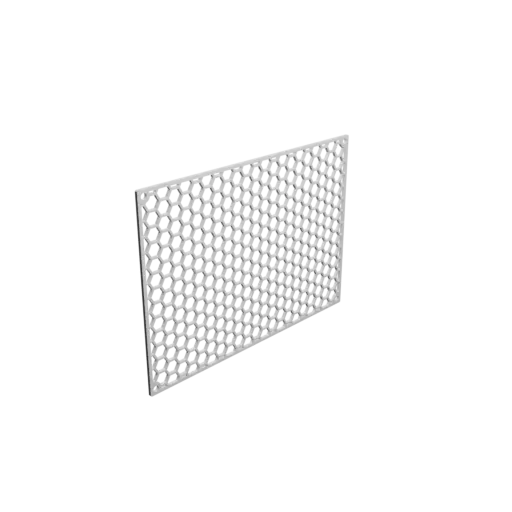

Protective grid STL 3D file, center-to-center: 170x120mm, mesh: 8mm - Ø4mm (📦 #6399)
1 object(s) - format STL
Download this 3D rectangular protective honeycomb grid file in STL format. Mounting holes are placed at the four corners (center-to-center 170x120 mm), each with a diameter of Ø4 mm. The overall dimensions reach 178x128 mm, with open 8 mm cell size to maximize airflow. This grid functions as both a mechanical guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 170 | mm |
| width or center-to-center | 120 | mm |
| mesh size | 8 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 4 | mm |

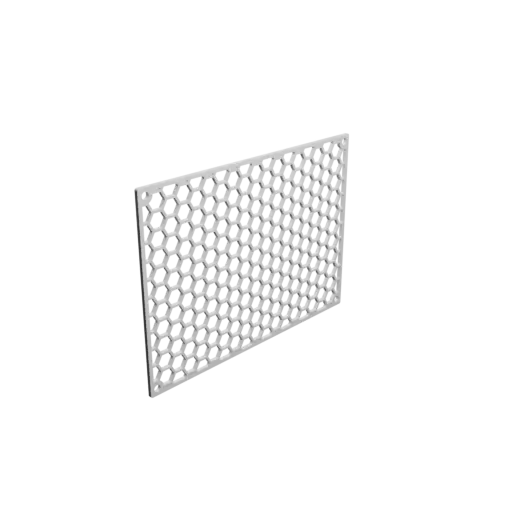

Honeycomb grid STL file, center-to-center: 140x100mm, mesh: 8mm - Ø4mm (📦 #4736)
1 object(s) - format STL
Download this 3D rectangular grid file in STL format. Mounting holes are placed at the four corners (center-to-center 140x100 mm), each with a diameter of Ø4 mm. The overall dimensions reach 148x108 mm, with large 8 mm cell size to maximize airflow. This type of grid serves both protection and ventilation roles.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 140 | mm |
| width or center-to-center | 100 | mm |
| mesh size | 8 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 4 | mm |

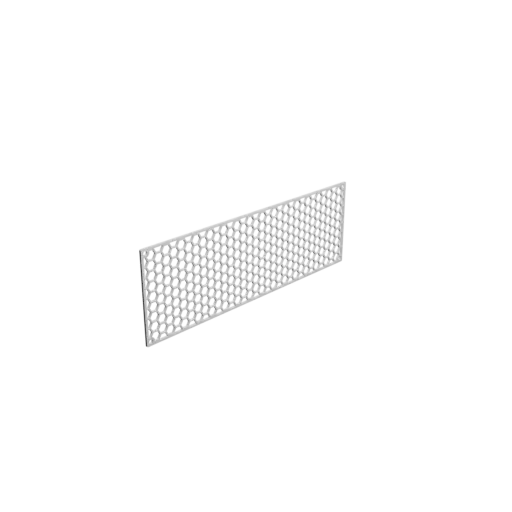

Honeycomb grid STL file, center-to-center: 250x80mm, mesh: 8mm - Ø4mm (📦 #6118)
1 object(s) - format STL
Honeycomb rectangular grid file in STL format. Mounting holes are placed at the four corners (center-to-center 250x80 mm), each with a diameter of Ø4 mm. The overall dimensions reach 258x88 mm, with large 8 mm cell size to maximize airflow. This type of grid provides mechanical protection and ventilation.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 250 | mm |
| width or center-to-center | 80 | mm |
| mesh size | 8 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 4 | mm |

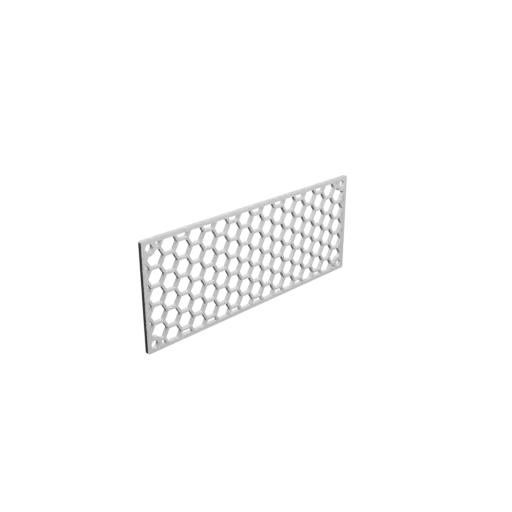

Honeycomb grid STL file, center-to-center: 134x48mm, mesh: 8mm - Ø4mm (📦 #4739)
1 object(s) - format STL
Download this 3D rectangular protective honeycomb grid model in STL format. Mounting holes are placed at the four corners (center-to-center 134x48 mm), each with a diameter of Ø4 mm. The overall dimensions reach 142x56 mm, with wide 8 mm cell size for optimal air circulation. This grid serves as both a protective guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 134 | mm |
| width or center-to-center | 48 | mm |
| mesh size | 8 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 4 | mm |
Honeycomb grid STL file, center-to-center: 144x116mm, mesh: 8mm - Ø3mm (📦 #3899)
1 object(s) - format STL
Download this 3D rectangular protective grid as a STL file. Mounting holes are placed at the four corners (center-to-center 144x116 mm), each with a diameter of Ø3 mm. The overall dimensions reach 150x122 mm, with large 8 mm cell size to enhance ventilation. This type of grid provides mechanical protection and ventilation.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 144 | mm |
| width or center-to-center | 116 | mm |
| mesh size | 8 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 3 | mm |
Honeycomb grille STL file, center-to-center: 240x44mm, mesh: 7mm - Ø4mm (📦 #6691)
1 object(s) - format STL
Rectangular honeycomb grid model as a STL file. Mounting holes are placed at the four corners (center-to-center 240x44 mm), each with a diameter of Ø4 mm. The overall dimensions reach 248x52 mm, with open 7 mm cell size for optimal air circulation. This type of grid serves both protection and ventilation roles.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 240 | mm |
| width or center-to-center | 44 | mm |
| mesh size | 7 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 4 | mm |
Honeycomb grille STL file, center-to-center: 230x30mm, mesh: 8mm - Ø5mm (📦 #2823)
1 object(s) - format STL (5.0/5) 2 vote(s)
Download this 3D honeycomb protective rectangular grid as a STL file. Mounting holes are placed at the four corners (center-to-center 230x30 mm), each with a diameter of Ø5 mm. The overall dimensions reach 240x40 mm, with wide 8 mm cell size to enhance ventilation. This type of grid provides mechanical protection and ventilation.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 230 | mm |
| width or center-to-center | 30 | mm |
| mesh size | 8 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 5 | mm |
Protective grid STL 3D file, center-to-center: 210x110mm, mesh: 10mm - Ø5mm (📦 #3612)
1 object(s) - format STL
Download this rectangular protective honeycomb grid model in STL format. Mounting holes are placed at the four corners (center-to-center 210x110 mm), each with a diameter of Ø5 mm. The overall dimensions reach 220x120 mm, with very large 10 mm cell size for peak ventilation. This grid serves as both a protective guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 210 | mm |
| width or center-to-center | 110 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 5 | mm |
Protective grid STL 3D file, center-to-center: 230x100mm, mesh: 10mm - Ø5mm (📦 #3285)
1 object(s) - format STL
Rectangular grid file in STL format. Mounting holes are placed at the four corners (center-to-center 230x100 mm), each with a diameter of Ø5 mm. The overall dimensions reach 240x110 mm, with very open 10 mm cell size for maximum airflow. This type of grid serves both protection and ventilation roles.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 230 | mm |
| width or center-to-center | 100 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 5 | mm |

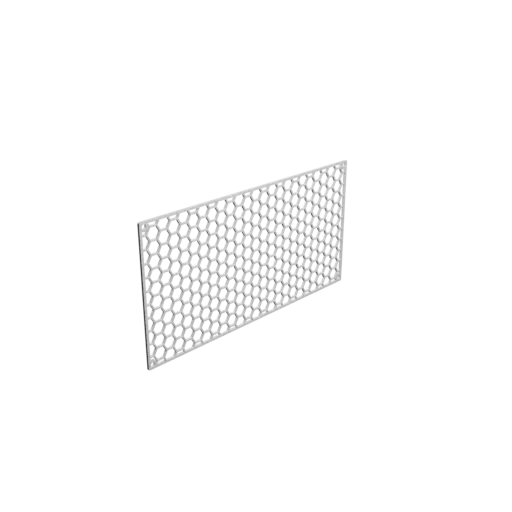

Honeycomb grid STL file, center-to-center: 230x115mm, mesh: 10mm - Ø4mm (📦 #6428)
1 object(s) - format STL
Download this honeycomb protective rectangular grid model in STL format. Mounting holes are placed at the four corners (center-to-center 230x115 mm), each with a diameter of Ø4 mm. The overall dimensions reach 238x123 mm, with very large 10 mm cell size for peak ventilation. This type of grid provides mechanical protection and ventilation.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 230 | mm |
| width or center-to-center | 115 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 4 | mm |
Honeycomb grid STL file, center-to-center: 200x40mm, mesh: 10mm - Ø3mm (📦 #3996)
1 object(s) - format STL
Rectangular protective grid file in STL format. Mounting holes are placed at the four corners (center-to-center 200x40 mm), each with a diameter of Ø3 mm. The overall dimensions reach 206x46 mm, with extra wide 10 mm cell size for maximum airflow. This grid acts as a protective guard while allowing airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 200 | mm |
| width or center-to-center | 40 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 3 | mm |
Honeycomb grille STL 3D file, center-to-center: 148x50mm, mesh: 10mm - Ø4mm (📦 #3603)
1 object(s) - format STL
Rectangular grid model as a STL file. Mounting holes are placed at the four corners (center-to-center 148x50 mm), each with a diameter of Ø4 mm. The overall dimensions reach 156x58 mm, with very open 10 mm cell size for peak ventilation. This grid provides both mechanical protection and airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 148 | mm |
| width or center-to-center | 50 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 4 | mm |

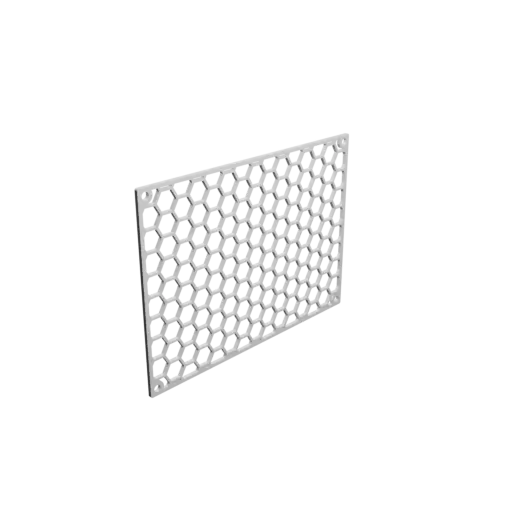

Protective grid STL 3D file, center-to-center: 140x100mm, mesh: 10mm - Ø4mm (📦 #4691)
1 object(s) - format STL
Download this 3D rectangular grid file in STL format. Mounting holes are placed at the four corners (center-to-center 140x100 mm), each with a diameter of Ø4 mm. The overall dimensions reach 148x108 mm, with very large 10 mm cell size for maximum airflow. This type of grid provides mechanical protection and ventilation.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 140 | mm |
| width or center-to-center | 100 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 4 | mm |

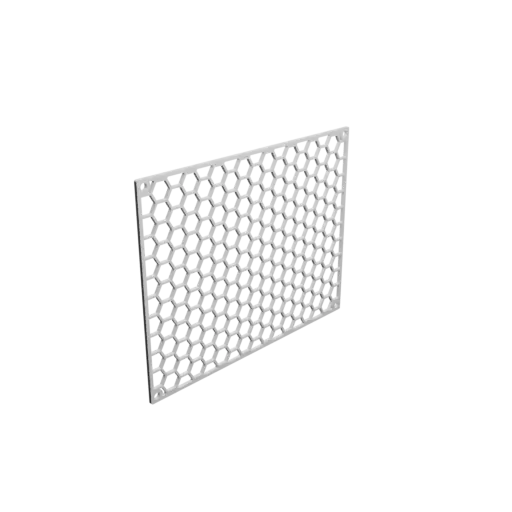

Honeycomb grid STL file, center-to-center: 157x121mm, mesh: 10mm - Ø4mm (📦 #7655)
1 object(s) - format STL
Download this 3D honeycomb rectangular grid as a STL file. Mounting holes are placed at the four corners (center-to-center 157x121 mm), each with a diameter of Ø4 mm. The overall dimensions reach 165x129 mm, with very large 10 mm cell size for peak ventilation. This type of grid provides mechanical protection and ventilation.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 157 | mm |
| width or center-to-center | 121 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 4 | mm |
Honeycomb grille STL file, center-to-center: 144x70mm, mesh: 6mm - Ø3mm (📦 #3624)
1 object(s) - format STL
Download this rectangular honeycomb grid file in STL format. Mounting holes are placed at the four corners (center-to-center 144x70 mm), each with a diameter of Ø3 mm. The overall dimensions reach 150x76 mm, with wide 6 mm cell size to maximize airflow. This grid acts as a protective guard while allowing airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 144 | mm |
| width or center-to-center | 70 | mm |
| mesh size | 6 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 3 | mm |
Protective grid STL 3D file, center-to-center: 220x120mm, mesh: 10mm - Ø5mm (📦 #3602)
1 object(s) - format STL
Download this rectangular protective grid model in STL format. Mounting holes are placed at the four corners (center-to-center 220x120 mm), each with a diameter of Ø5 mm. The overall dimensions reach 230x130 mm, with extra wide 10 mm cell size for peak ventilation. This grid serves as both a protective guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 220 | mm |
| width or center-to-center | 120 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 5 | mm |

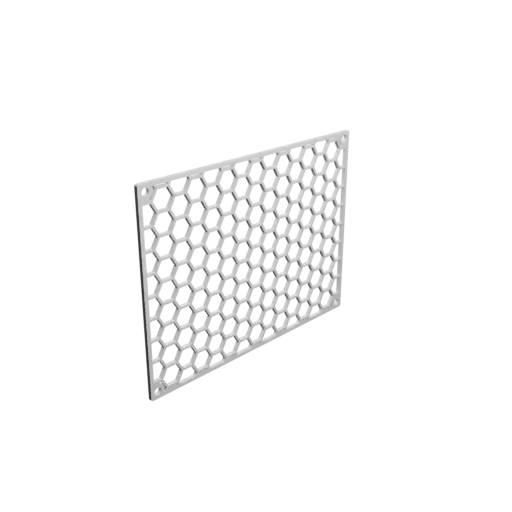

Honeycomb grid STL file, center-to-center: 135x100mm, mesh: 10mm - Ø4mm (📦 #6079)
1 object(s) - format STL
Honeycomb rectangular grid model as a STL file. Mounting holes are placed at the four corners (center-to-center 135x100 mm), each with a diameter of Ø4 mm. The overall dimensions reach 143x108 mm, with very large 10 mm cell size for maximum airflow. This grid serves as both a protective guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 135 | mm |
| width or center-to-center | 100 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 4 | mm |
Honeycomb grid STL 3D file, center-to-center: 116x100mm, mesh: 8mm - Ø3mm (📦 #3904)
1 object(s) - format STL
3D rectangular grid file in STL format. Mounting holes are placed at the four corners (center-to-center 116x100 mm), each with a diameter of Ø3 mm. The overall dimensions reach 122x106 mm, with wide 8 mm cell size for optimal air circulation. This type of grid serves both protection and ventilation roles.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 116 | mm |
| width or center-to-center | 100 | mm |
| mesh size | 8 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 3 | mm |
Honeycomb grid STL 3D file, center-to-center: 140x140mm, mesh: 7mm - Ø4mm (📦 #5132)
1 object(s) - format STL
Download this 3D honeycomb protective square grid as a STL file. Mounting holes are placed at the four corners (center-to-center 140x140 mm), each with a diameter of Ø4 mm. The overall dimensions reach 148x148 mm, with large 7 mm cell size to maximize airflow. This grid provides both mechanical protection and airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 140 | mm |
| width or center-to-center | 140 | mm |
| mesh size | 7 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 4 | mm |
Honeycomb grille STL file, center-to-center: 120x120mm, mesh: 8mm - Ø3mm (📦 #7991)
1 object(s) - format STL
Square protective honeycomb grid model in STL format. Mounting holes are placed at the four corners (center-to-center 120x120 mm), each with a diameter of Ø3 mm. The overall dimensions reach 126x126 mm, with open 8 mm cell size to maximize airflow. This grid serves as both a protective guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 120 | mm |
| width or center-to-center | 120 | mm |
| mesh size | 8 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 3 | mm |

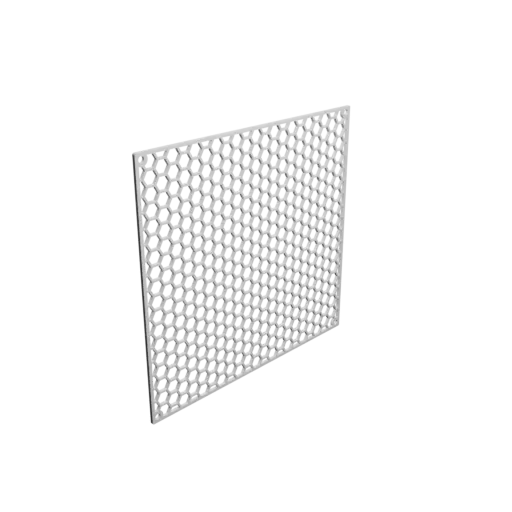

Honeycomb grid STL 3D file, center-to-center: 170x160mm, mesh: 8mm - Ø4mm (📦 #5209)
1 object(s) - format STL (4.0/5) 1 vote(s)
3D honeycomb protective rectangular grid file in STL format. Mounting holes are placed at the four corners (center-to-center 170x160 mm), each with a diameter of Ø4 mm. The overall dimensions reach 178x168 mm, with wide 8 mm cell size for optimal air circulation. This grid acts as a protective guard while allowing airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 170 | mm |
| width or center-to-center | 160 | mm |
| mesh size | 8 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 4 | mm |
Honeycomb grille STL 3D file, center-to-center: 126x63mm, mesh: 10mm - Ø4mm (📦 #5637)
1 object(s) - format STL
Download this rectangular grid file in STL format. Mounting holes are placed at the four corners (center-to-center 126x63 mm), each with a diameter of Ø4 mm. The overall dimensions reach 134x71 mm, with very large 10 mm cell size for peak ventilation. This type of grid serves both protection and ventilation roles.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 126 | mm |
| width or center-to-center | 63 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 4 | mm |
Protective grid STL 3D file, center-to-center: 212x92mm, mesh: 5mm - Ø4mm (📦 #7694)
1 object(s) - format STL
Download this 3D honeycomb rectangular grid as a STL file. Mounting holes are placed at the four corners (center-to-center 212x92 mm), each with a diameter of Ø4 mm. The overall dimensions reach 220x100 mm, with medium 5 mm cell size for balanced airflow and protection. This grid functions as both a mechanical guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 212 | mm |
| width or center-to-center | 92 | mm |
| mesh size | 5 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 4 | mm |
Protective grid STL 3D file, center-to-center: 130x110mm, mesh: 6mm - Ø4mm (📦 #4369)
1 object(s) - format STL
Download this 3D rectangular protective grid model in STL format. Mounting holes are placed at the four corners (center-to-center 130x110 mm), each with a diameter of Ø4 mm. The overall dimensions reach 138x118 mm, with open 6 mm cell size for optimal air circulation. This grid provides both mechanical protection and airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 130 | mm |
| width or center-to-center | 110 | mm |
| mesh size | 6 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 4 | mm |
Honeycomb grid STL file, center-to-center: 144x123mm, mesh: 6mm - Ø3mm (📦 #3568)
1 object(s) - format STL
3D honeycomb rectangular grid file in STL format. Mounting holes are placed at the four corners (center-to-center 144x123 mm), each with a diameter of Ø3 mm. The overall dimensions reach 150x129 mm, with open 6 mm cell size to enhance ventilation. This type of grid provides mechanical protection and ventilation.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 144 | mm |
| width or center-to-center | 123 | mm |
| mesh size | 6 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 3 | mm |
