Custom Honeycomb grille STL file, center-to-center: 144x70mm, mesh: 6mm - Ø3mm 📦#3624
Generation date: 2025-11-25
3D model download
Free- honeycomb-grid-loc144mm-woc70m_model3624-nb0_dd{id}.stl : 500.5 Ko
STL
Mesh quality :
0.001
0.1
No compliance warranty
License: ITE IPU v1.0 - Iteration3d
(Internal and private use, non-commercial – no distribution – no derivatives)
Safe download
Values for this model
This model was generated by the Honeycomb grid / fan guard template, with the following values:
| Parameter | Value | |
|---|---|---|
| #1 | length or center-to-center | 144 mm (≃5.67 in) |
| #2 | width or center-to-center | 70 mm (≃2 3/4 in) |
| #3 | mesh size | 6 mm (≃1/4 in) |
| #4 | dual color | no |
| #5 | holes | yes |
| #6 | hole diameter | 3 mm (≃1/8 in) |
| Metadata | Value |
|---|---|
| total length | 150 mm (≃5.91 in) |
| total width | 76 mm (≃3 in) |
| thickness | 2 mm (≃0.08 in) |
Parameter overview
The thickness of the walls forming the honeycomb structure is 1.2 mm.
- When no holes are present, the width of the outer band is 1.5 mm.
- When holes are present, the width of the outer band is equal to half the hole diameter.
When holes are present, the boss (reinforcing collar around the holes) has a diameter equal to twice the hole diameter.
When holes are present, the distance between the center of a hole and the outer edge of the frame is equal to the hole diameter.
The grid thickness is fixed at 2 mm.
The outer rim features a 1 mm rounded edge (fillet) on all four corners.
When the dual color parameter is enabled, the external band has a width equal to 30% of the hole diameter (0.9 mm when no holes are present).
Labels are used in the naming of the downloaded 3D files.
| Parameter | Label |
|---|---|
| #1 length or center-to-center | loc |
| #2 width or center-to-center | woc |
| #3 mesh size | mes |
| #4 dual color | duaC |
| #5 holes | hol |
| #6 hole diameter | hod |
Related 3D models
To search for a model based on your own parameters, go to the template page Honeycomb grid / fan guard

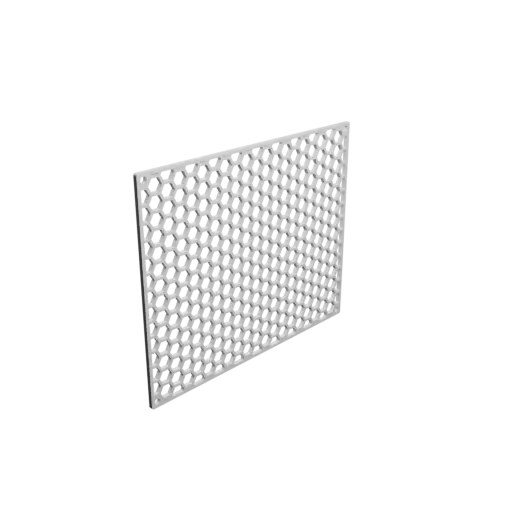

Honeycomb grille STL 3D file, center-to-center: 123x100mm, mesh: 6mm - Ø3mm (📦 #3628)
1 object(s) - format STL
Download this 3D honeycomb rectangular grid model in STL format. Mounting holes are placed at the four corners (center-to-center 123x100 mm), each with a diameter of Ø3 mm. The overall dimensions reach 129x106 mm, with large 6 mm cell size to maximize airflow. This type of grid serves both protection and ventilation roles.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 123 | mm |
| width or center-to-center | 100 | mm |
| mesh size | 6 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 3 | mm |
Honeycomb grille STL file, center-to-center: 100x70mm, mesh: 6mm - Ø3mm (📦 #3735)
1 object(s) - format STL
Download this rectangular protective grid model in STL format. Mounting holes are placed at the four corners (center-to-center 100x70 mm), each with a diameter of Ø3 mm. The overall dimensions reach 106x76 mm, with open 6 mm cell size for optimal air circulation. This type of grid serves both protection and ventilation roles.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 100 | mm |
| width or center-to-center | 70 | mm |
| mesh size | 6 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 3 | mm |

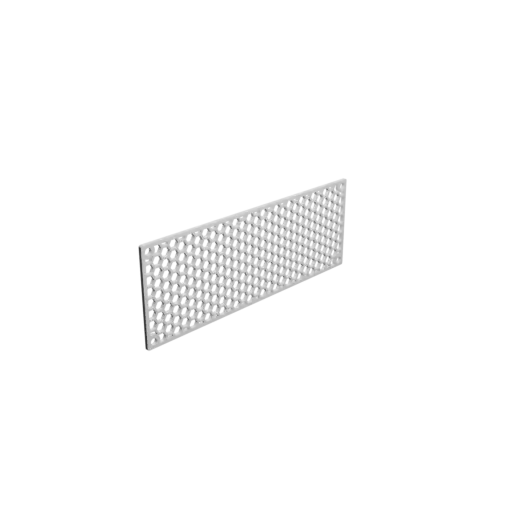

Honeycomb grid STL 3D file, center-to-center: 150x50mm, mesh: 5mm - Ø4mm (📦 #6229)
1 object(s) - format STL
Download this rectangular protective honeycomb grid as a STL file. Mounting holes are placed at the four corners (center-to-center 150x50 mm), each with a diameter of Ø4 mm. The overall dimensions reach 158x58 mm, with standard 5 mm cell size for versatile use. This grid provides both mechanical protection and airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 150 | mm |
| width or center-to-center | 50 | mm |
| mesh size | 5 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 4 | mm |
Protective grid STL 3D file, center-to-center: 132x42mm, mesh: 5mm - Ø4mm (📦 #4738)
1 object(s) - format STL
Download this 3D rectangular protective grid as a STL file. Mounting holes are placed at the four corners (center-to-center 132x42 mm), each with a diameter of Ø4 mm. The overall dimensions reach 140x50 mm, with standard 5 mm cell size for versatile use. This type of grid provides mechanical protection and ventilation.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 132 | mm |
| width or center-to-center | 42 | mm |
| mesh size | 5 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 4 | mm |
Protective grid STL 3D file, center-to-center: 130x110mm, mesh: 6mm - Ø4mm (📦 #4369)
1 object(s) - format STL
Download this 3D rectangular protective grid model in STL format. Mounting holes are placed at the four corners (center-to-center 130x110 mm), each with a diameter of Ø4 mm. The overall dimensions reach 138x118 mm, with open 6 mm cell size for optimal air circulation. This grid provides both mechanical protection and airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 130 | mm |
| width or center-to-center | 110 | mm |
| mesh size | 6 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 4 | mm |
Honeycomb grille STL file, center-to-center: 108x73mm, mesh: 5mm - Ø4mm (📦 #4257)
1 object(s) - format STL
Rectangular grid model as a STL file. Mounting holes are placed at the four corners (center-to-center 108x73 mm), each with a diameter of Ø4 mm. The overall dimensions reach 116x81 mm, with regular 5 mm cell size for balanced airflow and protection. This grid serves as both a protective guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 108 | mm |
| width or center-to-center | 73 | mm |
| mesh size | 5 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 4 | mm |
Honeycomb grille STL 3D file, center-to-center: 94x70mm, mesh: 5mm - Ø3mm (📦 #3489)
1 object(s) - format STL
Rectangular protective honeycomb grid file in STL format. Mounting holes are placed at the four corners (center-to-center 94x70 mm), each with a diameter of Ø3 mm. The overall dimensions reach 100x76 mm, with regular 5 mm cell size for versatile use. This grid serves as both a protective guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 94 | mm |
| width or center-to-center | 70 | mm |
| mesh size | 5 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 3 | mm |
Honeycomb grid STL file, center-to-center: 144x123mm, mesh: 6mm - Ø3mm (📦 #3568)
1 object(s) - format STL
3D honeycomb rectangular grid file in STL format. Mounting holes are placed at the four corners (center-to-center 144x123 mm), each with a diameter of Ø3 mm. The overall dimensions reach 150x129 mm, with open 6 mm cell size to enhance ventilation. This type of grid provides mechanical protection and ventilation.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 144 | mm |
| width or center-to-center | 123 | mm |
| mesh size | 6 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 3 | mm |
Honeycomb grid STL 3D file, center-to-center: 100x100mm, mesh: 5mm - Ø3mm (📦 #2951)
1 object(s) - format STL
3D square protective honeycomb grid file in STL format. Mounting holes are placed at the four corners (center-to-center 100x100 mm), each with a diameter of Ø3 mm. The overall dimensions reach 106x106 mm, with medium 5 mm cell size for balanced airflow and protection. This type of grid provides mechanical protection and ventilation.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 100 | mm |
| width or center-to-center | 100 | mm |
| mesh size | 5 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 3 | mm |
Honeycomb grid STL file, center-to-center: 100x100mm, mesh: 7mm - Ø3mm (📦 #6386)
1 object(s) - format STL
Download this square grid as a STL file. Mounting holes are placed at the four corners (center-to-center 100x100 mm), each with a diameter of Ø3 mm. The overall dimensions reach 106x106 mm, with large 7 mm cell size to maximize airflow. This type of grid serves both protection and ventilation roles.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 100 | mm |
| width or center-to-center | 100 | mm |
| mesh size | 7 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 3 | mm |
Honeycomb grid STL 3D file, center-to-center: 93x93mm, mesh: 5mm - Ø3mm (📦 #7673)
1 object(s) - format STL
Honeycomb protective square grid file in STL format. Mounting holes are placed at the four corners (center-to-center 93x93 mm), each with a diameter of Ø3 mm. The overall dimensions reach 99x99 mm, with regular 5 mm cell size for balanced airflow and protection. This grid provides both mechanical protection and airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 93 | mm |
| width or center-to-center | 93 | mm |
| mesh size | 5 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 3 | mm |
Honeycomb grid STL file, center-to-center: 120x120mm, mesh: 5mm - Ø3mm (📦 #5639)
1 object(s) - format STL
3D fan guard model in STL format. Mounting holes are placed at the four corners (center-to-center 120x120 mm), each with a diameter of Ø3 mm. The overall dimensions reach 126x126 mm, with medium 5 mm cell size for versatile use. This type of grid serves both protection and ventilation roles.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 120 | mm |
| width or center-to-center | 120 | mm |
| mesh size | 5 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 3 | mm |
Honeycomb grid STL 3D file, center-to-center: 130x130mm, mesh: 6mm - Ø3mm (📦 #5758)
1 object(s) - format STL
Download this fan guard model in STL format. Mounting holes are placed at the four corners (center-to-center 130x130 mm), each with a diameter of Ø3 mm. The overall dimensions reach 136x136 mm, with large 6 mm cell size for optimal air circulation. This grid serves as both a protective guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 130 | mm |
| width or center-to-center | 130 | mm |
| mesh size | 6 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 3 | mm |
Honeycomb grille STL file, center-to-center: 110x110mm, mesh: 5mm - Ø4mm (📦 #2981)
1 object(s) - format STL
Square protective honeycomb grid model in STL format. Mounting holes are placed at the four corners (center-to-center 110x110 mm), each with a diameter of Ø4 mm. The overall dimensions reach 118x118 mm, with medium 5 mm cell size for versatile use. This grid acts as a protective guard while allowing airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 110 | mm |
| width or center-to-center | 110 | mm |
| mesh size | 5 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 4 | mm |
Honeycomb grid STL 3D file, center-to-center: 150x48mm, mesh: 4mm - Ø4mm (📦 #7790)
1 object(s) - format STL
3D rectangular grid file in STL format. Mounting holes are placed at the four corners (center-to-center 150x48 mm), each with a diameter of Ø4 mm. The overall dimensions reach 158x56 mm, with standard 4 mm cell size for balanced airflow and protection. This grid provides both mechanical protection and airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 150 | mm |
| width or center-to-center | 48 | mm |
| mesh size | 4 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 4 | mm |
Honeycomb grid STL file, center-to-center: 134x48mm, mesh: 8mm - Ø4mm (📦 #4739)
1 object(s) - format STL
Download this 3D rectangular protective honeycomb grid model in STL format. Mounting holes are placed at the four corners (center-to-center 134x48 mm), each with a diameter of Ø4 mm. The overall dimensions reach 142x56 mm, with wide 8 mm cell size for optimal air circulation. This grid serves as both a protective guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 134 | mm |
| width or center-to-center | 48 | mm |
| mesh size | 8 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 4 | mm |

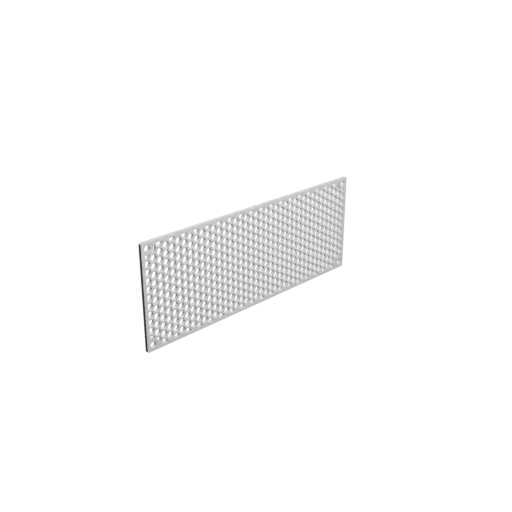

Honeycomb grille STL file, center-to-center: 170x60mm, mesh: 4mm - Ø4mm (📦 #5191)
