Tubing adapter STL file ⌀ 163–154 mm (Length: 100 mm) 📦#2657

STL Download STL
Create a new model:
from scratch search for a model

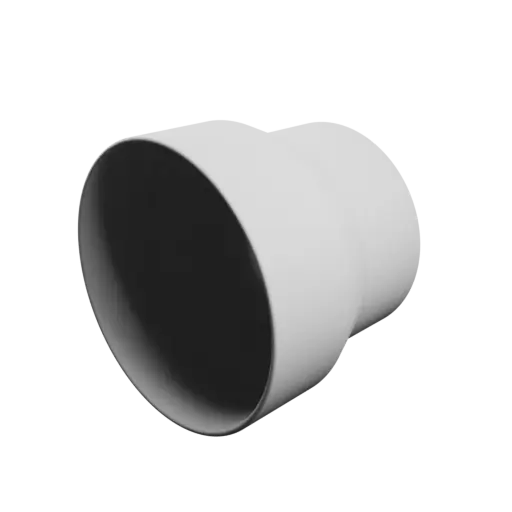

Inline tube coupler ⌀163 mm to ⌀154 mm in STL 3D format. Length of this sleeve is 100 mm. The thickness of the tubes is identical: 2.5 mm. The larger-diameter tube has a length of 50 mm, the smaller one of 40 mm. The ends are rounded on the outside to ease the connection.
Generation date: 2025-10-22
3D Model Tubing adapter STL file ⌀ 163–154 mm (Length: 100 mm)

3D model download

Free
  • inline-tube-adapter-lenA50mm-d_model2657-nb0_dd{id}.stl : 8.9 Mo
STL Mesh quality : Linear deflection 0.05 Angular deflection 0.05
No compliance warranty No compliance warranty
(attribution - commercial use allowed)
Safe download

Values for this model

This model was generated by the Inline tube adapter template, with the following values:
Parameter Value
#1 side A length 50 mm
#2 side A outer diameter 163 mm
#3 side A thickness 2.5 mm
#4 side B length 40 mm
#5 side B outer diameter 154 mm
#6 side B thickness 2.5 mm
#7 transition length 10 mm
#8 axis offset 0 mm
#9 ends fillet fillet on the outside
Metadata Value
inner diameter (side A) 158 mm
inner diameter (side B) 149 mm
total length 100 mm
illustration of the parameters
Representation of the parameters

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 side A length lenA
#2 side A outer diameter diA
#3 side A thickness thA
#4 side B length lenB
#5 side B outer diameter diB
#6 side B thickness thB
#7 transition length tra
#8 axis offset ofs
#9 ends fillet fil
