Custom Tube adapter STL 3D file ⌀ 159–117 mm (Length: 105 mm) 📦#2291

STL Download STL 2
Create a new model:
from scratch search for a model
Straight sleeve ⌀159 mm to ⌀117 mm in STL format. Total length of this sleeve is 105 mm. The thickness of the tubes is identical: 3 mm. The larger-diameter tube has a length of 50 mm, the smaller one of 50 mm as well. The ends have no fillet.
Generation date: 2025-10-08

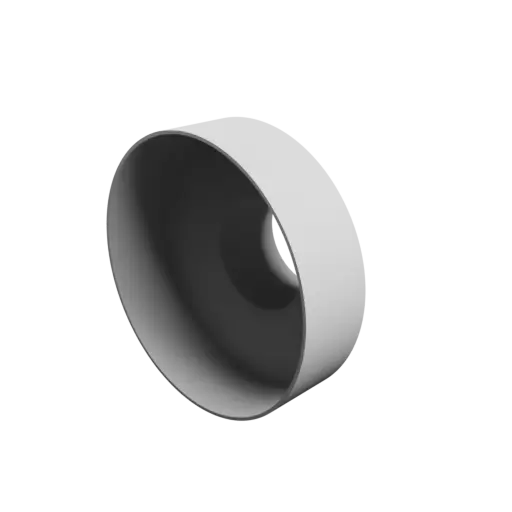

3D Model Tube adapter STL 3D file ⌀ 159–117 mm (Length: 105 mm)

3D model download

Free
  • inline-tube-adapter-lenA50mm-d_model2291-nb0_dd{id}.stl : 9.4 Mo
STL Mesh quality : Linear deflection 0.05 Angular deflection 0.05
No compliance warranty No compliance warranty
(attribution - commercial use allowed)
Safe download
Instant .zip download — no email, no account

Values for this model

This model was generated by the Inline tube adapter template, with the following values:
Parameter Value
#1 side A length 50 mm (≃1.97 in)
#2 side A outer diameter 159 mm (≃6 1/4 in)
#3 side A thickness 3 mm (≃1/8 in)
#4 side B length 50 mm (≃1.97 in)
#5 side B outer diameter 117 mm (≃4.61 in)
#6 side B thickness 3 mm (≃1/8 in)
#7 transition length 5 mm (≃3/16 in)
#8 axis offset 0 mm (0 in)
#9 ends fillet no fillet
Metadata Value
inner diameter (side A) 153 mm (≃6.02 in)
inner diameter (side B) 111 mm (≃4 3/8 in)
total length 105 mm (≃4 1/8 in)
illustration of the parameters
Parameter overview

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 side A length lenA
#2 side A outer diameter diA
#3 side A thickness thA
#4 side B length lenB
#5 side B outer diameter diB
#6 side B thickness thB
#7 transition length tra
#8 axis offset ofs
#9 ends fillet fil
