Custom Tube adapter STL file ⌀ 123–58 mm (Length: 85 mm) 📦#2027

STL Download STL 1
Create a new model expert
from scratch search for a model

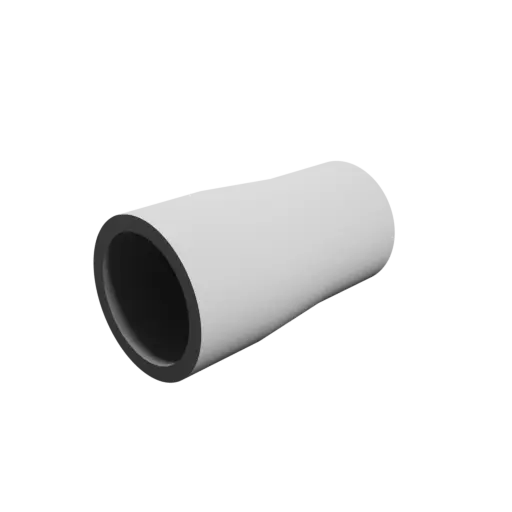

Tube fitting ⌀123 mm to ⌀58 mm in STL format. Length of this sleeve is 85 mm. The larger-diameter tube has a thickness of 5 mm and a length of 25 mm. The smaller-diameter tube has a thickness of 4 mm and a length of 25 mm as well. The ends are not rounded.
Generation date: 2025-09-27
3D Model Tube adapter STL file ⌀ 123–58 mm (Length: 85 mm)

3D model download

Free
  • inline-tube-adapter-lenA25mm-d_model2027-nb0_dd{id}.stl : 2.7 Mo
STL Mesh quality : Linear deflection 0.05 Angular deflection 0.05
No compliance warranty No compliance warranty
(attribution - commercial use allowed)
Safe download
Instant .zip download — no email, no account

Values for this model

This model was generated by the Inline tube adapter template, with the following values:
Parameter Value
#1 side A length 25 mm (≃0.98 in)
#2 side A outer diameter 123 mm (≃4.84 in)
#3 side A thickness 5 mm (≃3/16 in)
#4 side B length 25 mm (≃0.98 in)
#5 side B outer diameter 58 mm (≃2.28 in)
#6 side B thickness 4 mm (≃0.16 in)
#7 transition length 35 mm (≃1 3/8 in)
#8 axis offset 0 mm (0 in)
#9 ends fillet no fillet
Metadata Value
inner diameter (side A) 113 mm (≃4 7/16 in)
inner diameter (side B) 50 mm (≃1.97 in)
total length 85 mm (≃3.35 in)
illustration of the parameters
Parameter overview

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 side A length lenA
#2 side A outer diameter diA
#3 side A thickness thA
#4 side B length lenB
#5 side B outer diameter diB
#6 side B thickness thB
#7 transition length tra
#8 axis offset ofs
#9 ends fillet fil
