Tube adapter STL 3D file ⌀ 105–80 mm (Length: 63 mm) 📦#2383

STL Download STL
Create a new model:
from scratch search for a model

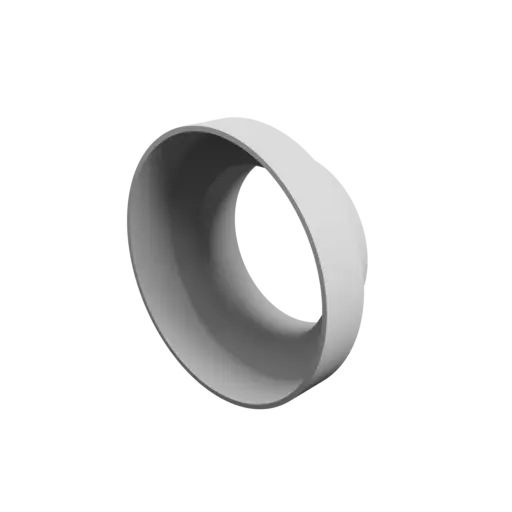

Tube adapter ⌀105 mm to ⌀80 mm in STL 3D format. Length of this connector is 63 mm. The thickness of the tubes is identical: 4 mm. The larger-diameter tube has a sleeve length of 25 mm, the smaller one of 25 mm as well. The ends are not rounded.
Generation date: 2025-10-12
3D Model Tube adapter STL 3D file ⌀ 105–80 mm (Length: 63 mm)

3D model download

Free
  • inline-tube-adapter-lenA25mm-d_model2383-nb0_dd{id}.stl : 2.6 Mo
STL Mesh quality : Linear deflection 0.05 Angular deflection 0.05
No compliance warranty No compliance warranty
(attribution - commercial use allowed)
Safe download

Values for this model

This model was generated by the Inline tube adapter template, with the following values:
Parameter Value
#1 side A length 25 mm
#2 side A outer diameter 105 mm
#3 side A thickness 4 mm
#4 side B length 25 mm
#5 side B outer diameter 80 mm
#6 side B thickness 4 mm
#7 transition length 13 mm
#8 axis offset 0 mm
#9 ends fillet no fillet
illustration of the parameters
Representation of the parameters

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 side A length lenA
#2 side A outer diameter diA
#3 side A thickness thA
#4 side B length lenB
#5 side B outer diameter diB
#6 side B thickness thB
#7 transition length tra
#8 axis offset ofs
#9 ends fillet fil
