Custom Tube adapter STL 3D file ⌀ 55–35 mm (Length: 50 mm) 📦#3882

STL Download STL 1
Create a new model expert
from scratch search for a model
Straight sleeve ⌀55 mm to ⌀35 mm in STL format. Final length of this sleeve is 50 mm. The larger-diameter tube has a thickness of 4 mm and a sleeve length of 25 mm. The smaller-diameter tube has a thickness of 3 mm and a length of 20 mm. The ends are rounded on the outside to make tube connection easier.
Generation date: 2025-11-27
3D Model Tube adapter STL 3D file ⌀ 55–35 mm (Length: 50 mm)

3D model download

Free
  • inline-tube-adapter-lenA25mm-d_model3882-nb0_dd{id}.stl : 8.4 Mo
STL Mesh quality : Linear deflection 0.05 Angular deflection 0.05
No compliance warranty No compliance warranty
(attribution - commercial use allowed)
Safe download
Instant .zip download — no email, no account

Values for this model

This model was generated by the Inline tube adapter template, with the following values:
Parameter Value
#1 side A length 25 mm (≃0.98 in)
#2 side A outer diameter 55 mm (≃2.17 in)
#3 side A thickness 4 mm (≃0.16 in)
#4 side B length 20 mm (≃0.79 in)
#5 side B outer diameter 35 mm (≃1 3/8 in)
#6 side B thickness 3 mm (≃1/8 in)
#7 transition length 5 mm (≃3/16 in)
#8 axis offset 0 mm (0 in)
#9 ends fillet fillet on the outside
Metadata Value
inner diameter (side A) 47 mm (≃1.85 in)
inner diameter (side B) 29 mm (≃1.14 in)
total length 50 mm (≃1.97 in)
illustration of the parameters
Parameter overview

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 side A length lenA
#2 side A outer diameter diA
#3 side A thickness thA
#4 side B length lenB
#5 side B outer diameter diB
#6 side B thickness thB
#7 transition length tra
#8 axis offset ofs
#9 ends fillet fil

Related 3D models

To search for a model based on your own parameters, go to the template page Inline tube adapter

Tube adapter STL file ⌀ 50–40 mm (Length: 45 mm) (📦 #1094)

1 object(s) - format STL (5.0/5) 4 vote(s)
Tube adapter STL file ⌀ 50–40 mm (Length: 45 mm)
Straight tube reducer ⌀50 mm to ⌀40 mm in STL 3D format. Total length of this reducer is 45 mm. The larger-diameter tube has a thickness of 4 mm and a sleeve length of 20 mm. The smaller-diameter tube has a thickness of 3 mm and a length of 20 mm as well. The ends are rounded on the outside to ease the connection.
Parameter Value Unit
side A length 20 mm
side A outer diameter 50 mm
side A thickness 4 mm
side B length 20 mm
side B outer diameter 40 mm
side B thickness 3 mm
transition length 5 mm
axis offset 0 mm
ends fillet fillet on th...

Tube adapter STL 3D file ⌀ 45–25 mm (Length: 45 mm) (📦 #2421)

1 object(s) - format STL
Tube adapter STL 3D file ⌀ 45–25 mm (Length: 45 mm)
Straight sleeve ⌀45 mm to ⌀25 mm in STL 3D format. Length of this coupler is 45 mm. The larger-diameter tube has a thickness of 4 mm and a sleeve length of 20 mm. The smaller-diameter tube has a thickness of 3 mm and a length of 20 mm as well. The ends feature an external fillet.
Parameter Value Unit
side A length 20 mm
side A outer diameter 45 mm
side A thickness 4 mm
side B length 20 mm
side B outer diameter 25 mm
side B thickness 3 mm
transition length 5 mm
axis offset 0 mm
ends fillet fillet on th...

Tubing adapter STL 3D file ⌀ 62–51 mm (Length: 45 mm) (📦 #7928)

1 object(s) - format STL
Tubing adapter STL 3D file ⌀ 62–51 mm (Length: 45 mm)
Inline tube adapter ⌀62 mm to ⌀51 mm in STL format. Total length of this sleeve is 45 mm. The larger-diameter tube has a thickness of 4 mm and a sleeve length of 20 mm. The smaller-diameter tube has a thickness of 3 mm and a length of 20 mm as well. The axes of the tubes are off-center by 0.1 mm. The ends are rounded on the outside.
Parameter Value Unit
side A length 20 mm
side A outer diameter 62 mm
side A thickness 4 mm
side B length 20 mm
side B outer diameter 51 mm
side B thickness 3 mm
transition length 5 mm
axis offset 0.1 mm
ends fillet fillet on th...

Tube adapter STL 3D file ⌀ 40–36 mm (Length: 45 mm) (📦 #5726)

1 object(s) - format STL
Tube adapter STL 3D file ⌀ 40–36 mm (Length: 45 mm)
Inline tube junction ⌀40 mm to ⌀36 mm in STL format. Length of this sleeve is 45 mm. The thickness of the tubes is identical: 4 mm. The larger-diameter tube has a length of 20 mm, the smaller one of 20 mm as well. The ends feature an external fillet to make tube connection easier.
Parameter Value Unit
side A length 20 mm
side A outer diameter 40 mm
side A thickness 4 mm
side B length 20 mm
side B outer diameter 36 mm
side B thickness 4 mm
transition length 5 mm
axis offset 0 mm
ends fillet fillet on th...

Tube adapter STL 3D file ⌀ 71–50 mm (Length: 70 mm) (📦 #8588)

1 object(s) - format STL
Tube adapter STL 3D file ⌀ 71–50 mm (Length: 70 mm)
Inline sleeve ⌀71 mm to ⌀50 mm in STL 3D format. Final length of this adapter is 70 mm. The thickness of the tubes is identical: 3 mm. The larger-diameter tube has a length of 30 mm, the smaller one of 30 mm as well. The ends are rounded on the outside to ease the connection.
Parameter Value Unit
side A length 30 mm
side A outer diameter 71 mm
side A thickness 3 mm
side B length 30 mm
side B outer diameter 50 mm
side B thickness 3 mm
transition length 10 mm
axis offset 0 mm
ends fillet fillet on th...

Tube adapter STL 3D file ⌀ 62–55 mm (Length: 65 mm) (📦 #7948)

1 object(s) - format STL
Tube adapter STL 3D file ⌀ 62–55 mm (Length: 65 mm)
Tubing adapter ⌀62 mm to ⌀55 mm in STL 3D format. Final length of this adapter is 65 mm. The larger-diameter tube has a thickness of 4 mm and a length of 20 mm. The smaller-diameter tube has a thickness of 3 mm and a length of 40 mm. The ends feature an external fillet to make tube connection easier.
Parameter Value Unit
side A length 20 mm
side A outer diameter 62 mm
side A thickness 4 mm
side B length 40 mm
side B outer diameter 55 mm
side B thickness 3 mm
transition length 5 mm
axis offset 0 mm
ends fillet fillet on th...

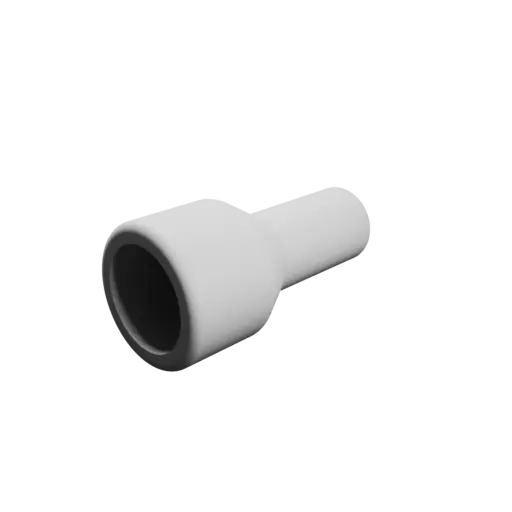

Tubing adapter STL file ⌀ 30–18 mm (Length: 60 mm) (📦 #3528)
