Custom Tube adapter STL file ⌀ 250–50 mm (Length: 80 mm) 📦#3849

STL Download STL
Create a new model:
from scratch search for a model
Straight tube connector ⌀250 mm to ⌀50 mm in STL 3D format. Final length of this coupler is 80 mm. The larger-diameter tube has a thickness of 5 mm and a length of 30 mm. The smaller-diameter tube has a thickness of 3 mm and a length of 30 mm as well. The ends are raw.
Generation date: 2025-11-26
3D Model Tube adapter STL file ⌀ 250–50 mm (Length: 80 mm)

3D model download

Free
  • inline-tube-adapter-lenA30mm-d_model3849-nb0_dd{id}.stl : 9.6 Mo
STL Mesh quality : Linear deflection 0.05 Angular deflection 0.05
No compliance warranty No compliance warranty
(attribution - commercial use allowed)
Safe download
Instant .zip download — no email, no account

Values for this model

This model was generated by the Inline tube adapter template, with the following values:
Parameter Value
#1 side A length 30 mm (≃1 3/16 in)
#2 side A outer diameter 250 mm (≃9.84 in)
#3 side A thickness 5 mm (≃3/16 in)
#4 side B length 30 mm (≃1 3/16 in)
#5 side B outer diameter 50 mm (≃1.97 in)
#6 side B thickness 3 mm (≃1/8 in)
#7 transition length 20 mm (≃0.79 in)
#8 axis offset 0 mm (0 in)
#9 ends fillet no fillet
Metadata Value
inner diameter (side A) 240 mm (≃9 7/16 in)
inner diameter (side B) 44 mm (≃1.73 in)
total length 80 mm (≃3.15 in)
illustration of the parameters
Parameter overview

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 side A length lenA
#2 side A outer diameter diA
#3 side A thickness thA
#4 side B length lenB
#5 side B outer diameter diB
#6 side B thickness thB
#7 transition length tra
#8 axis offset ofs
#9 ends fillet fil

Related 3D models

To search for a model based on your own parameters, go to the template page Inline tube adapter

Tube adapter STL file ⌀ 200–50 mm (Length: 80 mm) (📦 #1483)

1 object(s) - format STL
Tube adapter STL file ⌀ 200–50 mm (Length: 80 mm)
Tube reducer ⌀200 mm to ⌀50 mm in STL 3D format. Total length of this junction is 80 mm. The thickness of the tubes is identical: 3 mm. The larger-diameter tube has a sleeve length of 30 mm, the smaller one of 30 mm as well. The ends have no fillet.
Parameter Value Unit
side A length 30 mm
side A outer diameter 200 mm
side A thickness 3 mm
side B length 30 mm
side B outer diameter 50 mm
side B thickness 3 mm
transition length 20 mm
axis offset 0 mm
ends fillet no fillet

Tube adapter STL file ⌀ 225–80 mm (Length: 45 mm) (📦 #2952)

1 object(s) - format STL
Tube adapter STL file ⌀ 225–80 mm (Length: 45 mm)
Inline tube junction ⌀225 mm to ⌀80 mm in STL 3D format. Final length of this fitting is 45 mm. The larger-diameter tube has a thickness of 4 mm and a sleeve length of 20 mm. The smaller-diameter tube has a thickness of 3 mm and a length of 20 mm as well. The axes of the tubes are offset by 1 mm. The ends have a fillet on the outside.
Parameter Value Unit
side A length 20 mm
side A outer diameter 225 mm
side A thickness 4 mm
side B length 20 mm
side B outer diameter 80 mm
side B thickness 3 mm
transition length 5 mm
axis offset 1 mm
ends fillet fillet on th...

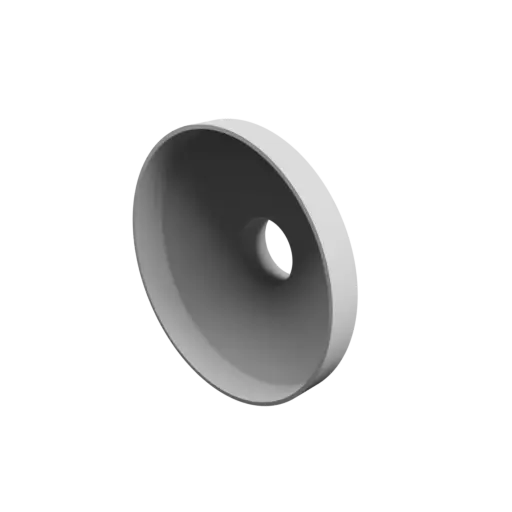

Tube adapter STL 3D file ⌀ 198–56 mm (Length: 70 mm) (📦 #3101)
