Inline tube junction ⌀200 mm to ⌀150 mm in STL format. Length of this connector is 200 mm. The thickness of the tubes is identical: 5 mm. The larger-diameter tube has a length of 50 mm, the smaller one of 50 mm as well. The ends are not rounded.
Generation date: 2025-10-27
3D Model Tubing adapter STL 3D file ⌀ 200–150 mm (Length: 200 mm)

3D model download

Free
  • inline-tube-adapter-lenA50mm-d_model2825-nb0_dd{id}.stl : 1.6 Mo
STL Mesh quality : Linear deflection 0.05 Angular deflection 0.05
No compliance warranty No compliance warranty
(attribution - commercial use allowed)
Safe download
Instant .zip download — no email, no account

Values for this model

This model was generated by the Inline tube adapter template, with the following values:
Parameter Value
#1 side A length 50 mm (≃1.97 in)
#2 side A outer diameter 200 mm (≃7 7/8 in)
#3 side A thickness 5 mm (≃3/16 in)
#4 side B length 50 mm (≃1.97 in)
#5 side B outer diameter 150 mm (≃5.91 in)
#6 side B thickness 5 mm (≃3/16 in)
#7 transition length 100 mm (≃3 15/16 in)
#8 axis offset 0 mm (0 in)
#9 ends fillet no fillet
Metadata Value
inner diameter (side A) 190 mm (≃7.48 in)
inner diameter (side B) 140 mm (≃5 1/2 in)
total length 200 mm (≃7 7/8 in)
illustration of the parameters
Parameter overview

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 side A length lenA
#2 side A outer diameter diA
#3 side A thickness thA
#4 side B length lenB
#5 side B outer diameter diB
#6 side B thickness thB
#7 transition length tra
#8 axis offset ofs
#9 ends fillet fil

Related 3D models

To search for a model based on your own parameters, go to the template page Inline tube adapter

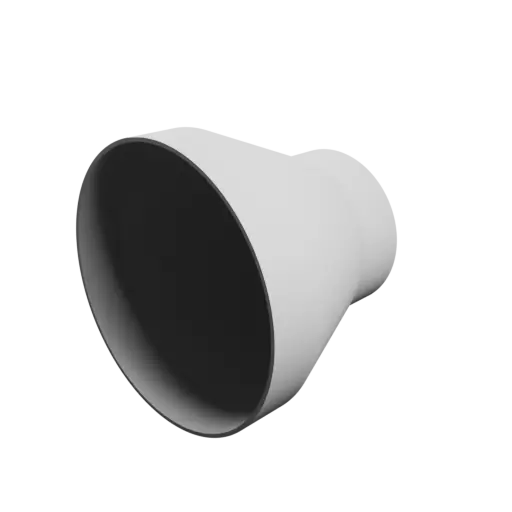

Tubing adapter STL file ⌀ 211–131 mm (Length: 180 mm) (📦 #3215)

1 object(s) - format STL
Tubing adapter STL file ⌀ 211–131 mm (Length: 180 mm)
Inline tube adapter ⌀211 mm to ⌀131 mm in STL format. Final length of this sleeve is 180 mm. The thickness of the tubes is identical: 3 mm. The larger-diameter tube has a sleeve length of 40 mm, the smaller one of 40 mm as well. The ends are raw.
Parameter Value Unit
side A length 40 mm
side A outer diameter 211 mm
side A thickness 3 mm
side B length 40 mm
side B outer diameter 131 mm
side B thickness 3 mm
transition length 100 mm
axis offset 0 mm
ends fillet no fillet

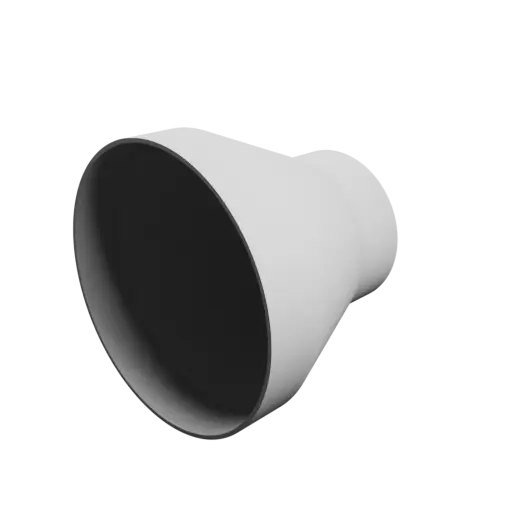

Tubing adapter STL file ⌀ 205–125 mm (Length: 180 mm) (📦 #3191)

1 object(s) - format STL
Tubing adapter STL file ⌀ 205–125 mm (Length: 180 mm)
Inline tube reducer ⌀205 mm to ⌀125 mm in STL 3D format. Total length of this connector is 180 mm. The thickness of the tubes is identical: 3 mm. The larger-diameter tube has a length of 40 mm, the smaller one of 40 mm as well. The ends are raw.
Parameter Value Unit
side A length 40 mm
side A outer diameter 205 mm
side A thickness 3 mm
side B length 40 mm
side B outer diameter 125 mm
side B thickness 3 mm
transition length 100 mm
axis offset 0 mm
ends fillet no fillet

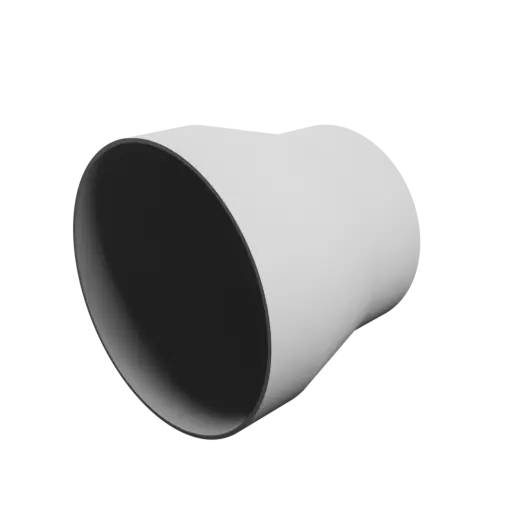

Tubing adapter STL 3D file ⌀ 205–165 mm (Length: 180 mm) (📦 #3159)

1 object(s) - format STL
Tubing adapter STL 3D file ⌀ 205–165 mm (Length: 180 mm)
Inline sleeve ⌀205 mm to ⌀165 mm in STL 3D format. Final length of this junction is 180 mm. The thickness of the tubes is identical: 3 mm. The larger-diameter tube has a length of 50 mm, the smaller one of 50 mm as well. The ends are raw.
Parameter Value Unit
side A length 50 mm
side A outer diameter 205 mm
side A thickness 3 mm
side B length 50 mm
side B outer diameter 165 mm
side B thickness 3 mm
transition length 80 mm
axis offset 0 mm
ends fillet no fillet

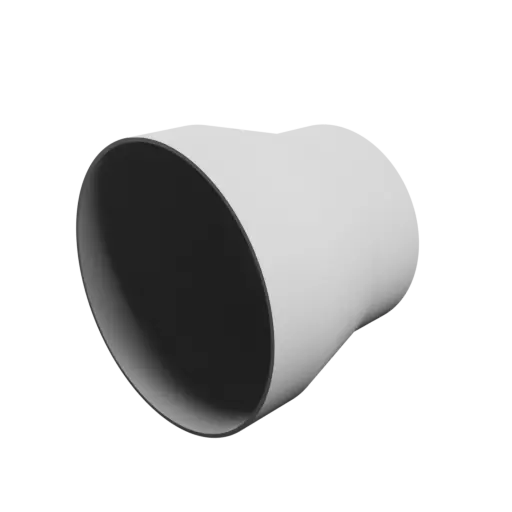

Tubing adapter STL file ⌀ 211–171 mm (Length: 180 mm) (📦 #3214)
