Custom Round-to-Rectangular Tube Adapter STL 3D file ⌀76 mm to 160×25 mm, thickness 3 mm + offset 📦#2258

STL Download STL 1
Create a new model:
from scratch search for a model

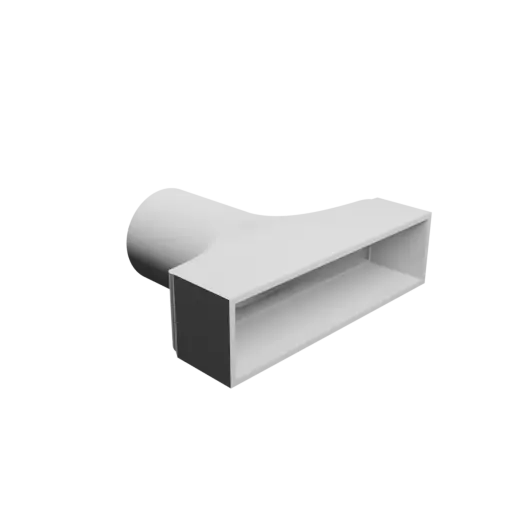

Model in STL format of a round-to-rectangular tube adapter with an outer diameter of ⌀76 mm and a rectangular section with inner dimensions 160×25 mm. The shell thickness is 3 mm and the overall length is 250 mm. The adapter has an offset of 25 mm along the Y axis and 25 mm along the Z axis.
Generation date: 2025-10-07
3D Model Round-to-Rectangular Tube Adapter STL 3D file ⌀76 mm to 160×25 mm, thickness 3 mm + offset

3D model download

Free
  • round-to-rectangular-adapter-d_model2258-nb0_dd{id}.stl : 1.4 Mo
STL Mesh quality : Linear deflection 0.0005 Angular deflection 0.05
No compliance warranty No compliance warranty
(Internal and private use, non-commercial – no distribution – no derivatives)
Safe download
Instant .zip download — no email, no account

Values for this model

This model was generated by the Round to rectangular adapter template, with the following values:
Parameter Value
#1 cylinder outer diameter 76 mm (≃3 in)
#2 cylinder inlet length 50 mm (≃1.97 in)
#3 rectangle internal length 160 mm (≃6 5/16 in)
#4 rectangle internal height 25 mm (≃0.98 in)
#5 rectangle inlet length 100 mm (≃3 15/16 in)
#6 offset Z 25 mm (≃0.98 in)
#7 offset Y 25 mm (≃0.98 in)
#8 total length 250 mm (≃9.84 in)
#9 thickness 3 mm (≃1/8 in)
#10 chamfer no chamfer
Metadata Value
Cylinder internal diameter 70 mm (≃2 3/4 in)
illustration of the parameters
Parameter overview

  • If the chamfer option on the ends is enabled, the chamfer length is equal to half the thickness.
  • The stop at the bottom of the rectangular section has a width equal to half the thickness.

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 cylinder outer diameter diaC
#2 cylinder inlet length lentC
#3 rectangle internal length lenIR
#4 rectangle internal height heiIR
#5 rectangle inlet length lentR
#6 offset Z ofsZ
#7 offset Y ofsY
#8 total length lenT
#9 thickness thi
#10 chamfer cha
