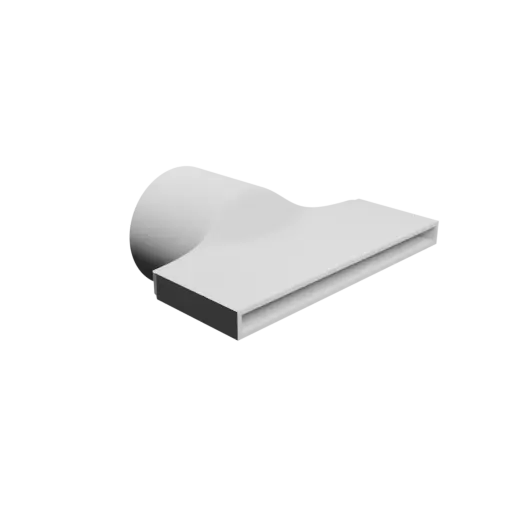

Custom Round-to-Rectangular Tube Adapter STL 3D file ⌀101.5 mm to 203×12.5 mm, thickness 3 mm + offset 📦#3681

STL Download STL
Create a new model:
from scratch search for a model
Download this model in STL format of a round-to-rectangular adapter with an external diameter of ⌀101.5 mm and a rectangular section with internal dimensions 203×12.5 mm. The wall thickness is 3 mm and the overall length is 180 mm. The adapter has an offset of 15 mm along the Z axis.
Generation date: 2025-11-25
3D Model Round-to-Rectangular Tube Adapter STL 3D file ⌀101.5 mm to 203×12.5 mm, thickness 3 mm + offset

3D model download

Free
  • round-to-rectangular-adapter-d_model3681-nb0_dd{id}.stl : 4.6 Mo
STL Mesh quality : Linear deflection 0.0005 Angular deflection 0.05
No compliance warranty No compliance warranty
(Internal and private use, non-commercial – no distribution – no derivatives)
Safe download

Values for this model

This model was generated by the Round to rectangular adapter template, with the following values:
Parameter Value
#1 cylinder outer diameter 101.5 mm (≃4 in)
#2 cylinder inlet length 75 mm (≃2 15/16 in)
#3 rectangle internal length 203 mm (≃8 in)
#4 rectangle internal height 12.5 mm (≃1/2 in)
#5 rectangle inlet length 75 mm (≃2 15/16 in)
#6 offset Z 15 mm (≃0.59 in)
#7 offset Y 0 mm (0 in)
#8 total length 180 mm (≃7.09 in)
#9 thickness 3 mm (≃1/8 in)
#10 chamfer no chamfer
Metadata Value
Cylinder internal diameter 95.5 mm (≃3 3/4 in)
illustration of the parameters
Parameter overview

  • If the chamfer option on the ends is enabled, the chamfer length is equal to half the thickness.
  • The stop at the bottom of the rectangular section has a width equal to half the thickness.

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 cylinder outer diameter diaC
#2 cylinder inlet length lentC
#3 rectangle internal length lenIR
#4 rectangle internal height heiIR
#5 rectangle inlet length lentR
#6 offset Z ofsZ
#7 offset Y ofsY
#8 total length lenT
#9 thickness thi
#10 chamfer cha
