Round-to-Rectangular Tube Adapter STL 3D file ⌀100 mm to 220×60 mm, thickness 3 mm 📦#1923

STL Download STL
Create a new model:
from scratch search for a model

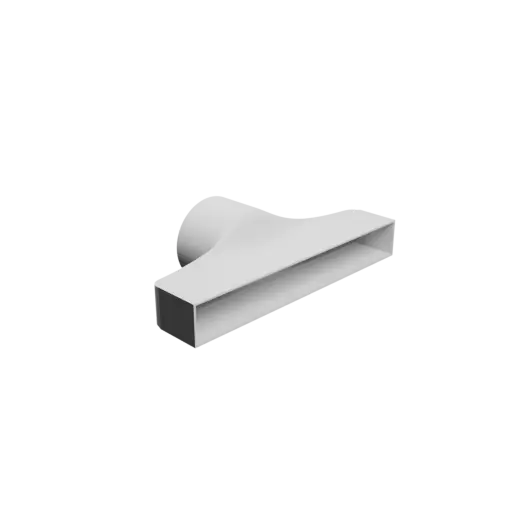

3D file in STL format of a round-to-rectangular tube adapter with an outer diameter of ⌀100 mm and a rectangular section with internal dimensions 220×60 mm. The wall thickness is 3 mm and the total length is 220 mm. A chamfer is present on the outside of the cylindrical end to ease insertion.
Generation date: 2025-09-22
3D Model Round-to-Rectangular Tube Adapter STL 3D file ⌀100 mm to 220×60 mm, thickness 3 mm

3D model download

Free
  • round-to-rectangular-adapter-d_model1923-nb0_dd{id}.stl : 1.9 Mo
STL Mesh quality : Linear deflection 0.0005 Angular deflection 0.05
No compliance warranty No compliance warranty
(Internal and private use, non-commercial – no distribution – no derivatives)
Safe download

Values for this model

This model was generated by the Round to rectangular adapter template, with the following values:
Parameter Value
#1 cylinder outer diameter 100 mm
#2 cylinder inlet length 50 mm
#3 rectangle internal length 220 mm
#4 rectangle internal height 60 mm
#5 rectangle inlet length 100 mm
#6 offset Z 0 mm
#7 offset Y 0 mm
#8 total length 220 mm
#9 thickness 3 mm
#10 chamfer chamfer on the outside
of the cylindrical tube
illustration of the parameters
Representation of the parameters

  • If the chamfer option on the ends is enabled, the chamfer length is equal to half the thickness.
  • The stop at the bottom of the rectangular section has a width equal to half the thickness.

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 cylinder outer diameter diaC
#2 cylinder inlet length lentC
#3 rectangle internal length lenIR
#4 rectangle internal height heiIR
#5 rectangle inlet length lentR
#6 offset Z ofsZ
#7 offset Y ofsY
#8 total length lenT
#9 thickness thi
#10 chamfer cha
