Custom Tube adapter STL file ⌀ 77–50 mm (Length: 125 mm) 📦#1555

STL Download STL 2
Create a new model expert
from scratch search for a model
Tube connector ⌀77 mm to ⌀50 mm in STL format. Total length of this fitting is 125 mm. The thickness of the tubes is identical: 2.5 mm. The larger-diameter tube has a sleeve length of 45 mm, the smaller one of 40 mm. The ends are rounded on the outside to make tube connection easier.
Generation date: 2025-09-03

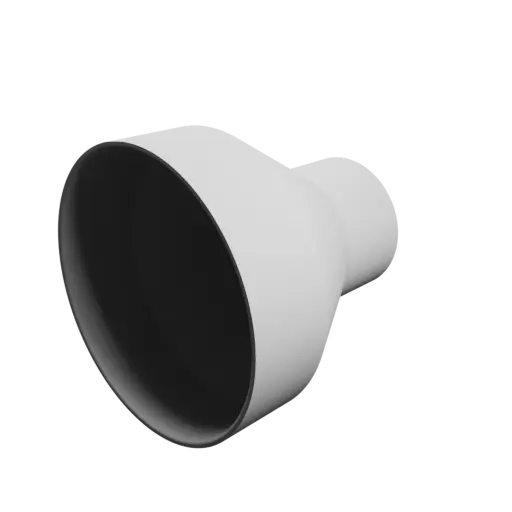

3D Model Tube adapter STL file ⌀ 77–50 mm (Length: 125 mm)

3D model download

Free
  • inline-tube-adapter-lenA45mm-d_model1555-nb0_dd{id}.stl : 4.4 Mo
STL Mesh quality : Linear deflection 0.05 Angular deflection 0.05
No compliance warranty No compliance warranty
(attribution - commercial use allowed)
Safe download
Instant .zip download — no email, no account

Values for this model

This model was generated by the Inline tube adapter template, with the following values:
Parameter Value
#1 side A length 45 mm (≃1.77 in)
#2 side A outer diameter 77 mm (≃3.03 in)
#3 side A thickness 2.5 mm (≃0.10 in)
#4 side B length 40 mm (≃1 9/16 in)
#5 side B outer diameter 50 mm (≃1.97 in)
#6 side B thickness 2.5 mm (≃0.10 in)
#7 transition length 40 mm (≃1 9/16 in)
#8 axis offset 0 mm (0 in)
#9 ends fillet fillet on the outside
Metadata Value
inner diameter (side A) 72 mm (≃2.83 in)
inner diameter (side B) 45 mm (≃1.77 in)
total length 125 mm (≃4.92 in)
illustration of the parameters
Parameter overview

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 side A length lenA
#2 side A outer diameter diA
#3 side A thickness thA
#4 side B length lenB
#5 side B outer diameter diB
#6 side B thickness thB
#7 transition length tra
#8 axis offset ofs
#9 ends fillet fil
