Box STL file with dimensions 100×70×50 mm 📦#1086

STL Download STL
Create a new model:
from scratch search for a model
This parametric box includes a single slot measuring 100×70×50mm. The total dimensions of the box are 110×80×55mm. A 2mm fillet improves usability inside the box. The sides are particularly thick.
Generation date: 2025-06-08
3D Model Box STL file with dimensions 100×70×50 mm

3D model download

Free
  • multi-compartment-storage-box-_model1086-nb0_dd{id}.stl : 156.9 Ko
STL Mesh quality : not defined
No compliance warranty No compliance warranty
(attribution - commercial use allowed)
Safe download

Values for this model

This model was generated by the Multi-compartment storage box template, with the following values:
Parameter Value
#1 number of rows 1
#2 number of columns 1
#3 compartment length 100 mm
#4 compartment width 70 mm
#5 compartment height 50 mm
#6 wall thickness 5 mm
#7 compartment fillet (radius) 2 mm
Metadata Value
total length 110 mm
total width 80 mm
total height 55 mm
number of slots 1
illustration of the parameters
Representation of the parameters

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 number of rows nbR
#2 number of columns nbC
#3 compartment length coL
#4 compartment width coW
#5 compartment height coH
#6 wall thickness waT
#7 compartment fillet (radius) coF

Related 3D models

To search for a model based on your own parameters, go to the template page Multi-compartment storage box

Box STL 3D file with dimensions 100×45×65 mm (📦 #1672)

1 object(s) - format STL
Box STL 3D file with dimensions 100×45×65 mm
This STL 3D model features a single compartment measuring 100×45×65mm. The total dimensions are 108×53×69mm. A 3mm fillet helps with item retrieval inside the box. The walls are particularly thick.
Parameter Value Unit
number of rows 1
number of columns 1
compartment length 100 mm
compartment width 45 mm
compartment height 65 mm
wall thickness 4 mm
compartment fillet (radius) 3 mm

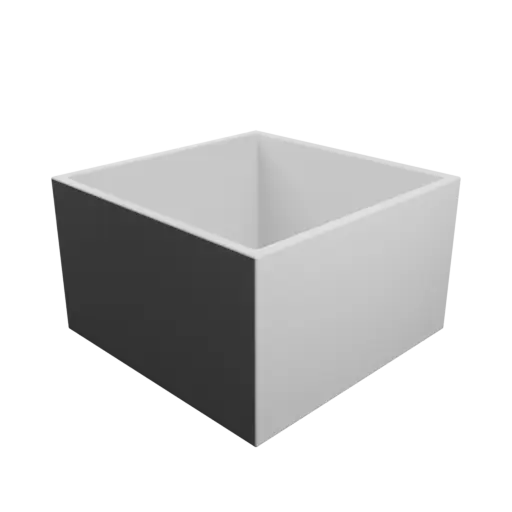

Box STL file with dimensions 100×100×60 mm (📦 #1092)
