Box with dimensions 100×100×60 mm 📦#1092

1 object(s) - format STL

This box design offers a single compartment measuring 100×100×60mm. The total dimensions are 108×108×64mm. The fillet of 2mm helps with item retrieval inside the compartment. The separators are particularly reinforced.

◀ ▶

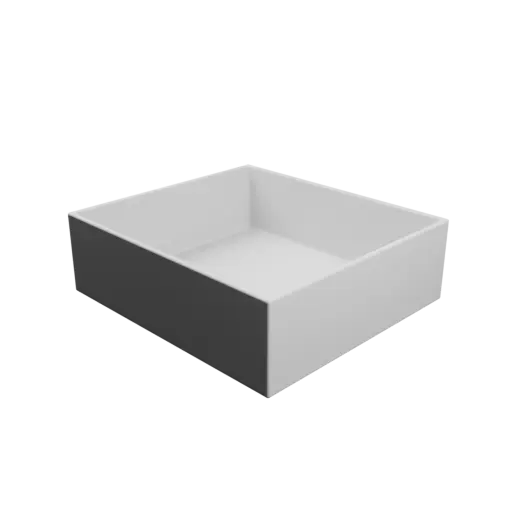

3D Model Box with dimensions 100×100×60 mm

Values for this model

	Parameter	Value	Unit	Label
#1	number of raws	1		nbR
#2	number of columns	1		nbC
#3	compartment length	100	mm	coL
#4	compartment width	100	mm	coW
#5	compartment height	60	mm	coH
#6	wall thickness	4	mm	waT
#7	compartment fillet (radius)	2	mm	coF

Representation of the parameters

Notes:

The height of the compartments corresponds to their depth.

Parameter #7 compartment fillet (radius) applies to the base and sides of the compartments, not the top edges.

To get the total height of the box, apply the formula: coH + waT

3D model download

3D file(s) name:

multi-compartment-storage-box-nbR1-nbC1-coL100mm-coW100mm-coH60mm-waT4mm-coF2mm_model1092-nb0_dd{id}.stl

Download format: zip

License: CC BY - Creative commons

(attribution - commercial use allowed)

Free download
