Custom Multi-compartment box STL 3D file: 100 compartments of 8×16×2 mm 📦#1083

STL Download STL 1
Create a new model advanced
from scratch search for a model

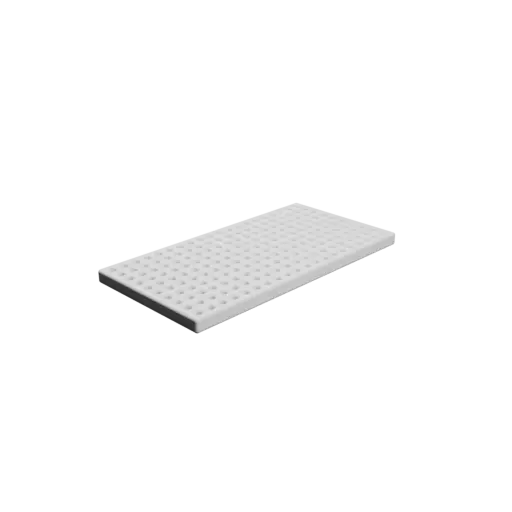

This sectioned box design provides 100 slots measuring 8×16×2mm each. The total dimensions of the box are 102×182×4mm. The compartments are not equipped with any fillet.
Generation date: 2025-06-05
3D Model Multi-compartment box STL 3D file: 100 compartments of 8×16×2 mm

3D model download

Free
  • multi-compartment-storage-box-_model1083-nb0_dd{id}.stl : 574.9 Ko
STL Mesh quality : not defined
No compliance warranty No compliance warranty
(attribution - commercial use allowed)
Safe download
Instant .zip download — no email, no account

Values for this model

This model was generated by the Multi-compartment storage box template, with the following values:
Parameter Value
#1 number of rows 10
#2 number of columns 10
#3 compartment length 8 mm (≃5/16 in)
#4 compartment width 16 mm (≃5/8 in)
#5 compartment height 2 mm (≃0.08 in)
#6 wall thickness 2 mm (≃0.08 in)
#7 compartment fillet (radius) 0 mm (0 in)
Metadata Value
total length 102 mm (≃4.02 in)
total width 182 mm (≃7.17 in)
total height 4 mm (≃0.16 in)
number of slots 100
illustration of the parameters
Parameter overview

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 number of rows nbR
#2 number of columns nbC
#3 compartment length coL
#4 compartment width coW
#5 compartment height coH
#6 wall thickness waT
#7 compartment fillet (radius) coF
