Multi compartment storage box 3D model #1081
1 object(s) - format STL
Loading...
◀
▶
Values for this model
| Parameter | Value | Unit | Label | |
|---|---|---|---|---|
| #1 | number of raws | 6 | nbR | |
| #2 | number of columns | 8 | nbC | |
| #3 | compartment length | 20 | mm | coL |
| #4 | compartment width | 20 | mm | coW |
| #5 | compartment height | 20 | mm | coH |
| #6 | wall thickness | 2 | mm | waT |
| #7 | compartment fillet (radius) | 2 | mm | coF |
Representation of the parameters
Notes:
The height of the compartments corresponds to their depth.
Parameter #7 compartment fillet (radius) applies to the base and sides of the compartments, not the top edges.
To get the total height of the box, apply the formula: coH + waT
3D model download
3D file(s) name:
multi-compartment-storage-box-nbR6-nbC8-coL20mm-coW20mm-coH20mm-waT2mm-coF2mm_model1081-nb0_dd{id}.stl
Download format: zip
Related 3D models
To search for a model based on specific values, go to the template page Multi compartment storage box.
3D model #1077
1 object(s)
- format
STL
This parametric multi-compartment box provides 12 compartments measuring 15.5×15.5×30mm each. External size are 107×37×32mm.
| Parameter | Value | Unit |
|---|---|---|
| number of raws | 2 | |
| number of columns | 6 | |
| compartment length | 15.5 | mm |
| compartment width | 15.5 | mm |
| compartment height | 30 | mm |
| wall thickness | 2 | mm |
| compartment fillet (radius) | 0.8 | mm |
3D model #1062
1 object(s)
- format
STL
This STL 3D model features 14 cavities, each measuring 14×14×5 mm. The total dimensions are 114×34×7 mm. A 2 mm fillet applied to each compartment makes it easier to handle small stored items. This box closely resembles a pill organizer, though it is not specifically designed as one.
| Parameter | Value | Unit |
|---|---|---|
| number of raws | 2 | |
| number of columns | 7 | |
| compartment length | 14 | mm |
| compartment width | 14 | mm |
| compartment height | 5 | mm |
| wall thickness | 2 | mm |
| compartment fillet (radius) | 2 | mm |
3D model #1075
1 object(s)
- format
STL
This printable multi-compartment box features 12 slots measuring 15.5×15.5×30mm each. The total dimensions of the box are 107×37×32mm. The slots do not feature any fillet.
| Parameter | Value | Unit |
|---|---|---|
| number of raws | 2 | |
| number of columns | 6 | |
| compartment length | 15.5 | mm |
| compartment width | 15.5 | mm |
| compartment height | 30 | mm |
| wall thickness | 2 | mm |
| compartment fillet (radius) | 0 | mm |
3D model #1083
1 object(s)
- format
STL

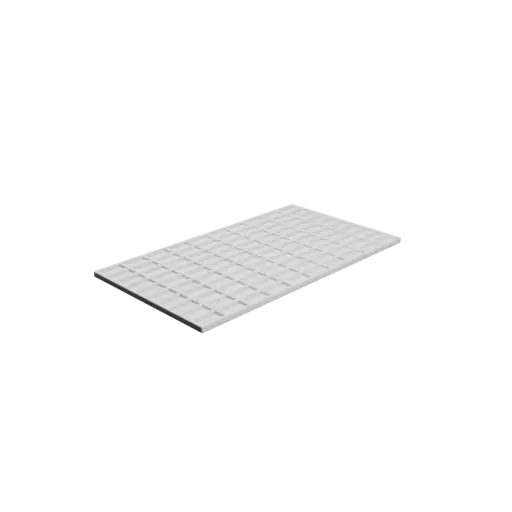

This sectioned box design provides 100 slots measuring 8×16×2mm each. The total dimensions of the box are 102×182×4mm. The compartments are not equipped with any fillet.
