Custom Protective grid STL file, center-to-center: 250x225mm, mesh: 10mm - Ø6mm 📦#9565
Generation date: 2026-06-21
3D model download
Free- honeycomb-grid-loc250mm-woc225_model9565-nb0_dd{id}.stl : 933.3 Ko
STL
Mesh quality :
0.001
0.1
No compliance warranty
License: ITE IPU v1.0 - Iteration3d
(Internal and private use, non-commercial – no distribution – no derivatives)
Safe download
Values for this model
This model was generated by the Honeycomb grid / fan guard template, with the following values:
| Parameter | Value | |
|---|---|---|
| #1 | length or center-to-center | 250 mm (≃9.84 in) |
| #2 | width or center-to-center | 225 mm (≃8.86 in) |
| #3 | mesh size | 10 mm (≃0.39 in) |
| #4 | dual color | no |
| #5 | holes | yes |
| #6 | hole diameter | 6 mm (≃1/4 in) |
| Metadata | Value |
|---|---|
| total length | 262 mm (≃10 5/16 in) |
| total width | 237 mm (≃9.33 in) |
| thickness | 2 mm (≃0.08 in) |
Parameter overview
The thickness of the walls forming the honeycomb structure is 1.2 mm.
- When no holes are present, the width of the outer band is 1.5 mm.
- When holes are present, the width of the outer band is equal to half the hole diameter.
When holes are present, the boss (reinforcing collar around the holes) has a diameter equal to twice the hole diameter.
When holes are present, the distance between the center of a hole and the outer edge of the frame is equal to the hole diameter.
The grid thickness is fixed at 2 mm.
The outer rim features a 1 mm rounded edge (fillet) on all four corners.
When the dual color parameter is enabled, the external band has a width equal to 30% of the hole diameter (0.9 mm when no holes are present).
Labels are used in the naming of the downloaded 3D files.
| Parameter | Label |
|---|---|
| #1 length or center-to-center | loc |
| #2 width or center-to-center | woc |
| #3 mesh size | mes |
| #4 dual color | duaC |
| #5 holes | hol |
| #6 hole diameter | hod |
Related 3D models
To search for a model based on your own parameters, go to the template page Honeycomb grid / fan guard
Protective grid STL 3D file, center-to-center: 250x250mm, mesh: 10mm - Ø6mm (📦 #3509)
1 object(s) - format STL
Download this 3D square grid model in STL format. Mounting holes are placed at the four corners (center-to-center 250x250 mm), each with a diameter of Ø6 mm. The overall dimensions reach 262x262 mm, with very large 10 mm cell size for peak ventilation. This grid serves as both a protective guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 250 | mm |
| width or center-to-center | 250 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 6 | mm |
Protective grid STL 3D file, center-to-center: 240x240mm, mesh: 10mm - Ø5mm (📦 #3217)
1 object(s) - format STL
Square honeycomb grid model as a STL file. Mounting holes are placed at the four corners (center-to-center 240x240 mm), each with a diameter of Ø5 mm. The overall dimensions reach 250x250 mm, with very open 10 mm cell size for peak ventilation. This grid acts as a protective guard while allowing airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 240 | mm |
| width or center-to-center | 240 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 5 | mm |
Honeycomb grid STL 3D file, center-to-center: 250x250mm, mesh: 10mm - Ø5mm (📦 #3216)
1 object(s) - format STL
Download this fan guard file in STL format. Mounting holes are placed at the four corners (center-to-center 250x250 mm), each with a diameter of Ø5 mm. The overall dimensions reach 260x260 mm, with very large 10 mm cell size for peak ventilation. This grid serves as both a protective guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 250 | mm |
| width or center-to-center | 250 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 5 | mm |
Honeycomb grid STL file, center-to-center: 200x200mm, mesh: 10mm - Ø6mm (📦 #3816)
1 object(s) - format STL
Download this 3D square protective grid as a STL file. Mounting holes are placed at the four corners (center-to-center 200x200 mm), each with a diameter of Ø6 mm. The overall dimensions reach 212x212 mm, with extra wide 10 mm cell size for peak ventilation. This grid acts as a protective guard while allowing airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 200 | mm |
| width or center-to-center | 200 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 6 | mm |
Honeycomb grille STL 3D file, center-to-center: 200x200mm, mesh: 10mm - Ø5mm (📦 #2938)
1 object(s) - format STL
Square grid file in STL format. Mounting holes are placed at the four corners (center-to-center 200x200 mm), each with a diameter of Ø5 mm. The overall dimensions reach 210x210 mm, with very large 10 mm cell size for maximum airflow. This grid provides both mechanical protection and airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 200 | mm |
| width or center-to-center | 200 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 5 | mm |
Protective grid STL 3D file, center-to-center: 250x250mm, mesh: 10mm - Ø8mm (📦 #3691)
1 object(s) - format STL
Download this 3D honeycomb protective square grid as a STL file. Mounting holes are placed at the four corners (center-to-center 250x250 mm), each with a diameter of Ø8 mm. The overall dimensions reach 266x266 mm, with very open 10 mm cell size for maximum airflow. This grid functions as both a mechanical guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 250 | mm |
| width or center-to-center | 250 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 8 | mm |
Protective grid STL file, center-to-center: 220x200mm, mesh: 10mm - Ø4mm (📦 #3974)
1 object(s) - format STL
Download this 3D rectangular protective honeycomb grid as a STL file. Mounting holes are placed at the four corners (center-to-center 220x200 mm), each with a diameter of Ø4 mm. The overall dimensions reach 228x208 mm, with extra wide 10 mm cell size for peak ventilation. This type of grid provides mechanical protection and ventilation.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 220 | mm |
| width or center-to-center | 200 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 4 | mm |

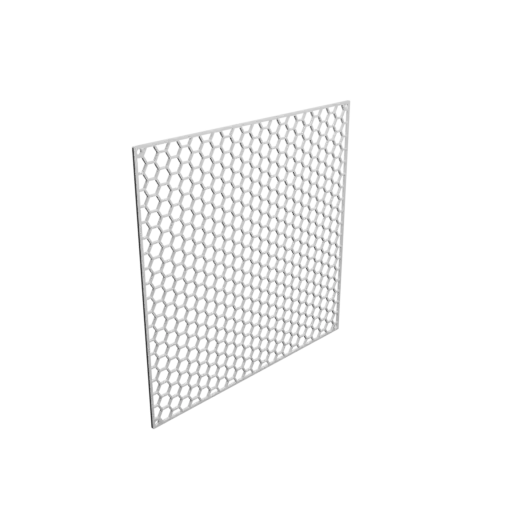

Protective grid STL file, center-to-center: 212x208mm, mesh: 10mm - Ø4mm (📦 #5772)
1 object(s) - format STL
3D rectangular honeycomb grid model as a STL file. Mounting holes are placed at the four corners (center-to-center 212x208 mm), each with a diameter of Ø4 mm. The overall dimensions reach 220x216 mm, with extra wide 10 mm cell size for maximum airflow. This grid functions as both a mechanical guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 212 | mm |
| width or center-to-center | 208 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 4 | mm |
Honeycomb grille STL 3D file, center-to-center: 210x210mm, mesh: 9mm - Ø4mm (📦 #8311)
1 object(s) - format STL
Download this honeycomb protective square grid model in STL format. Mounting holes are placed at the four corners (center-to-center 210x210 mm), each with a diameter of Ø4 mm. The overall dimensions reach 218x218 mm, with extra wide 9 mm cell size for peak ventilation. This type of grid provides mechanical protection and ventilation.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 210 | mm |
| width or center-to-center | 210 | mm |
| mesh size | 9 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 4 | mm |
Honeycomb grid STL 3D file, center-to-center: 300x200mm, mesh: 10mm - Ø4mm (📦 #3642)
1 object(s) - format STL
Download this 3D rectangular grid as a STL file. Mounting holes are placed at the four corners (center-to-center 300x200 mm), each with a diameter of Ø4 mm. The overall dimensions reach 308x208 mm, with very open 10 mm cell size for peak ventilation. This grid provides both mechanical protection and airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 300 | mm |
| width or center-to-center | 200 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 4 | mm |
Protective grid STL file, center-to-center: 237x237mm, mesh: 8mm - Ø4mm (📦 #4460)
1 object(s) - format STL
Download this 3D square protective honeycomb grid model in STL format. Mounting holes are placed at the four corners (center-to-center 237x237 mm), each with a diameter of Ø4 mm. The overall dimensions reach 245x245 mm, with large 8 mm cell size for optimal air circulation. This grid serves as both a protective guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 237 | mm |
| width or center-to-center | 237 | mm |
| mesh size | 8 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 4 | mm |
Honeycomb grille STL file, center-to-center: 245x245mm, mesh: 8mm - Ø4mm (📦 #4459)
1 object(s) - format STL
3D square protective honeycomb grid model in STL format. Mounting holes are placed at the four corners (center-to-center 245x245 mm), each with a diameter of Ø4 mm. The overall dimensions reach 253x253 mm, with large 8 mm cell size to maximize airflow. This grid functions as both a mechanical guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 245 | mm |
| width or center-to-center | 245 | mm |
| mesh size | 8 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 4 | mm |
Honeycomb grille STL 3D file, center-to-center: 251x151mm, mesh: 10mm - Ø7mm (📦 #6888)
1 object(s) - format STL
Honeycomb rectangular grid file in STL format. Mounting holes are placed at the four corners (center-to-center 251x151 mm), each with a diameter of Ø7 mm. The overall dimensions reach 265x165 mm, with very open 10 mm cell size for maximum airflow. This type of grid serves both protection and ventilation roles.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 251 | mm |
| width or center-to-center | 151 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 7 | mm |
Honeycomb grid STL 3D file, center-to-center: 250x250mm, mesh: 8mm - Ø8mm (📦 #7350)
1 object(s) - format STL
Honeycomb protective square grid model as a STL file. Mounting holes are placed at the four corners (center-to-center 250x250 mm), each with a diameter of Ø8 mm. The overall dimensions reach 266x266 mm, with wide 8 mm cell size to maximize airflow. This type of grid serves both protection and ventilation roles.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 250 | mm |
| width or center-to-center | 250 | mm |
| mesh size | 8 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 8 | mm |
Honeycomb grid STL file, center-to-center: 195x195mm, mesh: 10mm - Ø8mm (📦 #4482)
1 object(s) - format STL
3D honeycomb square grid file in STL format. Mounting holes are placed at the four corners (center-to-center 195x195 mm), each with a diameter of Ø8 mm. The overall dimensions reach 211x211 mm, with very open 10 mm cell size for peak ventilation. This grid serves as both a protective guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 195 | mm |
| width or center-to-center | 195 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 8 | mm |
Honeycomb grid STL file, center-to-center: 203x184mm, mesh: 10mm - Ø4mm (📦 #3820)
1 object(s) - format STL
Download this 3D honeycomb protective rectangular grid file in STL format. Mounting holes are placed at the four corners (center-to-center 203x184 mm), each with a diameter of Ø4 mm. The overall dimensions reach 211x192 mm, with extra wide 10 mm cell size for peak ventilation. This grid serves as both a protective guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 203 | mm |
| width or center-to-center | 184 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 4 | mm |
Honeycomb grille STL 3D file, center-to-center: 224x164mm, mesh: 10mm - Ø8mm (📦 #3606)
1 object(s) - format STL
3D rectangular protective honeycomb grid model as a STL file. Mounting holes are placed at the four corners (center-to-center 224x164 mm), each with a diameter of Ø8 mm. The overall dimensions reach 240x180 mm, with very open 10 mm cell size for maximum airflow. This type of grid serves both protection and ventilation roles.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 224 | mm |
| width or center-to-center | 164 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 8 | mm |
Protective grid STL 3D file, center-to-center: 220x220mm, mesh: 10mm - Ø3mm (📦 #4196)
1 object(s) - format STL
Honeycomb square grid file in STL format. Mounting holes are placed at the four corners (center-to-center 220x220 mm), each with a diameter of Ø3 mm. The overall dimensions reach 226x226 mm, with very large 10 mm cell size for maximum airflow. This grid provides both mechanical protection and airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 220 | mm |
| width or center-to-center | 220 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 3 | mm |
Protective grid STL 3D file, center-to-center: 218x218mm, mesh: 10mm - Ø3mm (📦 #4197)
1 object(s) - format STL
Download this square protective honeycomb grid as a STL file. Mounting holes are placed at the four corners (center-to-center 218x218 mm), each with a diameter of Ø3 mm. The overall dimensions reach 224x224 mm, with extra wide 10 mm cell size for peak ventilation. This grid provides both mechanical protection and airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 218 | mm |
| width or center-to-center | 218 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 3 | mm |
Honeycomb grid STL file, center-to-center: 250x140mm, mesh: 10mm - Ø5mm (📦 #3588)
1 object(s) - format STL
3D honeycomb protective rectangular grid file in STL format. Mounting holes are placed at the four corners (center-to-center 250x140 mm), each with a diameter of Ø5 mm. The overall dimensions reach 260x150 mm, with very open 10 mm cell size for peak ventilation. This grid functions as both a mechanical guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 250 | mm |
| width or center-to-center | 140 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 5 | mm |
Honeycomb grid STL file, center-to-center: 270x140mm, mesh: 10mm - Ø5mm (📦 #3587)
1 object(s) - format STL
Download this honeycomb rectangular grid as a STL file. Mounting holes are placed at the four corners (center-to-center 270x140 mm), each with a diameter of Ø5 mm. The overall dimensions reach 280x150 mm, with very large 10 mm cell size for maximum airflow. This type of grid serves both protection and ventilation roles.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 270 | mm |
| width or center-to-center | 140 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 5 | mm |

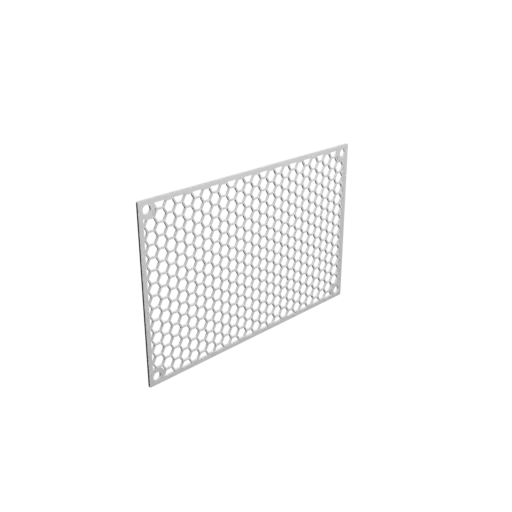

Honeycomb grid STL 3D file, center-to-center: 240x150mm, mesh: 10mm - Ø8mm (📦 #6402)
1 object(s) - format STL
3D rectangular honeycomb grid model in STL format. Mounting holes are placed at the four corners (center-to-center 240x150 mm), each with a diameter of Ø8 mm. The overall dimensions reach 256x166 mm, with very large 10 mm cell size for maximum airflow. This grid acts as a protective guard while allowing airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 240 | mm |
| width or center-to-center | 150 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 8 | mm |
Protective grid STL 3D file, center-to-center: 180x180mm, mesh: 10mm - Ø8mm (📦 #3860)
1 object(s) - format STL
Download this 3D fan guard model in STL format. Mounting holes are placed at the four corners (center-to-center 180x180 mm), each with a diameter of Ø8 mm. The overall dimensions reach 196x196 mm, with extra wide 10 mm cell size for maximum airflow. This grid acts as a protective guard while allowing airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 180 | mm |
| width or center-to-center | 180 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 8 | mm |
Honeycomb grille STL file, center-to-center: 245x245mm, mesh: 7mm - Ø4mm (📦 #4419)
1 object(s) - format STL
Download this honeycomb protective square grid file in STL format. Mounting holes are placed at the four corners (center-to-center 245x245 mm), each with a diameter of Ø4 mm. The overall dimensions reach 253x253 mm, with open 7 mm cell size to maximize airflow. This grid serves as both a protective guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 245 | mm |
| width or center-to-center | 245 | mm |
| mesh size | 7 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 4 | mm |
Honeycomb grid STL file, center-to-center: 300x250mm, mesh: 10mm - Ø3mm (📦 #5567)
1 object(s) - format STL
Honeycomb rectangular grid file in STL format. Mounting holes are placed at the four corners (center-to-center 300x250 mm), each with a diameter of Ø3 mm. The overall dimensions reach 306x256 mm, with extra wide 10 mm cell size for peak ventilation. This grid provides both mechanical protection and airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 300 | mm |
| width or center-to-center | 250 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 3 | mm |
Protective grid STL file, center-to-center: 242x142mm, mesh: 10mm - Ø4mm (📦 #3522)
1 object(s) - format STL
3D rectangular grid model in STL format. Mounting holes are placed at the four corners (center-to-center 242x142 mm), each with a diameter of Ø4 mm. The overall dimensions reach 250x150 mm, with very open 10 mm cell size for maximum airflow. This grid serves as both a protective guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 242 | mm |
| width or center-to-center | 142 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 4 | mm |
Honeycomb grid STL file, center-to-center: 300x150mm, mesh: 10mm - Ø4mm (📦 #5661)
1 object(s) - format STL
Download this rectangular protective grid file in STL format. Mounting holes are placed at the four corners (center-to-center 300x150 mm), each with a diameter of Ø4 mm. The overall dimensions reach 308x158 mm, with very open 10 mm cell size for peak ventilation. This grid serves as both a protective guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 300 | mm |
| width or center-to-center | 150 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 4 | mm |
Honeycomb grille STL 3D file, center-to-center: 300x300mm, mesh: 10mm - Ø8mm (📦 #3360)
1 object(s) - format STL
3D square protective grid file in STL format. Mounting holes are placed at the four corners (center-to-center 300x300 mm), each with a diameter of Ø8 mm. The overall dimensions reach 316x316 mm, with very open 10 mm cell size for maximum airflow. This type of grid serves both protection and ventilation roles.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 300 | mm |
| width or center-to-center | 300 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 8 | mm |
Honeycomb grille STL file, center-to-center: 300x300mm, mesh: 10mm - Ø4mm (📦 #3756)
1 object(s) - format STL
Download this 3D honeycomb protective square grid file in STL format. Mounting holes are placed at the four corners (center-to-center 300x300 mm), each with a diameter of Ø4 mm. The overall dimensions reach 308x308 mm, with extra wide 10 mm cell size for peak ventilation. This grid provides both mechanical protection and airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 300 | mm |
| width or center-to-center | 300 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 4 | mm |
Honeycomb grid STL 3D file, center-to-center: 238x155mm, mesh: 10mm - Ø3mm (📦 #5124)
1 object(s) - format STL
3D honeycomb rectangular grid model in STL format. Mounting holes are placed at the four corners (center-to-center 238x155 mm), each with a diameter of Ø3 mm. The overall dimensions reach 244x161 mm, with very open 10 mm cell size for maximum airflow. This grid acts as a protective guard while allowing airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 238 | mm |
| width or center-to-center | 155 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 3 | mm |
