Custom Protective grid STL 3D file, 100x70mm, mesh: 3mm 📦#4088

STL Download STL
Create a new model:
from scratch search for a model
Honeycomb rectangular grid model in STL format. The overall size is 100x70 mm, with fine 3 mm cell size for strong protection. A secondary color border highlights the perimeter. This type of grid serves both protection and ventilation roles.
Generation date: 2025-11-30
thumb object 0
object #0

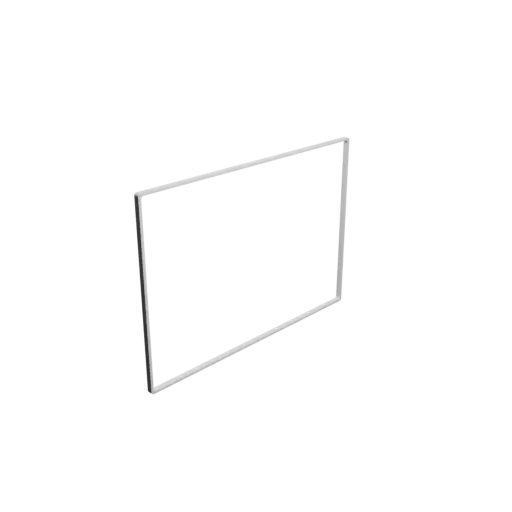

thumb object 1
object #1
3D Model Protective grid STL 3D file, 100x70mm, mesh: 3mm

3D model download

Free
  • object #0 honeycomb-grid-loc100mm-woc70m_model4088-nb0_dd{id}.stl : 652.2 Ko
  • object #1 honeycomb-grid-loc100mm-woc70m_model4088-nb1_dd{id}.stl : 51.6 Ko
STL Mesh quality : Linear deflection 0.001 Angular deflection 0.1
No compliance warranty No compliance warranty
(Internal and private use, non-commercial – no distribution – no derivatives)
Safe download
Instant .zip download — no email, no account

Values for this model

This model was generated by the Honeycomb grid / fan guard template, with the following values:
Parameter Value
#1 length or center-to-center 100 mm (≃3 15/16 in)
#2 width or center-to-center 70 mm (≃2 3/4 in)
#3 mesh size 3 mm (≃1/8 in)
#4 dual color yes
#5 holes no
#6 hole diameter -
Metadata Value
total length 100 mm (≃3 15/16 in)
total width 70 mm (≃2 3/4 in)
thickness 2 mm (≃0.08 in)
illustration of the parameters
Parameter overview

The thickness of the walls forming the honeycomb structure is 1.2 mm.

  • When no holes are present, the width of the outer band is 1.5 mm.
  • When holes are present, the width of the outer band is equal to half the hole diameter.

When holes are present, the boss (reinforcing collar around the holes) has a diameter equal to twice the hole diameter.

When holes are present, the distance between the center of a hole and the outer edge of the frame is equal to the hole diameter.

The grid thickness is fixed at 2 mm.

The outer rim features a 1 mm rounded edge (fillet) on all four corners.

When the dual color parameter is enabled, the external band has a width equal to 30% of the hole diameter (0.9 mm when no holes are present).

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 length or center-to-center loc
#2 width or center-to-center woc
#3 mesh size mes
#4 dual color duaC
#5 holes hol
#6 hole diameter hod
