Custom Protective grid STL file, 105x72mm, mesh: 7mm 📦#10004
Generation date: 2026-07-12
3D model download
Free- object #0 honeycomb-grid-loc105mm-woc72m_model10004-nb0_dd{id}.stl : 235.8 Ko
- object #1 honeycomb-grid-loc105mm-woc72m_model10004-nb1_dd{id}.stl : 51.6 Ko
STL
Mesh quality :
0.001
0.1
No compliance warranty
License: ITE IPU v1.0 - Iteration3d
(Internal and private use, non-commercial – no distribution – no derivatives)
Safe download
Values for this model
This model was generated by the Honeycomb grid / fan guard template, with the following values:
| Parameter | Value | |
|---|---|---|
| #1 | length or center-to-center | 105 mm (≃4 1/8 in) |
| #2 | width or center-to-center | 72 mm (≃2.83 in) |
| #3 | mesh size | 7 mm (≃0.28 in) |
| #4 | dual color | yes |
| #5 | holes | no |
| #6 | hole diameter | - |
| Metadata | Value |
|---|---|
| total length | 105 mm (≃4 1/8 in) |
| total width | 72 mm (≃2.83 in) |
| thickness | 2 mm (≃0.08 in) |
Parameter overview
The thickness of the walls forming the honeycomb structure is 1.2 mm.
- When no holes are present, the width of the outer band is 1.5 mm.
- When holes are present, the width of the outer band is equal to half the hole diameter.
When holes are present, the boss (reinforcing collar around the holes) has a diameter equal to twice the hole diameter.
When holes are present, the distance between the center of a hole and the outer edge of the frame is equal to the hole diameter.
The grid thickness is fixed at 2 mm.
The outer rim features a 1 mm rounded edge (fillet) on all four corners.
When the dual color parameter is enabled, the external band has a width equal to 30% of the hole diameter (0.9 mm when no holes are present).
Labels are used in the naming of the downloaded 3D files.
| Parameter | Label |
|---|---|
| #1 length or center-to-center | loc |
| #2 width or center-to-center | woc |
| #3 mesh size | mes |
| #4 dual color | duaC |
| #5 holes | hol |
| #6 hole diameter | hod |
Related 3D models
To search for a model based on your own parameters, go to the template page Honeycomb grid / fan guard
Protective grid STL 3D file, 92x92mm, mesh: 8mm (📦 #3366)
2 object(s) - format STL
3D square honeycomb grid model in STL format. The overall size is 92x92 mm, with large 8 mm cell size to enhance ventilation. A secondary color border highlights the perimeter. This grid acts as a protective guard while allowing airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 92 | mm |
| width or center-to-center | 92 | mm |
| mesh size | 8 | mm |
| dual color | yes | |
| holes | no |
Honeycomb grid STL 3D file, 100x70mm, mesh: 10mm (📦 #4086)
2 object(s) - format STL
Rectangular grid model as a STL file. The overall size is 100x70 mm, with very open 10 mm cell size for peak ventilation. A secondary color accent gently outlines the perimeter. This type of grid serves both protection and ventilation roles.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 100 | mm |
| width or center-to-center | 70 | mm |
| mesh size | 10 | mm |
| dual color | yes | |
| holes | no |

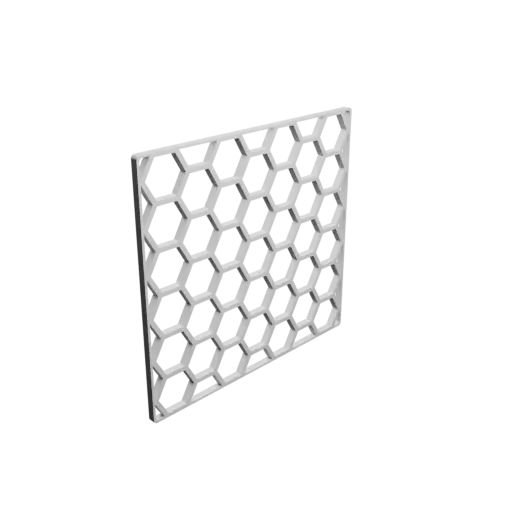

Honeycomb grille STL 3D file, 75x70mm, mesh: 10mm (📦 #4807)
2 object(s) - format STL
Rectangular protective honeycomb grid model in STL format. The overall size is 75x70 mm, with very open 10 mm cell size for peak ventilation. A secondary color rim highlights the outer edge. This type of grid provides mechanical protection and ventilation.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 75 | mm |
| width or center-to-center | 70 | mm |
| mesh size | 10 | mm |
| dual color | yes | |
| holes | no |
Protective grid STL 3D file, 105x105mm, mesh: 4mm (📦 #3016)
2 object(s) - format STL
Square protective honeycomb grid model in STL format. The overall size is 105x105 mm, with regular 4 mm cell size for versatile use. A secondary color rim highlights the outer edge. This grid acts as a protective guard while allowing airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 105 | mm |
| width or center-to-center | 105 | mm |
| mesh size | 4 | mm |
| dual color | yes | |
| holes | no |
Honeycomb grille STL 3D file, 120x120mm, mesh: 10mm (📦 #3504)
2 object(s) - format STL
Download this 3D fan guard as a STL file. The overall size is 120x120 mm, with very large 10 mm cell size for peak ventilation. A secondary color accent gently outlines the perimeter. This grid functions as both a mechanical guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 120 | mm |
| width or center-to-center | 120 | mm |
| mesh size | 10 | mm |
| dual color | yes | |
| holes | no |
Protective grid STL 3D file, 100x70mm, mesh: 3mm (📦 #4088)
2 object(s) - format STL
Honeycomb rectangular grid model in STL format. The overall size is 100x70 mm, with fine 3 mm cell size for strong protection. A secondary color border highlights the perimeter. This type of grid serves both protection and ventilation roles.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 100 | mm |
| width or center-to-center | 70 | mm |
| mesh size | 3 | mm |
| dual color | yes | |
| holes | no |

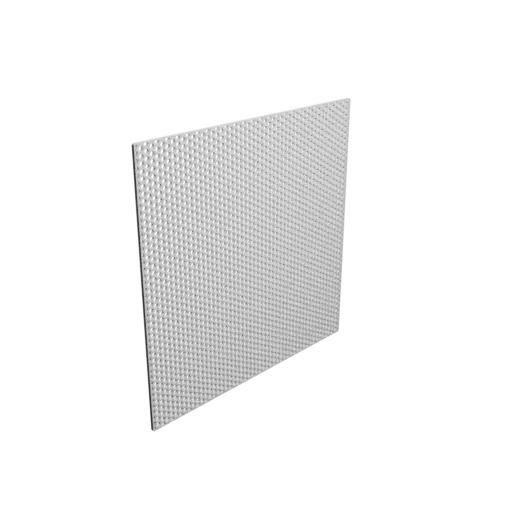

Honeycomb grille STL file, 185x185mm, mesh: 3mm (📦 #8150)
