Custom Box STL file with dimensions 100×100×100 mm 📦#4007

STL Download STL
Create a new model:
from scratch search for a model
This box design includes a single cavity measuring 100×100×100mm. External size are 104×104×102mm. A 20mm fillet improves usability inside the compartment.
Generation date: 2025-11-29
3D Model Box STL file with dimensions 100×100×100 mm

3D model download

Free
  • multi-compartment-storage-box-_model4007-nb0_dd{id}.stl : 156.9 Ko
STL Mesh quality : Linear deflection 0.5 Angular deflection 0.3
No compliance warranty No compliance warranty
(attribution - commercial use allowed)
Safe download
Instant .zip download — no email, no account

Values for this model

This model was generated by the Multi-compartment storage box template, with the following values:
Parameter Value
#1 number of rows 1
#2 number of columns 1
#3 compartment length 100 mm (≃3 15/16 in)
#4 compartment width 100 mm (≃3 15/16 in)
#5 compartment height 100 mm (≃3 15/16 in)
#6 wall thickness 2 mm (≃0.08 in)
#7 compartment fillet (radius) 20 mm (≃0.79 in)
Metadata Value
total length 104 mm (≃4.09 in)
total width 104 mm (≃4.09 in)
total height 102 mm (≃4.02 in)
number of slots 1
illustration of the parameters
Parameter overview

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 number of rows nbR
#2 number of columns nbC
#3 compartment length coL
#4 compartment width coW
#5 compartment height coH
#6 wall thickness waT
#7 compartment fillet (radius) coF

Related 3D models

To search for a model based on your own parameters, go to the template page Multi-compartment storage box

Multi-compartment box STL file: 2 compartments of 50×50×50 mm (📦 #3764)

1 object(s) - format STL
Multi-compartment box STL file: 2 compartments of 50×50×50 mm
This STL 3D model features 2 cavities measuring 50×50×50mm each. Overall dimensions of the box are 106×54×52mm. A 10mm fillet applied to all compartments make it easier to grasp items stored in the box.
Parameter Value Unit
number of rows 1
number of columns 2
compartment length 50 mm
compartment width 50 mm
compartment height 50 mm
wall thickness 2 mm
compartment fillet (radius) 10 mm

Multi-compartment box STL 3D file: 12 compartments of 90×60×30 mm (📦 #3615)

1 object(s) - format STL
Multi-compartment box STL 3D file: 12 compartments of 90×60×30 mm
This STL 3D model includes 12 storage spaces measuring 90×60×30mm each. Overall dimensions of the box are 282×255×33mm. Fillets of 10mm applied to all compartments provide a better grip stored in the box. The dividers are particularly solid.
Parameter Value Unit
number of rows 4
number of columns 3
compartment length 90 mm
compartment width 60 mm
compartment height 30 mm
wall thickness 3 mm
compartment fillet (radius) 10 mm

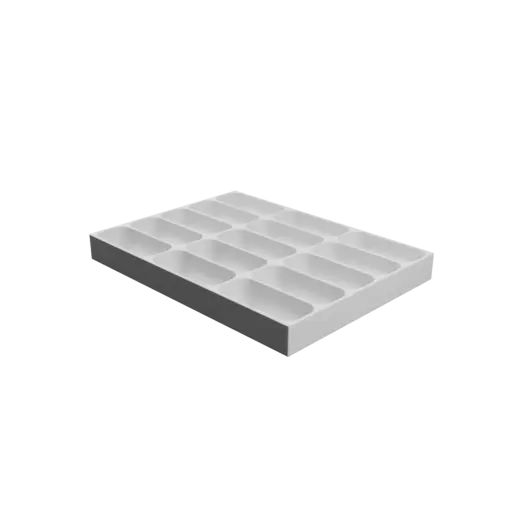

Multi-compartment box STL file: 15 compartments of 70×30×20 mm (📦 #4021)

1 object(s) - format STL
Multi-compartment box STL file: 15 compartments of 70×30×20 mm
This STL 3D model includes 15 compartments measuring 70×30×20mm each. Overall dimensions of the box are 218×162×22mm. Fillets of 10mm applied to each compartment provide a better grip stored in slots.
Parameter Value Unit
number of rows 5
number of columns 3
compartment length 70 mm
compartment width 30 mm
compartment height 20 mm
wall thickness 2 mm
compartment fillet (radius) 10 mm

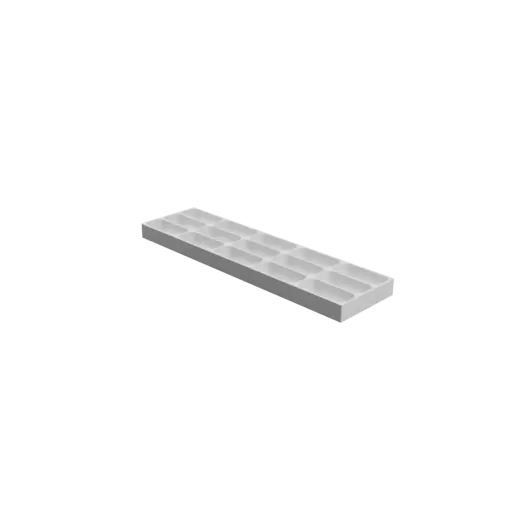

Multi-compartment box STL file: 15 compartments of 70×30×20 mm (📦 #4020)
