Custom Multi-compartment box STL file: 36 compartments of 20×20×100 mm 📦#3851

STL Download STL 1
Create a new model:
from scratch search for a model
This storage box design features 36 slots measuring 20×20×100mm each. Overall dimensions are 148×148×104mm. A 5mm fillet applied to all compartments make it easier to grasp items stored in slots. The dividers are particularly solid.
Generation date: 2025-11-26
3D Model Multi-compartment box STL file: 36 compartments of 20×20×100 mm

3D model download

Free
  • multi-compartment-storage-box-_model3851-nb0_dd{id}.stl : 3.2 Mo
STL Mesh quality : Linear deflection 0.5 Angular deflection 0.3
No compliance warranty No compliance warranty
(attribution - commercial use allowed)
Safe download
Instant .zip download — no email, no account

Values for this model

This model was generated by the Multi-compartment storage box template, with the following values:
Parameter Value
#1 number of rows 6
#2 number of columns 6
#3 compartment length 20 mm (≃0.79 in)
#4 compartment width 20 mm (≃0.79 in)
#5 compartment height 100 mm (≃3 15/16 in)
#6 wall thickness 4 mm (≃0.16 in)
#7 compartment fillet (radius) 5 mm (≃3/16 in)
Metadata Value
total length 148 mm (≃5 13/16 in)
total width 148 mm (≃5 13/16 in)
total height 104 mm (≃4.09 in)
number of slots 36
illustration of the parameters
Parameter overview

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 number of rows nbR
#2 number of columns nbC
#3 compartment length coL
#4 compartment width coW
#5 compartment height coH
#6 wall thickness waT
#7 compartment fillet (radius) coF

Related 3D models

To search for a model based on your own parameters, go to the template page Multi-compartment storage box

Multi-compartment box STL 3D file: 64 compartments of 20×25.2×100 mm (📦 #1068)

1 object(s) - format STL
Multi-compartment box STL 3D file: 64 compartments of 20×25.2×100 mm
This printable storage box provides 64 storage spaces measuring 20×25.2×100mm each. Overall dimensions are 196×237.6×104mm. A 5mm fillet applied to each compartment provide a better grip stored in the compartments. The walls are particularly robust.
Parameter Value Unit
number of rows 8
number of columns 8
compartment length 20 mm
compartment width 25.2 mm
compartment height 100 mm
wall thickness 4 mm
compartment fillet (radius) 5 mm

Multi-compartment box STL 3D file: 36 compartments of 15×15×75 mm (📦 #3238)

1 object(s) - format STL
Multi-compartment box STL 3D file: 36 compartments of 15×15×75 mm
This STL 3D model provides 36 slots measuring 15×15×75mm each. The total dimensions are 107.5×107.5×77.5mm. A 6.5mm fillet applied to each compartment provide a better grip stored in slots.
Parameter Value Unit
number of rows 6
number of columns 6
compartment length 15 mm
compartment width 15 mm
compartment height 75 mm
wall thickness 2.5 mm
compartment fillet (radius) 6.5 mm

Multi-compartment box STL 3D file: 8 compartments of 20×40×100 mm (📦 #1224)

1 object(s) - format STL
Multi-compartment box STL 3D file: 8 compartments of 20×40×100 mm
This 3D model in STL format includes 8 compartments measuring 20×40×100mm each. The total dimensions of the box are 105×95×105mm. Fillets of 4mm applied to each compartment provide a better grip stored in the compartments. The dividers are particularly robust.
Parameter Value Unit
number of rows 2
number of columns 4
compartment length 20 mm
compartment width 40 mm
compartment height 100 mm
wall thickness 5 mm
compartment fillet (radius) 4 mm

Multi-compartment box STL 3D file: 16 compartments of 50×50×100 mm (📦 #1639)

1 object(s) - format STL
Multi-compartment box STL 3D file: 16 compartments of 50×50×100 mm
This storage box design features 16 storage spaces measuring 50×50×100mm each. Overall dimensions of the box are 220×220×104mm. A 3mm fillet applied to each compartment help with item retrieval stored in the box. The walls are particularly robust.
Parameter Value Unit
number of rows 4
number of columns 4
compartment length 50 mm
compartment width 50 mm
compartment height 100 mm
wall thickness 4 mm
compartment fillet (radius) 3 mm

Multi-compartment box STL 3D file: 64 compartments of 18×17×70 mm (📦 #3169)

1 object(s) - format STL
Multi-compartment box STL 3D file: 64 compartments of 18×17×70 mm
This compartment box design includes 64 compartments measuring 18×17×70mm each. Overall dimensions of the box are 171×163×73mm. Fillets of 8.1mm applied to each compartment provide a better grip stored in slots. The walls are particularly solid.
Parameter Value Unit
number of rows 8
number of columns 8
compartment length 18 mm
compartment width 17 mm
compartment height 70 mm
wall thickness 3 mm
compartment fillet (radius) 8.1 mm

Multi-compartment box STL 3D file: 36 compartments of 17×17×80 mm (📦 #1063)

1 object(s) - format STL (4.3/5) 3 vote(s)
Multi-compartment box STL 3D file: 36 compartments of 17×17×80 mm
This printable multi-compartment box features 36 compartments measuring 17×17×80 mm each, with an almost cylindrical shape. Overall dimensions are 116×116×82 mm.
Parameter Value Unit
number of rows 6
number of columns 6
compartment length 17 mm
compartment width 17 mm
compartment height 80 mm
wall thickness 2 mm
compartment fillet (radius) 8.4 mm

Multi-compartment box STL file: 8 compartments of 45×45×80 mm (📦 #3763)

1 object(s) - format STL
Multi-compartment box STL file: 8 compartments of 45×45×80 mm
This multi-compartment box design features 8 sections measuring 45×45×80mm each. Overall dimensions are 200×102×84mm. A 3mm fillet applied to each compartment help with item retrieval stored in the compartments. The separators are particularly solid.
Parameter Value Unit
number of rows 2
number of columns 4
compartment length 45 mm
compartment width 45 mm
compartment height 80 mm
wall thickness 4 mm
compartment fillet (radius) 3 mm

Multi-compartment box STL file: 72 compartments of 20×20×86 mm (📦 #1658)

1 object(s) - format STL
Multi-compartment box STL file: 72 compartments of 20×20×86 mm
This parametric compartment box provides 72 sections measuring 20×20×86mm each. The total dimensions of the box are 266×134×88mm. A 4mm fillet applied to each compartment help with item retrieval stored in the box.
Parameter Value Unit
number of rows 6
number of columns 12
compartment length 20 mm
compartment width 20 mm
compartment height 86 mm
wall thickness 2 mm
compartment fillet (radius) 4 mm

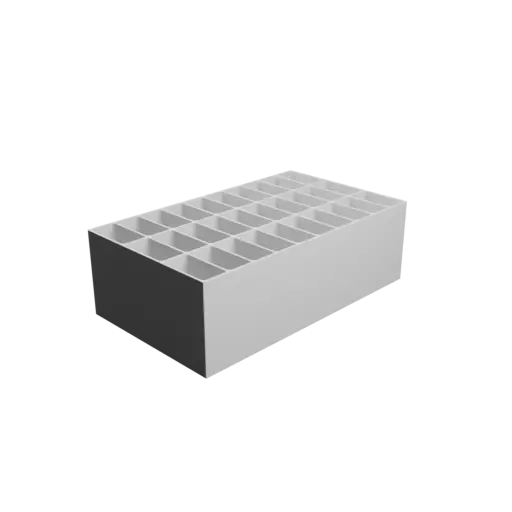

Multi-compartment box STL file: 30 compartments of 60×30×100 mm (📦 #3874)

1 object(s) - format STL
Multi-compartment box STL file: 30 compartments of 60×30×100 mm
This STL 3D model includes 30 cavities measuring 60×30×100mm each. The total dimensions of the box are 188×322×102mm. Fillets of 4mm applied to all compartments provide a better grip stored in the compartments.
Parameter Value Unit
number of rows 10
number of columns 3
compartment length 60 mm
compartment width 30 mm
compartment height 100 mm
wall thickness 2 mm
compartment fillet (radius) 4 mm

Multi-compartment box STL 3D file: 25 compartments of 30×30×80 mm (📦 #1573)

1 object(s) - format STL
Multi-compartment box STL 3D file: 25 compartments of 30×30×80 mm
This storage box design provides 25 sections measuring 30×30×80mm each. The total dimensions are 168×168×83mm. The cavities do not feature any fillet. The walls are particularly reinforced.
Parameter Value Unit
number of rows 5
number of columns 5
compartment length 30 mm
compartment width 30 mm
compartment height 80 mm
wall thickness 3 mm
compartment fillet (radius) 0 mm

Multi-compartment box STL 3D file: 12 compartments of 30×30×100 mm (📦 #1859)

1 object(s) - format STL
Multi-compartment box STL 3D file: 12 compartments of 30×30×100 mm
This STL 3D model includes 12 compartments measuring 30×30×100mm each. The total dimensions of the box are 69×201×103mm. The cavities do not feature any fillet. The dividers are particularly reinforced.
Parameter Value Unit
number of rows 6
number of columns 2
compartment length 30 mm
compartment width 30 mm
compartment height 100 mm
wall thickness 3 mm
compartment fillet (radius) 0 mm

Multi-compartment box STL file: 9 compartments of 30×20×50 mm (📦 #1058)

1 object(s) - format STL (5.0/5) 2 vote(s)
Multi-compartment box STL file: 9 compartments of 30×20×50 mm
This parametric storage box includes 9 slots measuring 30×20×50mm each. External size of the box are 102×72×53mm. A 3mm fillet applied to all compartments make it easier to grasp items stored in the box. The dividers are particularly reinforced.
Parameter Value Unit
number of rows 3
number of columns 3
compartment length 30 mm
compartment width 20 mm
compartment height 50 mm
wall thickness 3 mm
compartment fillet (radius) 3 mm

Multi-compartment box STL file: 4 compartments of 50×50×100 mm (📦 #3911)

1 object(s) - format STL
Multi-compartment box STL file: 4 compartments of 50×50×100 mm
This printable sectioned box provides 4 slots measuring 50×50×100mm each. The total dimensions of the box are 115×115×105mm. A 2mm fillet applied to all compartments provide a better grip stored in the compartments. The walls are particularly reinforced.
Parameter Value Unit
number of rows 2
number of columns 2
compartment length 50 mm
compartment width 50 mm
compartment height 100 mm
wall thickness 5 mm
compartment fillet (radius) 2 mm

Multi-compartment box STL file: 36 compartments of 3×3×75 mm (📦 #2403)

1 object(s) - format STL
Multi-compartment box STL file: 36 compartments of 3×3×75 mm
This 3D model in STL format features 36 storage spaces measuring 3×3×75mm each. The total dimensions of the box are 32×32×77mm.
Parameter Value Unit
number of rows 6
number of columns 6
compartment length 3 mm
compartment width 3 mm
compartment height 75 mm
wall thickness 2 mm
compartment fillet (radius) 0.5 mm

Multi-compartment box STL file: 9 compartments of 30×30×60 mm (📦 #1067)

1 object(s) - format STL (5.0/5) 1 vote(s)
Multi-compartment box STL file: 9 compartments of 30×30×60 mm
This STL file provides 9 storage spaces measuring 30×30×60mm each. External size are 98×98×62mm. Fillets of 2mm applied to all compartments help with item retrieval stored in the compartments.
Parameter Value Unit
number of rows 3
number of columns 3
compartment length 30 mm
compartment width 30 mm
compartment height 60 mm
wall thickness 2 mm
compartment fillet (radius) 2 mm

Multi-compartment box STL file: 60 compartments of 50×30×50 mm (📦 #1150)

1 object(s) - format STL
Multi-compartment box STL file: 60 compartments of 50×30×50 mm
This parametric multi-compartment box provides 60 storage spaces measuring 50×30×50mm each. The total dimensions of the box are 317.5×327.5×52.5mm. Fillets of 4mm applied to all compartments provide a better grip stored in the box.
Parameter Value Unit
number of rows 10
number of columns 6
compartment length 50 mm
compartment width 30 mm
compartment height 50 mm
wall thickness 2.5 mm
compartment fillet (radius) 4 mm

Multi-compartment box STL file: 16 compartments of 52×52×70 mm (📦 #3476)

1 object(s) - format STL
Multi-compartment box STL file: 16 compartments of 52×52×70 mm
This 3D model in STL format provides 16 sections measuring 52×52×70mm each. The total dimensions are 218×218×72mm. A 3mm fillet applied to all compartments provide a better grip stored in the compartments.
Parameter Value Unit
number of rows 4
number of columns 4
compartment length 52 mm
compartment width 52 mm
compartment height 70 mm
wall thickness 2 mm
compartment fillet (radius) 3 mm

Multi-compartment box STL 3D file: 100 compartments of 12×12×80 mm (📦 #1089)

1 object(s) - format STL
Multi-compartment box STL 3D file: 100 compartments of 12×12×80 mm
This 3D model in STL format provides 100 cavities measuring 12×12×80mm each. The total dimensions are 142×142×82mm.
Parameter Value Unit
number of rows 10
number of columns 10
compartment length 12 mm
compartment width 12 mm
compartment height 80 mm
wall thickness 2 mm
compartment fillet (radius) 1 mm

Multi-compartment box STL 3D file: 9 compartments of 17.5×17.5×60 mm (📦 #1079)

1 object(s) - format STL
Multi-compartment box STL 3D file: 9 compartments of 17.5×17.5×60 mm
This storage box model includes 9 compartments measuring 17.5×17.5×60 mm. The overall dimensions of the box are 60.5×60.5×62 mm. The almost cylindrical cavities are suitable for holding test tubes with a 17 mm diameter.
Parameter Value Unit
number of rows 3
number of columns 3
compartment length 17.5 mm
compartment width 17.5 mm
compartment height 60 mm
wall thickness 2 mm
compartment fillet (radius) 8.7 mm

Multi-compartment box STL 3D file: 49 compartments of 30×30×40 mm (📦 #1066)

1 object(s) - format STL
Multi-compartment box STL 3D file: 49 compartments of 30×30×40 mm
This STL file includes 49 cavities measuring 30×30×40mm each. External size are 226×226×42mm. A 4mm fillet applied to all compartments make it easier to grasp items stored in the compartments.
Parameter Value Unit
number of rows 7
number of columns 7
compartment length 30 mm
compartment width 30 mm
compartment height 40 mm
wall thickness 2 mm
compartment fillet (radius) 4 mm

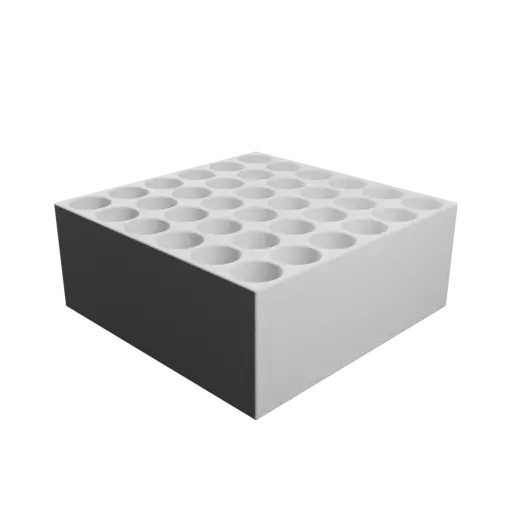

Multi-compartment box STL file: 36 compartments of 17×17×45 mm (📦 #3714)

1 object(s) - format STL
Multi-compartment box STL file: 36 compartments of 17×17×45 mm
This printable multi-compartment box provides 36 storage spaces measuring 17×17×45mm each. The total dimensions are 116×116×47mm. Fillets of 8.4mm applied to each compartment help with item retrieval stored in the compartments.
Parameter Value Unit
number of rows 6
number of columns 6
compartment length 17 mm
compartment width 17 mm
compartment height 45 mm
wall thickness 2 mm
compartment fillet (radius) 8.4 mm

Multi-compartment box STL file: 3 compartments of 60×45×60 mm (📦 #2490)

1 object(s) - format STL
Multi-compartment box STL file: 3 compartments of 60×45×60 mm
This printable storage box provides 3 sections measuring 60×45×60mm each. The total dimensions are 196×53×64mm. Fillets of 3mm applied to all compartments help with item retrieval stored in the compartments. The walls are particularly solid.
Parameter Value Unit
number of rows 1
number of columns 3
compartment length 60 mm
compartment width 45 mm
compartment height 60 mm
wall thickness 4 mm
compartment fillet (radius) 3 mm

Multi-compartment box STL 3D file: 64 compartments of 14×14×40 mm (📦 #3930)

1 object(s) - format STL
Multi-compartment box STL 3D file: 64 compartments of 14×14×40 mm
This STL 3D model provides 64 slots measuring 14×14×40mm each. The total dimensions of the box are 130×130×42mm. Fillets of 3mm applied to all compartments help with item retrieval stored in slots.
Parameter Value Unit
number of rows 8
number of columns 8
compartment length 14 mm
compartment width 14 mm
compartment height 40 mm
wall thickness 2 mm
compartment fillet (radius) 3 mm

Multi-compartment box STL file: 40 compartments of 46.5×49.6×68 mm (📦 #2514)

1 object(s) - format STL
Multi-compartment box STL file: 40 compartments of 46.5×49.6×68 mm
This 3D model in STL format features 40 sections measuring 46.5×49.6×68mm each. The total dimensions of the box are 390×260×70mm.
Parameter Value Unit
number of rows 5
number of columns 8
compartment length 46.5 mm
compartment width 49.6 mm
compartment height 68 mm
wall thickness 2 mm
compartment fillet (radius) 1 mm

Box STL 3D file with dimensions 50×50×60 mm (📦 #1059)

1 object(s) - format STL (4.7/5) 3 vote(s)
Box STL 3D file with dimensions 50×50×60 mm
This printable mono-compartment box features a single cavity measuring 50×50×60mm. External size are 58×58×64mm. The fillet of 3mm helps with item retrieval inside the compartment. The separators are particularly reinforced.
Parameter Value Unit
number of rows 1
number of columns 1
compartment length 50 mm
compartment width 50 mm
compartment height 60 mm
wall thickness 4 mm
compartment fillet (radius) 3 mm

Multi-compartment box STL file: 3 compartments of 45×45×45 mm (📦 #1090)

1 object(s) - format STL (4.0/5) 2 vote(s)
Multi-compartment box STL file: 3 compartments of 45×45×45 mm
This parametric sectioned box provides 3 compartments measuring 45×45×45mm each. The total dimensions are 151×53×49mm. Fillets of 3mm applied to all compartments help with item retrieval stored in the compartments. The separators are particularly solid.
Parameter Value Unit
number of rows 1
number of columns 3
compartment length 45 mm
compartment width 45 mm
compartment height 45 mm
wall thickness 4 mm
compartment fillet (radius) 3 mm

Multi-compartment box STL 3D file: 16 compartments of 30×30×60 mm (📦 #1574)

1 object(s) - format STL
Multi-compartment box STL 3D file: 16 compartments of 30×30×60 mm
This 3D model in STL format features 16 storage spaces measuring 30×30×60mm each. The total dimensions of the box are 130×130×62mm. The cavities lack any fillet.
Parameter Value Unit
number of rows 4
number of columns 4
compartment length 30 mm
compartment width 30 mm
compartment height 60 mm
wall thickness 2 mm
compartment fillet (radius) 0 mm

Multi-compartment box STL file: 20 compartments of 30×30×40 mm (📦 #3718)

1 object(s) - format STL
Multi-compartment box STL file: 20 compartments of 30×30×40 mm
This STL file provides 20 storage spaces measuring 30×30×40mm each. The total dimensions of the box are 162×130×42mm. A 2mm fillet applied to each compartment provide a better grip stored in the box.
Parameter Value Unit
number of rows 4
number of columns 5
compartment length 30 mm
compartment width 30 mm
compartment height 40 mm
wall thickness 2 mm
compartment fillet (radius) 2 mm

Multi-compartment box STL 3D file: 8 compartments of 35×35×35 mm (📦 #2001)

1 object(s) - format STL
Multi-compartment box STL 3D file: 8 compartments of 35×35×35 mm
This printable multi-compartment box features 8 slots measuring 35×35×35mm each. Overall dimensions of the box are 155×79×38mm. Fillets of 3mm applied to each compartment make it easier to grasp items stored in slots. The walls are particularly robust.
Parameter Value Unit
number of rows 2
number of columns 4
compartment length 35 mm
compartment width 35 mm
compartment height 35 mm
wall thickness 3 mm
compartment fillet (radius) 3 mm
