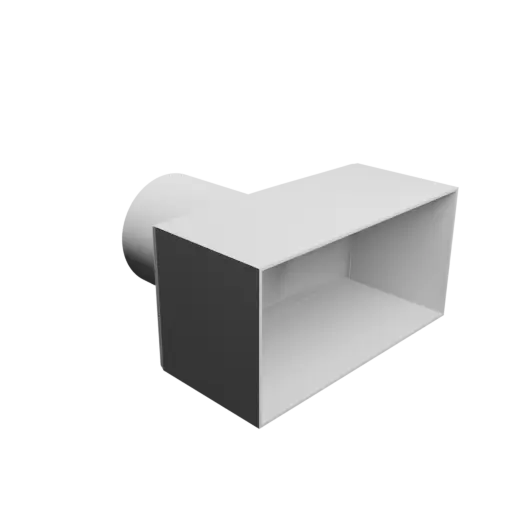

Custom Round-to-Rectangular Tube Adapter STL 3D file ⌀106 mm to 220×110 mm, thickness 2 mm + offset 📦#3319

STL Download STL
Create a new model:
from scratch search for a model
3D model in STL format of a round-to-rectangular adapter with an external diameter of ⌀106 mm and a rectangular section with internal dimensions 220×110 mm. The wall thickness is 2 mm and the total length is 280 mm. The adapter has an offset of 20 mm along the Y axis and 55 mm along the Z axis.
Generation date: 2025-11-16
3D Model Round-to-Rectangular Tube Adapter STL 3D file ⌀106 mm to 220×110 mm, thickness 2 mm + offset

3D model download

Free
  • round-to-rectangular-adapter-d_model3319-nb0_dd{id}.stl : 1.9 Mo
STL Mesh quality : Linear deflection 0.0005 Angular deflection 0.05
No compliance warranty No compliance warranty
(Internal and private use, non-commercial – no distribution – no derivatives)
Safe download

Values for this model

This model was generated by the Round to rectangular adapter template, with the following values:
Parameter Value
#1 cylinder outer diameter 106 mm (≃4 3/16 in)
#2 cylinder inlet length 100 mm (≃3 15/16 in)
#3 rectangle internal length 220 mm (≃8.66 in)
#4 rectangle internal height 110 mm (≃4.33 in)
#5 rectangle inlet length 70 mm (≃2 3/4 in)
#6 offset Z 55 mm (≃2.17 in)
#7 offset Y 20 mm (≃0.79 in)
#8 total length 280 mm (≃11.02 in)
#9 thickness 2 mm (≃0.08 in)
#10 chamfer no chamfer
Metadata Value
Cylinder internal diameter 102 mm (≃4.02 in)
illustration of the parameters
Parameter overview

  • If the chamfer option on the ends is enabled, the chamfer length is equal to half the thickness.
  • The stop at the bottom of the rectangular section has a width equal to half the thickness.

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 cylinder outer diameter diaC
#2 cylinder inlet length lentC
#3 rectangle internal length lenIR
#4 rectangle internal height heiIR
#5 rectangle inlet length lentR
#6 offset Z ofsZ
#7 offset Y ofsY
#8 total length lenT
#9 thickness thi
#10 chamfer cha
