Tubing adapter STL 3D file ⌀ 100–71 mm (Length: 190 mm) 📦#3070

STL Download STL
Create a new model:
from scratch search for a model
Tubing reducer ⌀100 mm to ⌀71 mm in STL format. Final length of this fitting is 190 mm. The thickness of the tubes is identical: 3 mm. The larger-diameter tube has a length of 50 mm, the smaller one of 70 mm. The ends are not rounded.
Generation date: 2025-11-05
3D Model Tubing adapter STL 3D file ⌀ 100–71 mm (Length: 190 mm)

3D model download

Free
  • inline-tube-adapter-lenA50mm-d_model3070-nb0_dd{id}.stl : 1.6 Mo
STL Mesh quality : Linear deflection 0.05 Angular deflection 0.05
No compliance warranty No compliance warranty
(attribution - commercial use allowed)
Safe download

Values for this model

This model was generated by the Inline tube adapter template, with the following values:
Parameter Value
#1 side A length 50 mm
#2 side A outer diameter 100 mm
#3 side A thickness 3 mm
#4 side B length 70 mm
#5 side B outer diameter 71 mm
#6 side B thickness 3 mm
#7 transition length 70 mm
#8 axis offset 0 mm
#9 ends fillet no fillet
Metadata Value
inner diameter (side A) 94 mm
inner diameter (side B) 65 mm
total length 190 mm
illustration of the parameters
Parameter overview

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 side A length lenA
#2 side A outer diameter diA
#3 side A thickness thA
#4 side B length lenB
#5 side B outer diameter diB
#6 side B thickness thB
#7 transition length tra
#8 axis offset ofs
#9 ends fillet fil

Related 3D models

To search for a model based on your own parameters, go to the template page Inline tube adapter

Tube adapter STL 3D file ⌀ 150–75 mm (Length: 150 mm) (📦 #1797)

1 object(s) - format STL
Tube adapter STL 3D file ⌀ 150–75 mm (Length: 150 mm)
Straight tube reducer ⌀150 mm to ⌀75 mm in STL format. Total length of this sleeve is 150 mm. The thickness of the tubes is identical: 3 mm. The larger-diameter tube has a length of 40 mm, the smaller one of 40 mm as well. The ends are not rounded.
Parameter Value Unit
side A length 40 mm
side A outer diameter 150 mm
side A thickness 3 mm
side B length 40 mm
side B outer diameter 75 mm
side B thickness 3 mm
transition length 70 mm
axis offset 0 mm
ends fillet no fillet

Tube adapter STL 3D file ⌀ 150–96 mm (Length: 150 mm) (📦 #1468)

1 object(s) - format STL
Tube adapter STL 3D file ⌀ 150–96 mm (Length: 150 mm)
Straight sleeve ⌀150 mm to ⌀96 mm in STL format. Length of this junction is 150 mm. The thickness of the tubes is identical: 3 mm. The larger-diameter tube has a sleeve length of 50 mm, the smaller one of 50 mm as well. The ends have no fillet.
Parameter Value Unit
side A length 50 mm
side A outer diameter 150 mm
side A thickness 3 mm
side B length 50 mm
side B outer diameter 96 mm
side B thickness 3 mm
transition length 50 mm
axis offset 0 mm
ends fillet no fillet

Tube adapter STL 3D file ⌀ 100–60 mm (Length: 180 mm) (📦 #1414)

1 object(s) - format STL
Tube adapter STL 3D file ⌀ 100–60 mm (Length: 180 mm)
Tube junction ⌀100 mm to ⌀60 mm in STL format. Total length of this junction is 180 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a sleeve length of 60 mm, the smaller one of 60 mm as well. The ends feature an external fillet.
Parameter Value Unit
side A length 60 mm
side A outer diameter 100 mm
side A thickness 2 mm
side B length 60 mm
side B outer diameter 60 mm
side B thickness 2 mm
transition length 60 mm
axis offset 0 mm
ends fillet fillet on th...

Tube adapter STL 3D file ⌀ 80–66 mm (Length: 120 mm) (📦 #1998)

1 object(s) - format STL
Tube adapter STL 3D file ⌀ 80–66 mm (Length: 120 mm)
Inline tube reducer ⌀80 mm to ⌀66 mm in STL 3D format. Final length of this sleeve is 120 mm. The larger-diameter tube has a thickness of 3 mm and a length of 40 mm. The smaller-diameter tube has a thickness of 2.5 mm and a length of 30 mm. The ends have no fillet.
Parameter Value Unit
side A length 40 mm
side A outer diameter 80 mm
side A thickness 3 mm
side B length 30 mm
side B outer diameter 66 mm
side B thickness 2.5 mm
transition length 50 mm
axis offset 0 mm
ends fillet no fillet

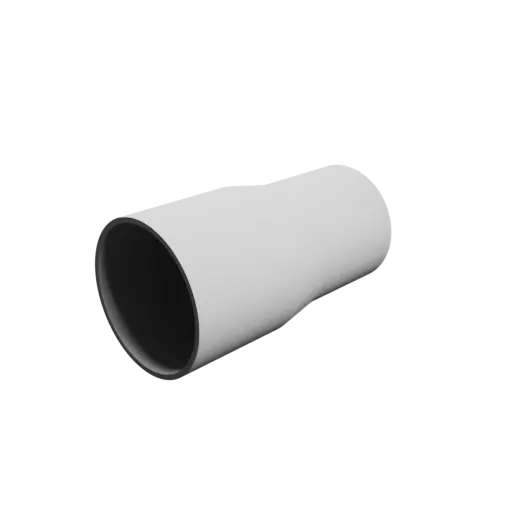

Tube adapter STL 3D file ⌀ 86–75 mm (Length: 160 mm) (📦 #3133)

1 object(s) - format STL
Tube adapter STL 3D file ⌀ 86–75 mm (Length: 160 mm)
Straight tubing adapter ⌀86 mm to ⌀75 mm in STL format. Final length of this junction is 160 mm. The thickness of the tubes is identical: 3 mm. The larger-diameter tube has a sleeve length of 70 mm, the smaller one of 60 mm. The ends have no fillet.
Parameter Value Unit
side A length 70 mm
side A outer diameter 86 mm
side A thickness 3 mm
side B length 60 mm
side B outer diameter 75 mm
side B thickness 3 mm
transition length 30 mm
axis offset 0 mm
ends fillet no fillet

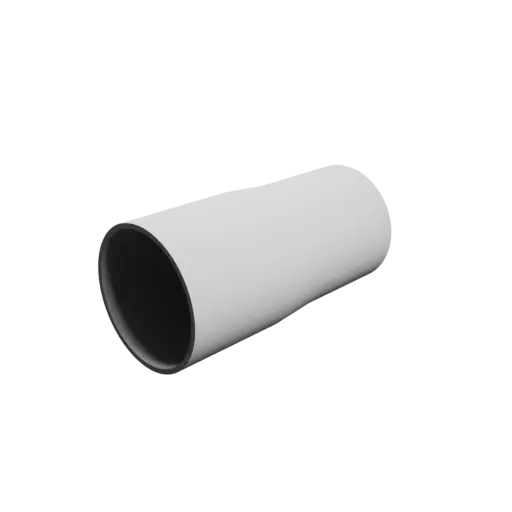

Tube adapter STL 3D file ⌀ 80–75 mm (Length: 160 mm) (📦 #3132)
