Tubing adapter STL 3D file ⌀ 65–47 mm (Length: 80 mm) 📦#3046
Generation date: 2025-11-04
3D model download
Free- inline-tube-adapter-lenA30mm-d_model3046-nb0_dd{id}.stl : 3.7 Mo
STL
Mesh quality :
0.05
0.05
No compliance warranty
License: CC BY - Creative commons
(attribution - commercial use allowed)
Safe download
Values for this model
This model was generated by the Inline tube adapter template, with the following values:
| Parameter | Value | |
|---|---|---|
| #1 | side A length | 30 mm |
| #2 | side A outer diameter | 65 mm |
| #3 | side A thickness | 2 mm |
| #4 | side B length | 30 mm |
| #5 | side B outer diameter | 47 mm |
| #6 | side B thickness | 2 mm |
| #7 | transition length | 20 mm |
| #8 | axis offset | 0 mm |
| #9 | ends fillet | no fillet |
| Metadata | Value |
|---|---|
| inner diameter (side A) | 61 mm |
| inner diameter (side B) | 43 mm |
| total length | 80 mm |
Parameter overview
Labels are used in the naming of the downloaded 3D files.
| Parameter | Label |
|---|---|
| #1 side A length | lenA |
| #2 side A outer diameter | diA |
| #3 side A thickness | thA |
| #4 side B length | lenB |
| #5 side B outer diameter | diB |
| #6 side B thickness | thB |
| #7 transition length | tra |
| #8 axis offset | ofs |
| #9 ends fillet | fil |
Related 3D models
To search for a model based on your own parameters, go to the template page Inline tube adapter
Tubing adapter STL file ⌀ 69–46 mm (Length: 85 mm) (📦 #2626)
1 object(s) - format STL
Inline tube coupler ⌀69 mm to ⌀46 mm in STL format. Total length of this adapter is 85 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a length of 30 mm, the smaller one of 30 mm as well. The ends are not rounded.
| Parameter | Value | Unit |
|---|---|---|
| side A length | 30 | mm |
| side A outer diameter | 69 | mm |
| side A thickness | 2 | mm |
| side B length | 30 | mm |
| side B outer diameter | 46 | mm |
| side B thickness | 2 | mm |
| transition length | 25 | mm |
| axis offset | 0 | mm |
| ends fillet | no fillet |
Tube adapter STL 3D file ⌀ 70–49 mm (Length: 85 mm) (📦 #2632)
1 object(s) - format STL
Inline tubing adapter ⌀70 mm to ⌀49 mm in STL 3D format. Length of this connector is 85 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a length of 30 mm, the smaller one of 30 mm as well. The ends are raw.
| Parameter | Value | Unit |
|---|---|---|
| side A length | 30 | mm |
| side A outer diameter | 70 | mm |
| side A thickness | 2 | mm |
| side B length | 30 | mm |
| side B outer diameter | 49 | mm |
| side B thickness | 2 | mm |
| transition length | 25 | mm |
| axis offset | 0 | mm |
| ends fillet | no fillet |
Tube adapter STL file ⌀ 80–50 mm (Length: 80 mm) (📦 #1575)
1 object(s) - format STL
Tube reducer ⌀80 mm to ⌀50 mm in STL 3D format. Final length of this coupler is 80 mm. The thickness of the tubes is identical: 2.5 mm. The larger-diameter tube has a length of 30 mm, the smaller one of 30 mm as well. The ends are raw.
| Parameter | Value | Unit |
|---|---|---|
| side A length | 30 | mm |
| side A outer diameter | 80 | mm |
| side A thickness | 2.5 | mm |
| side B length | 30 | mm |
| side B outer diameter | 50 | mm |
| side B thickness | 2.5 | mm |
| transition length | 20 | mm |
| axis offset | 0 | mm |
| ends fillet | no fillet |
Tube adapter STL file ⌀ 80–60 mm (Length: 60 mm) (📦 #1882)
1 object(s) - format STL
Tube connector ⌀80 mm to ⌀60 mm in STL 3D format. Final length of this connector is 60 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a length of 20 mm, the smaller one of 20 mm as well. The ends are raw.
| Parameter | Value | Unit |
|---|---|---|
| side A length | 20 | mm |
| side A outer diameter | 80 | mm |
| side A thickness | 2 | mm |
| side B length | 20 | mm |
| side B outer diameter | 60 | mm |
| side B thickness | 2 | mm |
| transition length | 20 | mm |
| axis offset | 0 | mm |
| ends fillet | no fillet |
Tube adapter STL file ⌀ 66–40 mm (Length: 75 mm) (📦 #2359)
1 object(s) - format STL
Diameter adapter ⌀66 mm to ⌀40 mm in STL format. Total length of this coupler is 75 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a length of 40 mm, the smaller one of 30 mm. The ends are not rounded.
| Parameter | Value | Unit |
|---|---|---|
| side A length | 40 | mm |
| side A outer diameter | 66 | mm |
| side A thickness | 2 | mm |
| side B length | 30 | mm |
| side B outer diameter | 40 | mm |
| side B thickness | 2 | mm |
| transition length | 5 | mm |
| axis offset | 0 | mm |
| ends fillet | no fillet |

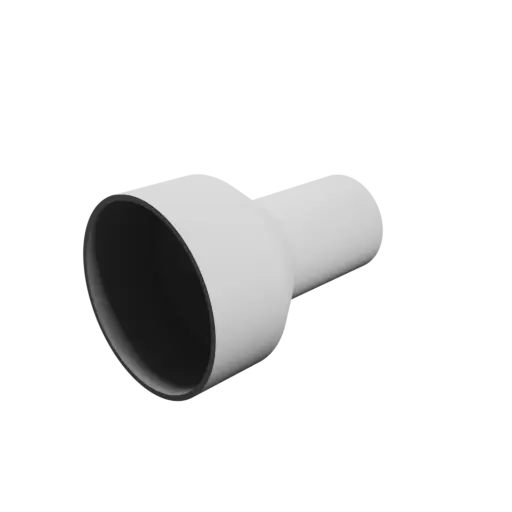

Tube adapter STL 3D file ⌀ 68–39 mm (Length: 100 mm) (📦 #3160)
