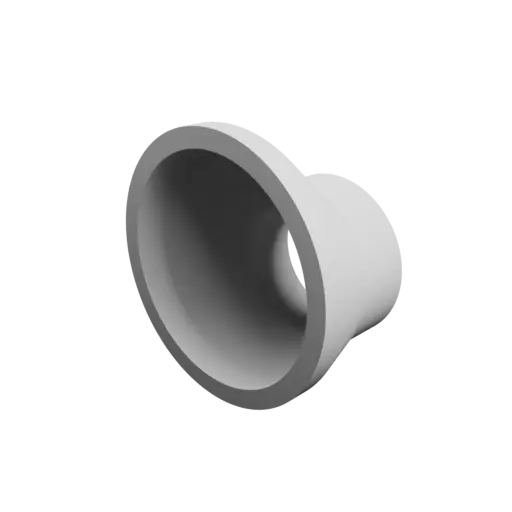

Tubing adapter STL 3D file ⌀ 108–64 mm (Length: 45 mm) 📦#2609
Generation date: 2025-10-20
3D model download
Free- inline-tube-adapter-lenA10mm-d_model2609-nb0_dd{id}.stl : 7.2 Mo
STL
Mesh quality :
0.05
0.05
No compliance warranty
License: CC BY - Creative commons
(attribution - commercial use allowed)
Safe download
Values for this model
This model was generated by the Inline tube adapter template, with the following values:
| Parameter | Value | |
|---|---|---|
| #1 | side A length | 10 mm |
| #2 | side A outer diameter | 108 mm |
| #3 | side A thickness | 8 mm |
| #4 | side B length | 20 mm |
| #5 | side B outer diameter | 64 mm |
| #6 | side B thickness | 8 mm |
| #7 | transition length | 15 mm |
| #8 | axis offset | 20 mm |
| #9 | ends fillet | no fillet |
| Metadata | Value |
|---|---|
| inner diameter (side A) | 92 mm |
| inner diameter (side B) | 48 mm |
| total length | 45 mm |
Representation of the parameters
Labels are used in the naming of the downloaded 3D files.
| Parameter | Label |
|---|---|
| #1 side A length | lenA |
| #2 side A outer diameter | diA |
| #3 side A thickness | thA |
| #4 side B length | lenB |
| #5 side B outer diameter | diB |
| #6 side B thickness | thB |
| #7 transition length | tra |
| #8 axis offset | ofs |
| #9 ends fillet | fil |
