Custom Tube adapter STL file ⌀ 66–40 mm (Length: 75 mm) 📦#2359

STL Download STL 1
Create a new model:
from scratch search for a model
Diameter adapter ⌀66 mm to ⌀40 mm in STL format. Total length of this coupler is 75 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a length of 40 mm, the smaller one of 30 mm. The ends are not rounded.
Generation date: 2025-10-10

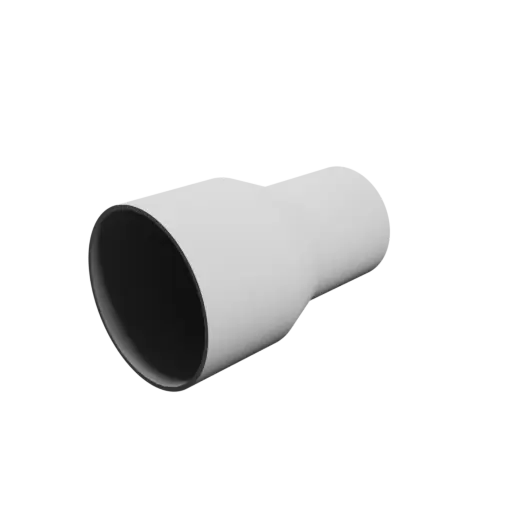

3D Model Tube adapter STL file ⌀ 66–40 mm (Length: 75 mm)

3D model download

Free
  • inline-tube-adapter-lenA40mm-d_model2359-nb0_dd{id}.stl : 7 Mo
STL Mesh quality : Linear deflection 0.05 Angular deflection 0.05
No compliance warranty No compliance warranty
(attribution - commercial use allowed)
Safe download
Instant .zip download — no email, no account

Values for this model

This model was generated by the Inline tube adapter template, with the following values:
Parameter Value
#1 side A length 40 mm (≃1 9/16 in)
#2 side A outer diameter 66 mm (≃2.60 in)
#3 side A thickness 2 mm (≃0.08 in)
#4 side B length 30 mm (≃1 3/16 in)
#5 side B outer diameter 40 mm (≃1 9/16 in)
#6 side B thickness 2 mm (≃0.08 in)
#7 transition length 5 mm (≃3/16 in)
#8 axis offset 0 mm (0 in)
#9 ends fillet no fillet
Metadata Value
inner diameter (side A) 62 mm (≃2 7/16 in)
inner diameter (side B) 36 mm (≃1.42 in)
total length 75 mm (≃2 15/16 in)
illustration of the parameters
Parameter overview

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 side A length lenA
#2 side A outer diameter diA
#3 side A thickness thA
#4 side B length lenB
#5 side B outer diameter diB
#6 side B thickness thB
#7 transition length tra
#8 axis offset ofs
#9 ends fillet fil
