Custom Tube adapter STL 3D file ⌀ 124–103 mm (Length: 120 mm) 📦#2269

STL Download STL 1
Create a new model:
from scratch search for a model
Straight sleeve ⌀124 mm to ⌀103 mm in STL format. Total length of this coupler is 120 mm. The thickness of the tubes is identical: 6 mm. The larger-diameter tube has a length of 40 mm, the smaller one of 40 mm as well. The ends are rounded to make tube connection easier.
Generation date: 2025-10-07

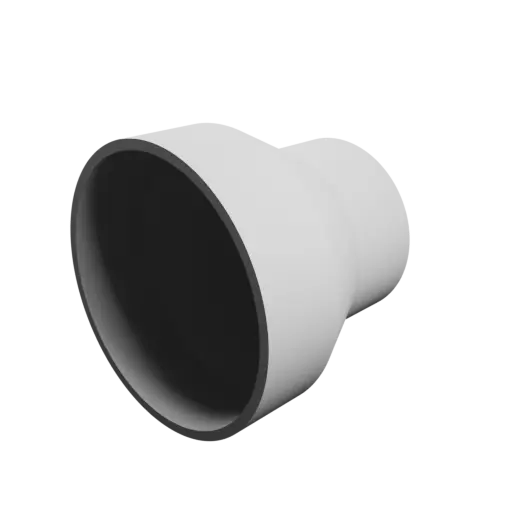

3D Model Tube adapter STL 3D file ⌀ 124–103 mm (Length: 120 mm)

3D model download

Free
  • inline-tube-adapter-lenA40mm-d_model2269-nb0_dd{id}.stl : 7.4 Mo
STL Mesh quality : Linear deflection 0.05 Angular deflection 0.05
No compliance warranty No compliance warranty
(attribution - commercial use allowed)
Safe download
Instant .zip download — no email, no account

Values for this model

This model was generated by the Inline tube adapter template, with the following values:
Parameter Value
#1 side A length 40 mm (≃1 9/16 in)
#2 side A outer diameter 124 mm (≃4 7/8 in)
#3 side A thickness 6 mm (≃1/4 in)
#4 side B length 40 mm (≃1 9/16 in)
#5 side B outer diameter 103 mm (≃4 1/16 in)
#6 side B thickness 6 mm (≃1/4 in)
#7 transition length 40 mm (≃1 9/16 in)
#8 axis offset 0 mm (0 in)
#9 ends fillet fillet on both inside
and outside
Metadata Value
inner diameter (side A) 112 mm (≃4.41 in)
inner diameter (side B) 91 mm (≃3.58 in)
total length 120 mm (≃4.72 in)
illustration of the parameters
Parameter overview

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 side A length lenA
#2 side A outer diameter diA
#3 side A thickness thA
#4 side B length lenB
#5 side B outer diameter diB
#6 side B thickness thB
#7 transition length tra
#8 axis offset ofs
#9 ends fillet fil
