Custom Tube adapter STL 3D file ⌀ 123–58 mm (Length: 70 mm) 📦#2028

STL Download STL 1
Create a new model:
from scratch search for a model
Inline tube junction ⌀123 mm to ⌀58 mm in STL 3D format. Final length of this junction is 70 mm. The larger-diameter tube has a thickness of 5 mm and a length of 25 mm. The smaller-diameter tube has a thickness of 4 mm and a length of 25 mm as well. The ends feature a fillet to make tube connection easier.
Generation date: 2025-09-27
3D Model Tube adapter STL 3D file ⌀ 123–58 mm (Length: 70 mm)

3D model download

Free
  • inline-tube-adapter-lenA25mm-d_model2028-nb0_dd{id}.stl : 12.9 Mo
STL Mesh quality : Linear deflection 0.05 Angular deflection 0.05
No compliance warranty No compliance warranty
(attribution - commercial use allowed)
Safe download
Instant .zip download — no email, no account

Values for this model

This model was generated by the Inline tube adapter template, with the following values:
Parameter Value
#1 side A length 25 mm (≃0.98 in)
#2 side A outer diameter 123 mm (≃4.84 in)
#3 side A thickness 5 mm (≃3/16 in)
#4 side B length 25 mm (≃0.98 in)
#5 side B outer diameter 58 mm (≃2.28 in)
#6 side B thickness 4 mm (≃0.16 in)
#7 transition length 20 mm (≃0.79 in)
#8 axis offset 0 mm (0 in)
#9 ends fillet fillet on both inside
and outside
Metadata Value
inner diameter (side A) 113 mm (≃4 7/16 in)
inner diameter (side B) 50 mm (≃1.97 in)
total length 70 mm (≃2 3/4 in)
illustration of the parameters
Parameter overview

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 side A length lenA
#2 side A outer diameter diA
#3 side A thickness thA
#4 side B length lenB
#5 side B outer diameter diB
#6 side B thickness thB
#7 transition length tra
#8 axis offset ofs
#9 ends fillet fil

Related 3D models

To search for a model based on your own parameters, go to the template page Inline tube adapter

Tubing adapter STL 3D file ⌀ 126–80 mm (Length: 97 mm) (📦 #2602)

1 object(s) - format STL
Tubing adapter STL 3D file ⌀ 126–80 mm (Length: 97 mm)
Inline tube junction ⌀126 mm to ⌀80 mm in STL format. Length of this junction is 97 mm. The thickness of the tubes is identical: 5 mm. The larger-diameter tube has a sleeve length of 27 mm, the smaller one of 30 mm. The ends are rounded on the inside to make tube connection easier.
Parameter Value Unit
side A length 27 mm
side A outer diameter 126 mm
side A thickness 5 mm
side B length 30 mm
side B outer diameter 80 mm
side B thickness 5 mm
transition length 40 mm
axis offset 0 mm
ends fillet fillet on th...

Tube adapter STL 3D file ⌀ 123–58 mm (Length: 120 mm) (📦 #2866)

1 object(s) - format STL
Tube adapter STL 3D file ⌀ 123–58 mm (Length: 120 mm)
Straight tube adapter ⌀123 mm to ⌀58 mm in STL format. Length of this reducer is 120 mm. The thickness of the tubes is identical: 5 mm. The larger-diameter tube has a sleeve length of 50 mm, the smaller one of 50 mm as well. The two axes of the tubes are off-center by 4.9 mm. The ends feature a fillet to facilitate the connection of the two tubes.
Parameter Value Unit
side A length 50 mm
side A outer diameter 123 mm
side A thickness 5 mm
side B length 50 mm
side B outer diameter 58 mm
side B thickness 5 mm
transition length 20 mm
axis offset 4.9 mm
ends fillet fillet on bo...

Tube adapter STL file ⌀ 117–103 mm (Length: 90 mm) (📦 #2262)

1 object(s) - format STL
Tube adapter STL file ⌀ 117–103 mm (Length: 90 mm)
Tube adapter ⌀117 mm to ⌀103 mm in STL 3D format. Length of this coupler is 90 mm. The thickness of the tubes is identical: 5 mm. The larger-diameter tube has a length of 40 mm, the smaller one of 40 mm as well. The ends have a fillet to make tube connection easier.
Parameter Value Unit
side A length 40 mm
side A outer diameter 117 mm
side A thickness 5 mm
side B length 40 mm
side B outer diameter 103 mm
side B thickness 5 mm
transition length 10 mm
axis offset 0 mm
ends fillet fillet on bo...

Tube adapter STL file ⌀ 51–35 mm (Length: 75 mm) (📦 #1289)

1 object(s) - format STL
Tube adapter STL file ⌀ 51–35 mm (Length: 75 mm)
Tube coupler ⌀51 mm to ⌀35 mm in STL format. Final length of this reducer is 75 mm. The larger-diameter tube has a thickness of 6 mm and a length of 30 mm. The smaller-diameter tube has a thickness of 3 mm and a length of 30 mm as well. The ends are rounded to ease the connection.
Parameter Value Unit
side A length 30 mm
side A outer diameter 51 mm
side A thickness 6 mm
side B length 30 mm
side B outer diameter 35 mm
side B thickness 3 mm
transition length 15 mm
axis offset 0 mm
ends fillet fillet on bo...

Tubing adapter STL 3D file ⌀ 150–90 mm (Length: 55 mm) (📦 #2699)

1 object(s) - format STL
Tubing adapter STL 3D file ⌀ 150–90 mm (Length: 55 mm)
Straight tubing adapter ⌀150 mm to ⌀90 mm in STL 3D format. Total length of this connector is 55 mm. The thickness of the tubes is identical: 3 mm. The larger-diameter tube has a sleeve length of 20 mm, the smaller one of 20 mm as well. The ends are rounded to ease the connection.
Parameter Value Unit
side A length 20 mm
side A outer diameter 150 mm
side A thickness 3 mm
side B length 20 mm
side B outer diameter 90 mm
side B thickness 3 mm
transition length 15 mm
axis offset 0 mm
ends fillet fillet on bo...

Tube adapter STL file ⌀ 98–80 mm (Length: 98 mm) (📦 #2897)

1 object(s) - format STL
Tube adapter STL file ⌀ 98–80 mm (Length: 98 mm)
Tubing reducer ⌀98 mm to ⌀80 mm in STL format. Total length of this adapter is 98 mm. The thickness of the tubes is identical: 3 mm. The larger-diameter tube has a sleeve length of 30 mm, the smaller one of 28 mm. The ends are rounded to facilitate the connection of the two tubes.
Parameter Value Unit
side A length 30 mm
side A outer diameter 98 mm
side A thickness 3 mm
side B length 28 mm
side B outer diameter 80 mm
side B thickness 3 mm
transition length 40 mm
axis offset 0 mm
ends fillet fillet on bo...

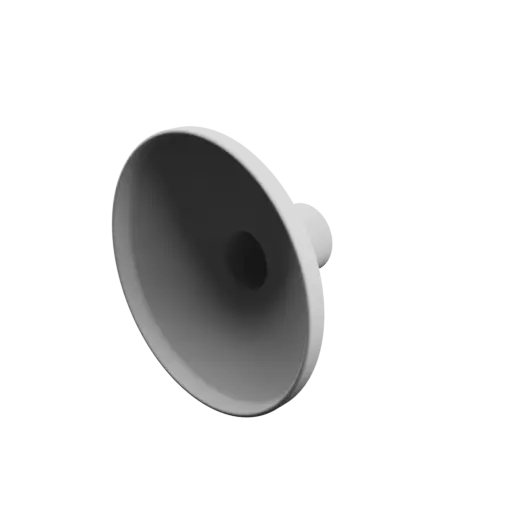

Tube adapter STL 3D file ⌀ 150–40 mm (Length: 83 mm) (📦 #3702)
