Tube adapter STL 3D file ⌀ 100–53 mm (Length: 100 mm) 📦#1600

STL Download STL
Create a new model:
from scratch search for a model

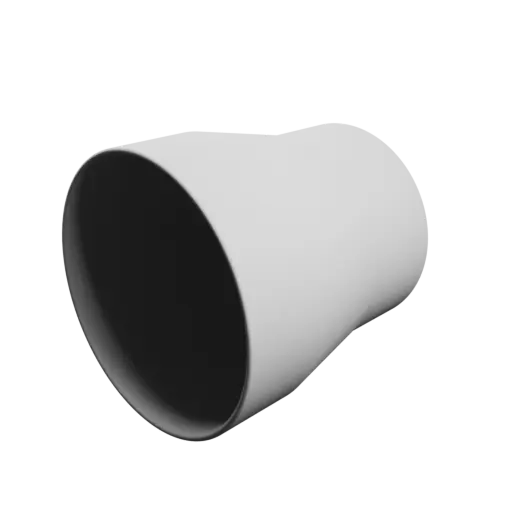

Inline fitting ⌀100 mm to ⌀53 mm in STL 3D format. Final length of this connector is 100 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a sleeve length of 30 mm, the smaller one of 30 mm as well. The ends feature an internal fillet to facilitate the connection of the two tubes.
Generation date: 2025-09-07
3D Model Tube adapter STL 3D file ⌀ 100–53 mm (Length: 100 mm)

3D model download

Free
  • inline-tube-adapter-lenA30mm-d_model1600-nb0_dd{id}.stl : 7 Mo
STL Mesh quality : Linear deflection 0.05 Angular deflection 0.05
No compliance warranty No compliance warranty
(attribution - commercial use allowed)
Safe download

Values for this model

This model was generated by the Inline tube adapter template, with the following values:
Parameter Value
#1 side A length 30 mm
#2 side A outer diameter 100 mm
#3 side A thickness 2 mm
#4 side B length 30 mm
#5 side B outer diameter 53 mm
#6 side B thickness 2 mm
#7 transition length 40 mm
#8 axis offset 0 mm
#9 ends fillet fillet on the inside
illustration of the parameters
Representation of the parameters

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 side A length lenA
#2 side A outer diameter diA
#3 side A thickness thA
#4 side B length lenB
#5 side B outer diameter diB
#6 side B thickness thB
#7 transition length tra
#8 axis offset ofs
#9 ends fillet fil
