Round air vent ∅ 90 mm, slat angle: 35° with central reinforcement 📦#1558

Name: STL 3D File Round air vent ∅ 90 mm, slat angle: 35° with central reinforcement #1558
Brand: iteration3d
SKU: 1558
Availability: InStock

STL Download STL

3D file of a round vent cover for air circulation in STL format. Its male diameter measures 90 mm. The slats have an angle of 35° and a high thickness of 2.4 mm. A vertical reinforcement strengthens the whole structure. This vent cover features a prominent flange of 18 mm.

Generation date: 2025-09-04

3D Model Round air vent ∅ 90 mm, slat angle: 35° with central reinforcement

3D model download

Free

Download format: zip : 3.8 Mo (1 file(s))

round-air-vent-dia90mm-slD35d-_model1558-nb0_dd{id}.stl : 3.8 Mo

STL Mesh quality : 0.1 0.1

License: CC BY-NC-ND - Creative commons

(attribution - non commercial use - no derivatives)

Values for this model

This model was generated by the Round air vent grill template, with the following values:

	Template parameter	Value	Unit	Label
#1	male diameter	90	mm	dia
#2	slat angle	35	°	slD
#3	slat thickness	2.4	mm	slT
#4	flange width	18	mm	flW
#5	central reinforcement	1		renf

Representation of the parameters

See 3d modeling details

The total thickness of the vent is 25 mm.
Whatever the parameters, the slats never overlap. This ensures an optimal airflow. At the same time, the slats form an almost opaque screen along the axis.
The slats are actually shaped as parallelograms rather than rectangles. This ensures better printability.
The slats and the central reinforcement (if present) feature a 0.40 mm fillet on all edges. This improves airflow and prevents potential whistling.
The collar, if present, is 3 mm thick and has a 2 mm fillet for aesthetic purposes.
The male insertion area is 3 mm thick and has a 1 mm fillet on both edges to facilitate insertion into the intended slot.
The central reinforcement, if present, is 2 mm thick and spans the entire projected width of the slats.

Related 3D models

To search for a model based on your own parameters, go to the template page Round air vent grill

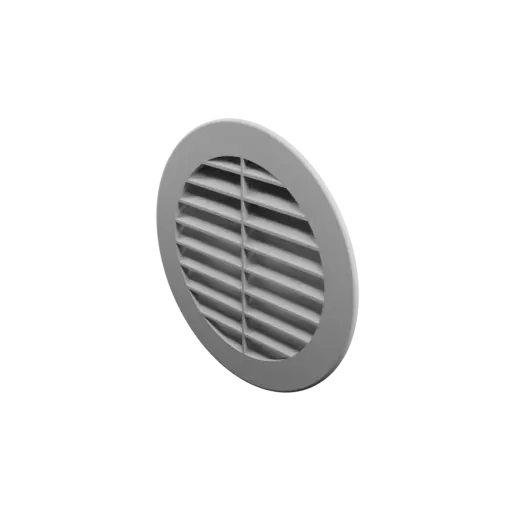

Round air vent ∅ 118 mm, slat angle: 45° with central reinforcement (📦 #1413)

1 object(s) - format STL

3D model Round air vent ∅ 118 mm, slat angle: 45° with central reinforcement

3D design of a round vent cover for air circulation in STL format. Its insertion diameter measures 118 mm. The slats have an angle of 45° and a high thickness of 2.4 mm. A central reinforcement strengthens the whole structure. This 3D vent grille has a prominent flange of 20 mm.

Parameter	Value	Unit
male diameter	118	mm
slat angle	45	°
slat thickness	2.4	mm
flange width	20	mm
central reinforcement	1

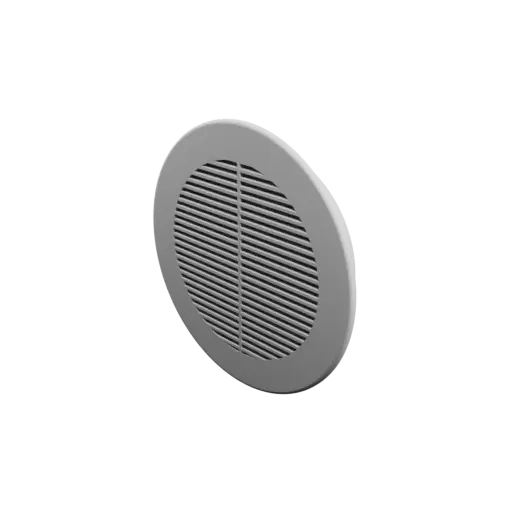

Round air vent ∅ 90 mm, slat angle: 35° with central reinforcement (📦 #1492)
