Custom Tubing adapter STL file ⌀ 100–60 mm (Length: 160 mm) 📦#11622

STL Download STL 1
Create a new model expert
from scratch search for a model
Inline sleeve ⌀100 mm to ⌀60 mm in STL 3D format. Length of this adapter is 160 mm. The thickness of the tubes is identical: 3 mm. The larger-diameter tube has a length of 30 mm, the smaller one of 30 mm as well. The ends have a fillet.
Generation date: 2026-09-11
3D Model Tubing adapter STL file ⌀ 100–60 mm (Length: 160 mm)

3D model download

Free
  • inline-tube-adapter-lenA30mm-d_model11622-nb0_dd{id}.stl : 6.9 Mo
STL Mesh quality : Linear deflection 0.05 Angular deflection 0.05
No compliance warranty No compliance warranty
(attribution - commercial use allowed)
Safe download
Instant .zip download — no email, no account

Values for this model

This model was generated by the Inline tube adapter template, with the following values:
Parameter Value
#1 side A length 30 mm (≃1 3/16 in)
#2 side A outer diameter 100 mm (≃3 15/16 in)
#3 side A thickness 3 mm (≃1/8 in)
#4 side B length 30 mm (≃1 3/16 in)
#5 side B outer diameter 60 mm (≃2 3/8 in)
#6 side B thickness 3 mm (≃1/8 in)
#7 transition length 100 mm (≃3 15/16 in)
#8 axis offset 0 mm (0 in)
#9 ends fillet fillet on both inside
and outside
Metadata Value
inner diameter (side A) 94 mm (≃3 11/16 in)
inner diameter (side B) 54 mm (≃2 1/8 in)
total length 160 mm (≃6 5/16 in)
illustration of the parameters
Parameter overview

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 side A length lenA
#2 side A outer diameter diA
#3 side A thickness thA
#4 side B length lenB
#5 side B outer diameter diB
#6 side B thickness thB
#7 transition length tra
#8 axis offset ofs
#9 ends fillet fil

Related 3D models

To search for a model based on your own parameters, go to the template page Inline tube adapter

Tubing adapter STL 3D file ⌀ 110–85 mm (Length: 175 mm) (📦 #4996)

1 object(s) - format STL
Tubing adapter STL 3D file ⌀ 110–85 mm (Length: 175 mm)
Inline sleeve ⌀110 mm to ⌀85 mm in STL format. Length of this reducer is 175 mm. The thickness of the tubes is identical: 3 mm. The larger-diameter tube has a sleeve length of 25 mm, the smaller one of 50 mm. The ends have a fillet to make tube connection easier.
Parameter Value Unit
side A length 25 mm
side A outer diameter 110 mm
side A thickness 3 mm
side B length 50 mm
side B outer diameter 85 mm
side B thickness 3 mm
transition length 100 mm
axis offset 0 mm
ends fillet fillet on bo...

Tubing adapter STL 3D file ⌀ 110–85 mm (Length: 97 mm) (📦 #4998)

1 object(s) - format STL
Tubing adapter STL 3D file ⌀ 110–85 mm (Length: 97 mm)
Inline tube reducer ⌀110 mm to ⌀85 mm in STL format. Total length of this connector is 97 mm. The thickness of the tubes is identical: 3 mm. The larger-diameter tube has a length of 12 mm, the smaller one of 25 mm. The ends have a fillet to facilitate the connection of the two tubes.
Parameter Value Unit
side A length 12 mm
side A outer diameter 110 mm
side A thickness 3 mm
side B length 25 mm
side B outer diameter 85 mm
side B thickness 3 mm
transition length 60 mm
axis offset 0 mm
ends fillet fillet on bo...

Tube adapter STL 3D file ⌀ 100–50 mm (Length: 140 mm) (📦 #1450)

1 object(s) - format STL
Tube adapter STL 3D file ⌀ 100–50 mm (Length: 140 mm)
Tube reducer ⌀100 mm to ⌀50 mm in STL format. Final length of this junction is 140 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a length of 40 mm, the smaller one of 40 mm as well. The ends are rounded to make tube connection easier.
Parameter Value Unit
side A length 40 mm
side A outer diameter 100 mm
side A thickness 2 mm
side B length 40 mm
side B outer diameter 50 mm
side B thickness 2 mm
transition length 60 mm
axis offset 0 mm
ends fillet fillet on bo...

Tubing adapter STL file ⌀ 82–60 mm (Length: 138 mm) (📦 #5106)

1 object(s) - format STL
Tubing adapter STL file ⌀ 82–60 mm (Length: 138 mm)
Straight sleeve ⌀82 mm to ⌀60 mm in STL format. Length of this fitting is 138 mm. The thickness of the tubes is identical: 4 mm. The larger-diameter tube has a sleeve length of 38 mm, the smaller one of 40 mm. The ends are rounded to make tube connection easier.
Parameter Value Unit
side A length 38 mm
side A outer diameter 82 mm
side A thickness 4 mm
side B length 40 mm
side B outer diameter 60 mm
side B thickness 4 mm
transition length 60 mm
axis offset 0 mm
ends fillet fillet on bo...

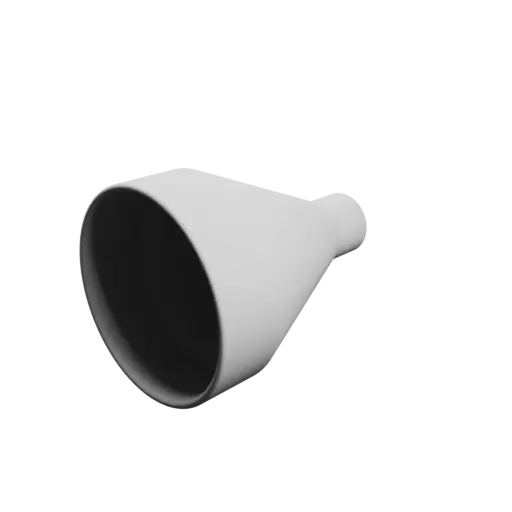

Tubing adapter STL file ⌀ 152–50 mm (Length: 205 mm) (📦 #11497)
