Multi compartment storage box 3D model #1062
1 object(s) - format STL
Loading...
◀
▶
Values for this model
| Parameter | Value | Unit | Label | |
|---|---|---|---|---|
| #1 | number of raws | 2 | nbR | |
| #2 | number of columns | 7 | nbC | |
| #3 | compartment length | 14 | mm | coL |
| #4 | compartment width | 14 | mm | coW |
| #5 | compartment height | 5 | mm | coH |
| #6 | wall thickness | 2 | mm | waT |
| #7 | compartment fillet (radius) | 2 | mm | coF |
Representation of the parameters
Notes:
The height of the compartments corresponds to their depth.
Parameter #7 compartment fillet (radius) applies to the base and sides of the compartments, not the top edges.
To get the total height of the box, apply the formula: coH + waT
3D model download
3D file(s) name:
multi-compartment-storage-box-nbR2-nbC7-coL14mm-coW14mm-coH5mm-waT2mm-coF2mm_model1062-nb0_dd{id}.stl
Download format: zip
Related 3D models
To search for a model based on specific values, go to the template page Multi compartment storage box.
3D model #1077
1 object(s)
- format
STL
This parametric multi-compartment box provides 12 compartments measuring 15.5×15.5×30mm each. External size are 107×37×32mm.
| Parameter | Value | Unit |
|---|---|---|
| number of raws | 2 | |
| number of columns | 6 | |
| compartment length | 15.5 | mm |
| compartment width | 15.5 | mm |
| compartment height | 30 | mm |
| wall thickness | 2 | mm |
| compartment fillet (radius) | 0.8 | mm |
3D model #1075
1 object(s)
- format
STL
This printable multi-compartment box features 12 slots measuring 15.5×15.5×30mm each. The total dimensions of the box are 107×37×32mm. The slots do not feature any fillet.
| Parameter | Value | Unit |
|---|---|---|
| number of raws | 2 | |
| number of columns | 6 | |
| compartment length | 15.5 | mm |
| compartment width | 15.5 | mm |
| compartment height | 30 | mm |
| wall thickness | 2 | mm |
| compartment fillet (radius) | 0 | mm |
3D model #1081
1 object(s)
- format
STL

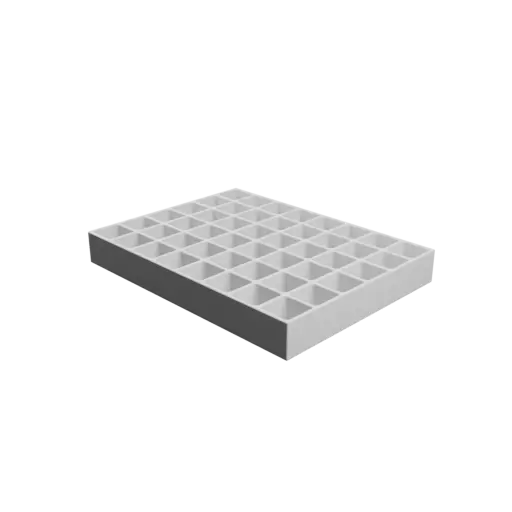

This STL 3D design of a storage box features 48 sections measuring 20×20×20mm each. The total dimensions are 178×134×22mm. A 2mm fillet applied to each compartment make it easier to grasp items stored in the compartments.
| Parameter | Value | Unit |
|---|---|---|
| number of raws | 6 | |
| number of columns | 8 | |
| compartment length | 20 | mm |
| compartment width | 20 | mm |
| compartment height | 20 | mm |
| wall thickness | 2 | mm |
| compartment fillet (radius) | 2 | mm |
